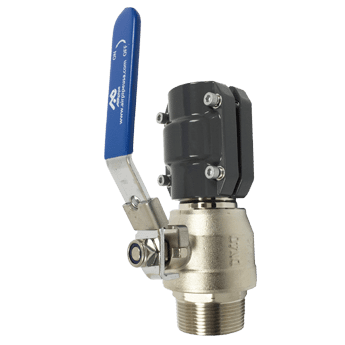

AIRpipe Brass Ball Vave Male BSP Threaded DN20 to DN63
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Product Description
Enhance flow control in your compressed air distribution system with the AIRpipe Brass Ball Valve Male BSP Threaded DN20 to DN63, a high-quality inline valve designed for seamless integration into modular aluminum piping networks. Crafted for industrial and commercial use, this lockable brass valve offers quarter-turn operation for quick shut-off, ensuring safety and efficiency while preventing unauthorized access. Available in sizes from DN20 to DN63 for versatile applications.
Key Features:
- Double Male BSP Threads: Threaded ends sized for optimal flow (1/2" BSP for DN20/DN25; 2 1/2" BSP for DN63) for straightforward inline connections to pipes, hoses, or fittings—compatible across the DN20 to DN63 aluminum pipe range.
- Lockable Brass Handle: Secure locking mechanism with ergonomic handle allows for tamper-proof operation and effortless full-flow or shut-off control.
- Corrosion-Resistant Brass Construction: Durable, non-corrosive material withstands demanding environments, providing longevity and resistance to wear in humid or chemical-exposed areas.
- High-Flow Design: Minimal pressure drop ensures optimal airflow, reducing energy consumption in pneumatic tools and machinery.
- High-Pressure Performance: Rated up to 300 PSI (model-specific variations apply), ideal for robust industrial applications.
- Wide Temperature Range: Functions reliably from -4°F to +176°F (-20°C to +80°C), suitable for varied operational conditions.
Technical Specifications:
| Specification | Details |
|---|---|
| Pipe Compatibility | DN20 (20mm / 3/4"), DN25 (25mm / 1"), DN63 (63mm / 2.5") aluminum pipe |
| Thread Size | Two Male BSP (1/2" for DN20/DN25; 2 1/2" for DN63) |
| Material | Brass body and handle |
| Pressure Rating | Up to 300 PSI (ISO 8573-1 certified) |
| Temperature Range | -4°F to +176°F (-20°C to +80°C) |
| Weight | Approx. 0.4-0.6 lbs (DN20/DN25); 2.5-3 lbs (DN63) |
| Certifications | ISO 8573-1 (compressed air quality) |
As a core component of the innovative AIRpipe system, this brass ball valve supports push-to-connect installations that are up to 5x faster than conventional methods. Ideal for workshops, manufacturing plants, and automotive facilities, it enables precise zone isolation and maintenance without system disruption, promoting energy savings and air quality. The male BSP threading ensures compatibility with international standards for direct male-to-female connections.
Variants Available:
- DN20 (20mm / 3/4" pipe) Double 1/2" Male BSP Threaded
- DN25 (25mm / 1" pipe) Double 1/2" Male BSP Threaded
- DN40 (40mm / 1 1/2" pipe) Double 1 1/2" Male BSP Threaded
- DN50 (50mm / 2" pipe) Double 2" Male BSP Threaded
- DN63 (63mm / 2.5" pipe) Double 2 1/2" Male BSP Threaded
Secure your compressed air lines with proven reliability. Questions? Contact our experts for system integration advice!
