Product Description

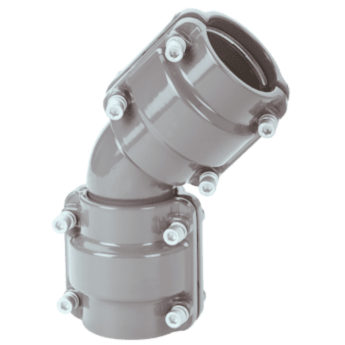

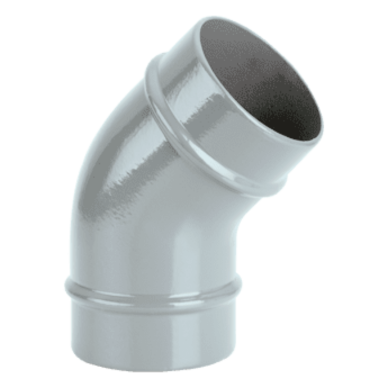

Achieve precise directional changes with minimal flow disruption using the AIRpipe 45° Elbow (DN20 to DN200) – a streamlined, high-flow fitting that enables efficient 45-degree bends in compressed air, vacuum, and inert gas systems. Machined from lightweight aluminum alloy and fitted with reliable EPDM seals, these elbows provide a smooth, full-bore interior to reduce turbulence, pressure loss, and energy waste in compact or angled routing scenarios.

Leveraging the system's patented quick-connect mechanism with grab ring and O-ring technology, installation is fast and foolproof: chamfer the pipes, push to connect, and secure the nut without tools for a durable, reusable joint that resists vibrations and thermal expansion. Suited for workshops, manufacturing lines, and service areas where space is at a premium, they simplify layouts compared to rigid or welded alternatives.

Key Features:

• Flexible Size Options: Matches DN20 (3/4"), DN25 (1"), DN40 (1-1/2"), DN50 (2"), DN63 (2-1/2"), DN80 (3"), DN100 (4"), DN125 (5"), DN150 (6"), and DN200 (8") pipes for tailored configurations.
• Solid Performance Specs: Handles up to 16 bar maximum working pressure (13 bar for DN200) and temperatures from -20°C to +80°C.
• Premium Construction: Corrosion-resistant aluminum, non-flammable (UL94-0), and ISO 8573-1 certified for pristine air in food, pharmaceutical, and industrial uses.
• Modular Simplicity: Tool-free assembly and disassembly; ideal for modifications or relocations.
• Long-Term Value: Boosts system efficiency and reliability, covered by a 10-year limited warranty.

Integrate AIRpipe 45° Elbows to refine your pneumatic pathways and enhance operational flow. Select your size and angle toward superior performance now!
