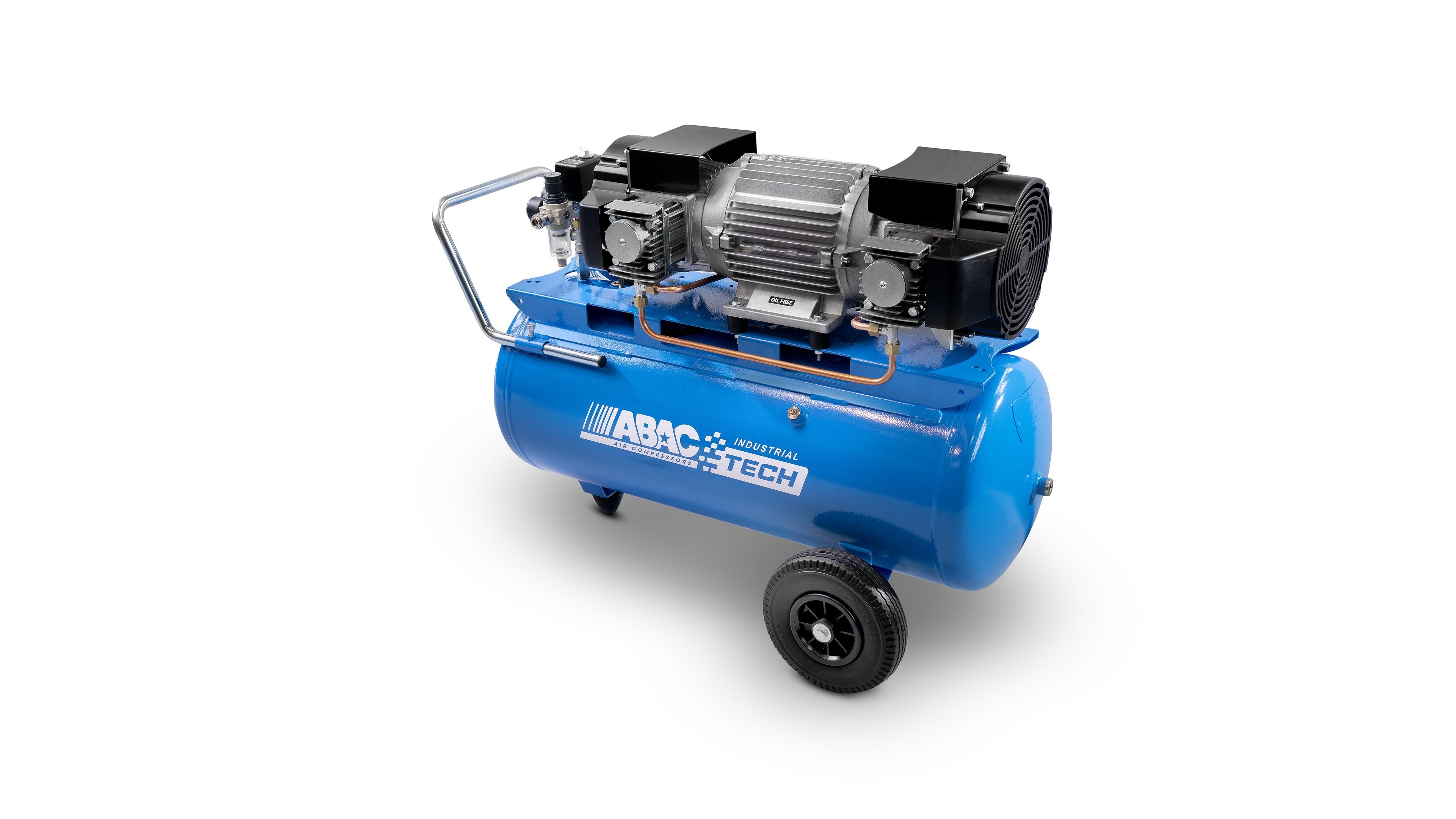

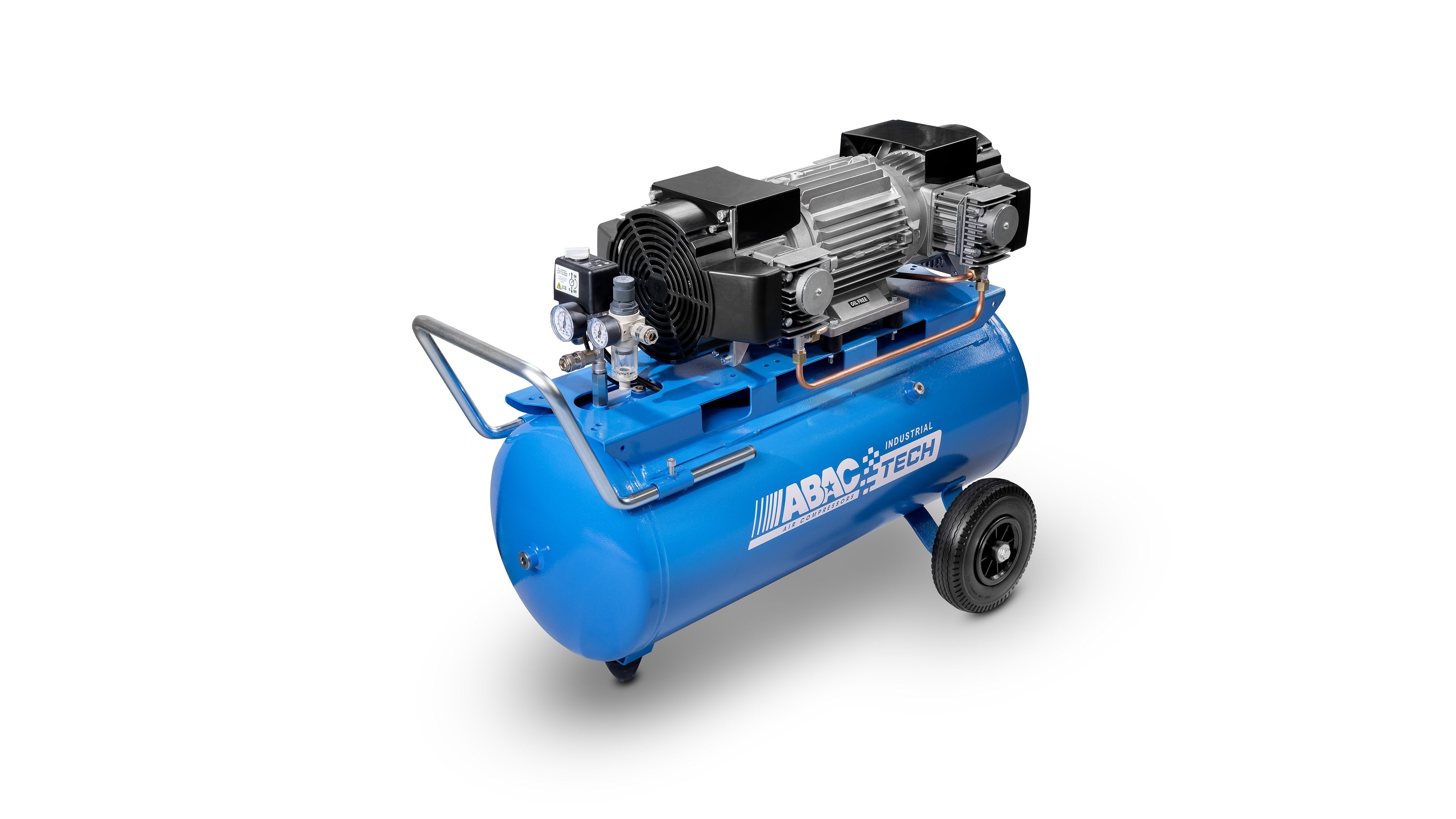

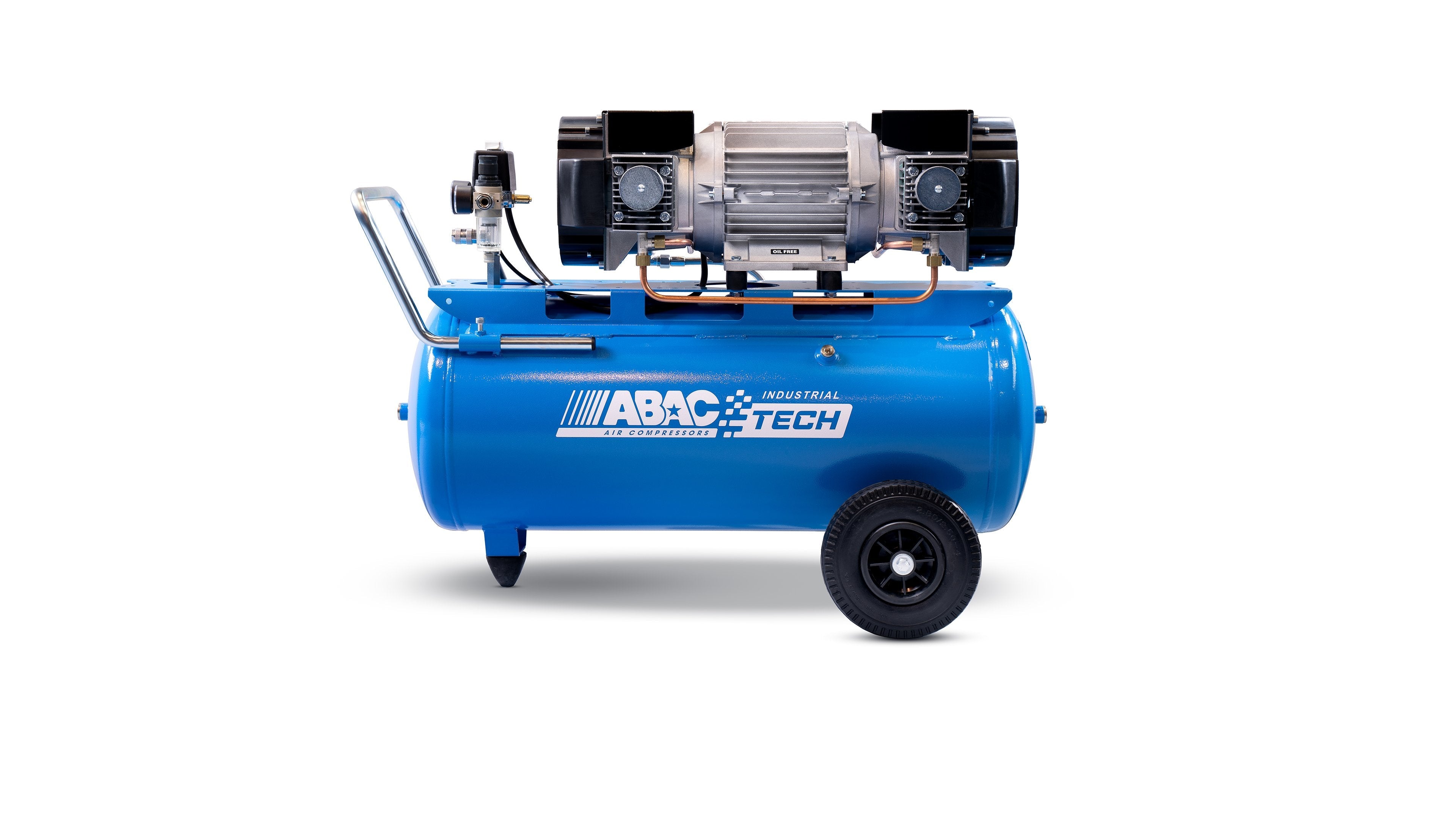

ABAC Tech S1 Tank Mount ATF-S 4 100 10 Air Compressor 100L 400V - 4116000871
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Introducing ABAC'S 100% Duty Oil Free Air Compressors, the perfect solution for industries that require oil-free air for their processes. These compressors ensure maximum efficiency and reliability, providing clean and contaminant-free air.
With 100% duty cycle, you can rely on consistent performance without any interruptions. Increase your productivity and decrease maintenance costs with our oil-free air compressors.
Using oil free continuous duty cycle compressors ensures that the production processes that are conducted in painting, printing & packaging, laboratories & hospitals, food production & processing and precision equipment are safe, with no risk of contamination.
The oil free piston compressor technology provides an uninterrupted stream of 100% duty cycle clean air to the operations which eliminates any chance of damage caused by oil contamination or downtime.
From plastics and metal fabrication to food, beverage, and pharmaceutical packaging, high tech compressors not only enhance manufacturing productivity, they provide contaminant-free and tightly sealed products, where safety is mandatory. OIL FREE compressors ensure a 100% clean seal while also powering conveyor belts, sprayers, and presses.
| Specification | Value |
|---|---|
| SmartInventory class | Available on request |
| Vessel size (lt) | 10 Liter |
| Configuration | Mobile |
| Vessel size (gal) | 3 Gal |
| Air intake (l/min) | 480 l/min |
| Pump speed | 1400 Rpm |
| Product Length | 1120 mm |
| Oil capacity | n.a. Liter |
| EAN Code | 8024900731781 |
| Supply voltage | 400 V |
| Motor (hp) | 4 Hp |
| Max Pressure (psi) | 435 |
| Number of phases | 3 |
| Duty Cycle | S1 100% |
| Weight | 76 Kg |
| Air Displacement (l/min) | 309 l/min |
| Pump Element | ATF-S 4 |
| Max Pressure (bar) | 10 Bar |
| Stackability | Yes |
| Product Width | 400 mm |
| Lubrication | Oil-free |
| Noise Level (LPA) | 72 dB(A) |
| Air Displacement (cfm) | 10.9 Cfm |
| Noise Level (LWA) | 92 dB(A) |
| Product Height | 750 mm |
| Frequency | 50 Hz |
| Cylinders | 4 |
| Motor (kw) | 3.2 kW |
