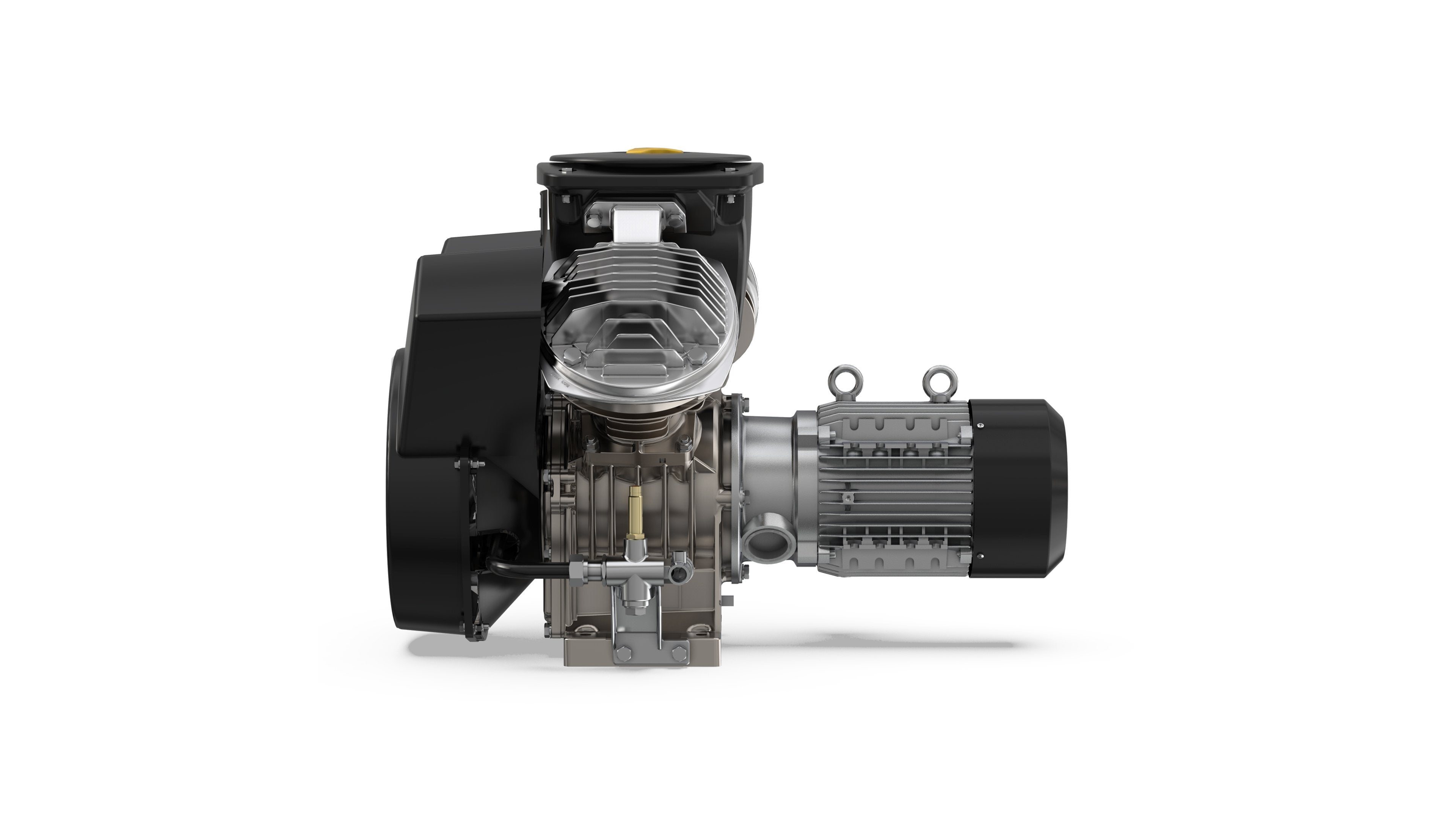

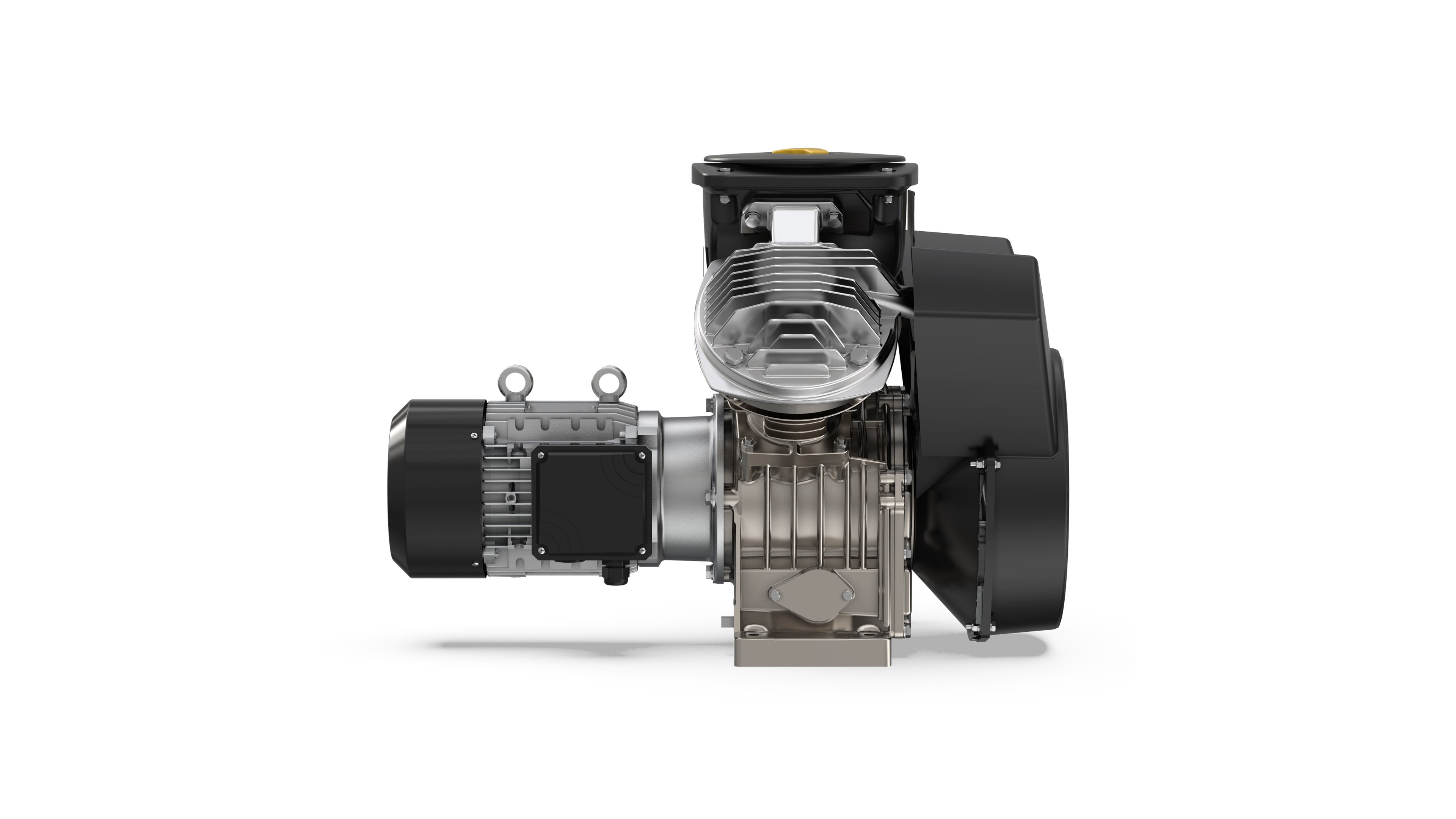

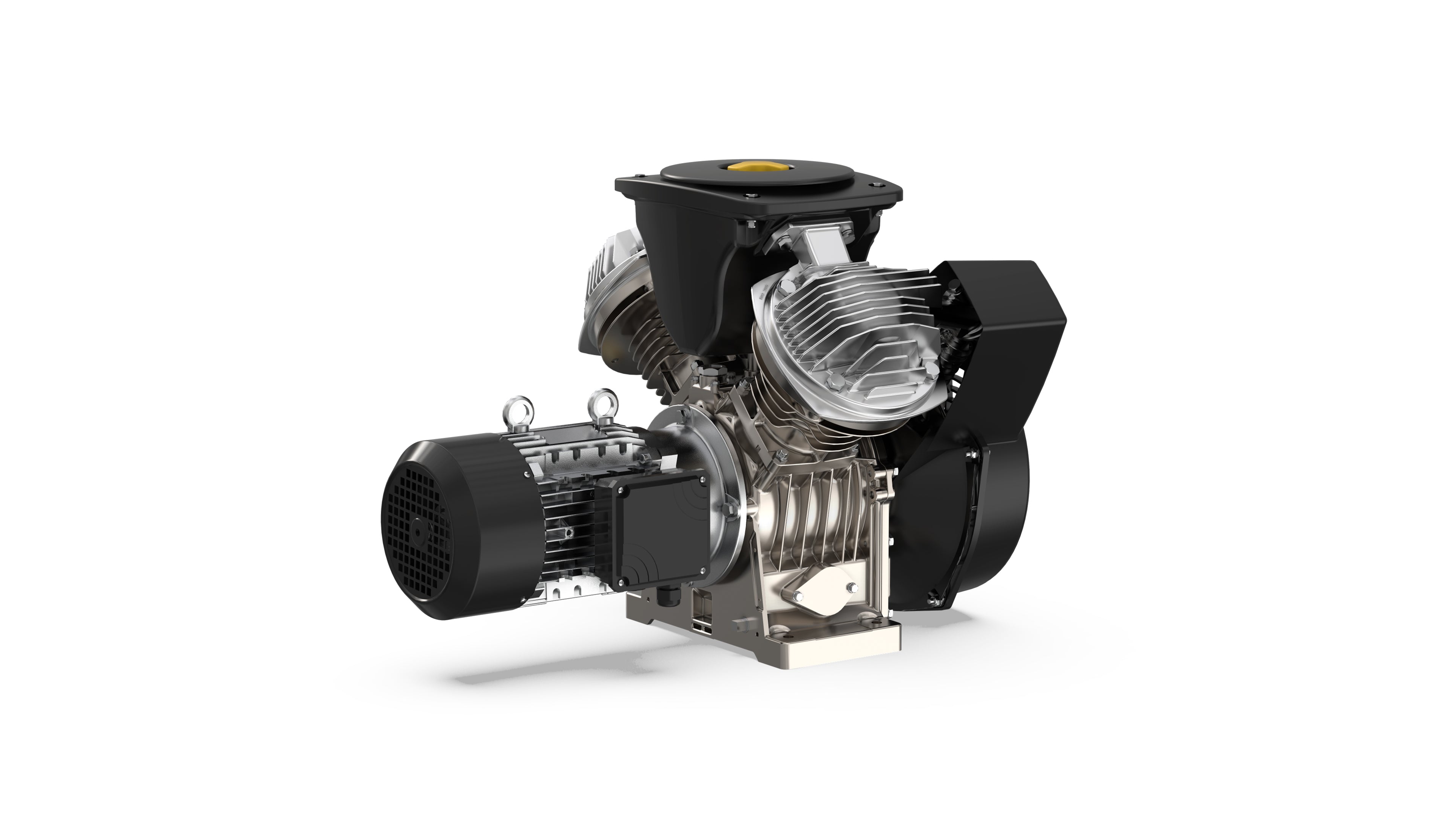

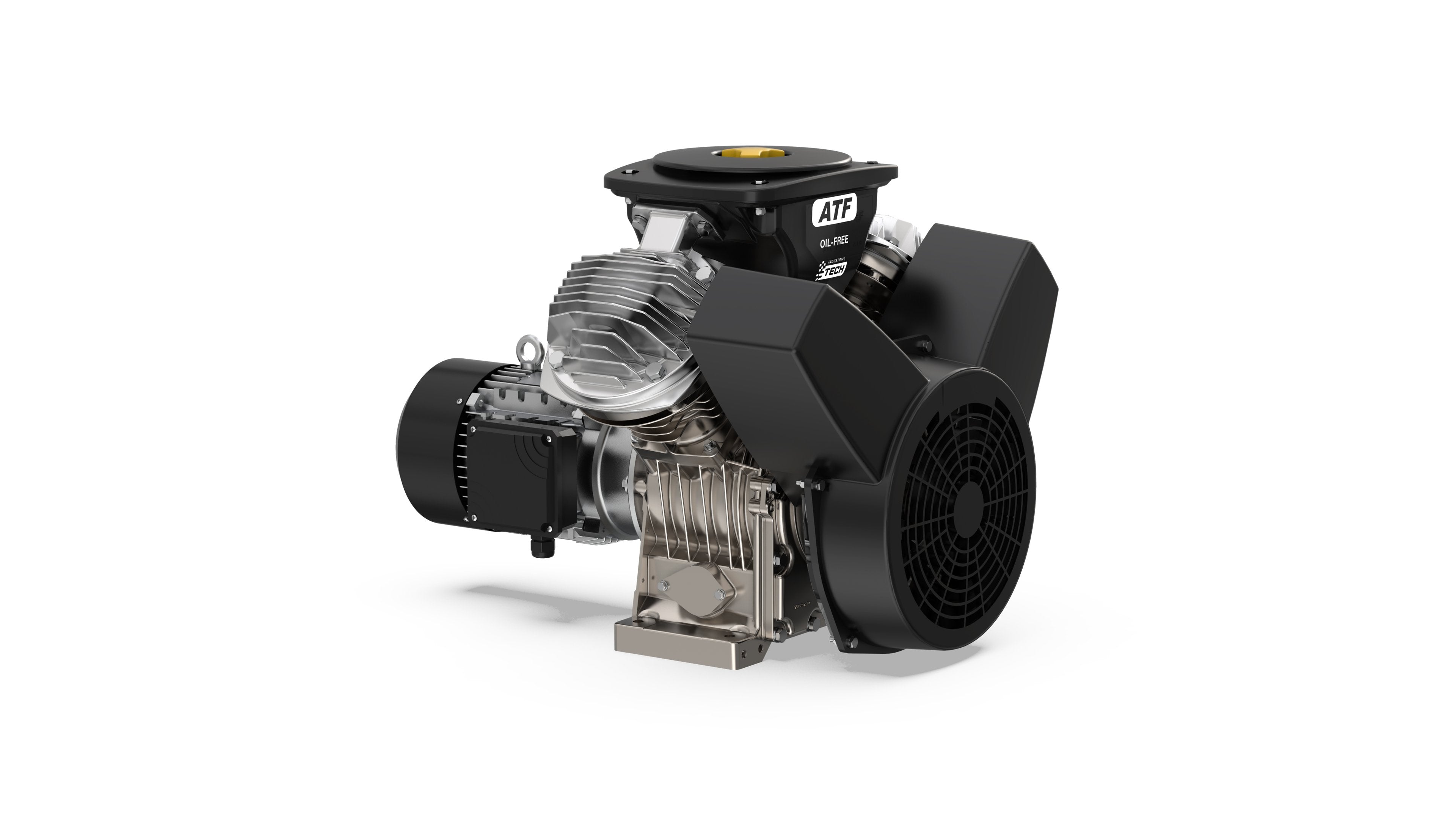

ABAC Tech S1 Power Pack ATF 7.5 PP 10 Air Compressor Pump - 4116001447
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Introducing ABAC'S 100% Duty Oil Free Air Compressors, the perfect solution for industries that require oil-free air for their processes. These compressors ensure maximum efficiency and reliability, providing clean and contaminant-free air.
With 100% duty cycle, you can rely on consistent performance without any interruptions. Increase your productivity and decrease maintenance costs with our oil-free air compressors.
Using oil free continuous duty cycle compressors ensures that the production processes that are conducted in painting, printing & packaging, laboratories & hospitals, food production & processing and precision equipment are safe, with no risk of contamination.
The oil free piston compressor technology provides an uninterrupted stream of 100% duty cycle clean air to the operations which eliminates any chance of damage caused by oil contamination or downtime.
ATF compressors protect each application from risks because they provide a pure and clean air source for the operation to run each and every day safely.
| Specification | Value |
|---|---|
| SmartInventory class | Available on request |
| Vessel size (lt) | 0 Liter |
| Configuration | Powerpack |
| Vessel size (gal) | 0 Gal |
| Air intake (l/min) | 1146 l/min |
| Pump speed | 1500 Rpm |
| Product Length | 860 mm |
| Oil capacity | n.a. Liter |
| EAN Code | 8024900729955 |
| Supply voltage | 400 V |
| Motor (hp) | 7.5 Hp |
| Unit performance measurement disclaimer | Unit performance measured according to ISO 1217, Annex C, latest edition. |
| Max Pressure (psi) | 435 |
| Number of phases | 3 |
| Duty Cycle | S1 100% |
| Weight | 90 Kg |
| Air Displacement (l/min) | 660 l/min |
| Pump Element | LF7 |
| Max Pressure (bar) | 10 Bar |
| Stackability | No |
| Duty Cycle Disclaimer | Duty cycle = compressor run time / (run time + rest time) = duty cycle percentage. |
| Product Width | 591 mm |
| Lubrication | Oil-free |
| Noise Level (LPA) | 84 dB(A) |
| Construction | Industrial |
| Air Displacement (cfm) | 23.3 Cfm |
| Noise Level (LWA) | 104 dB(A) |
| Product Height | 625 mm |
| Frequency | 50 Hz |
| Cylinders | 2 |
| Motor (kw) | 5.5 kW |
| Noise level disclaimer | Noise level measured according to ISO 2151 2004 |
