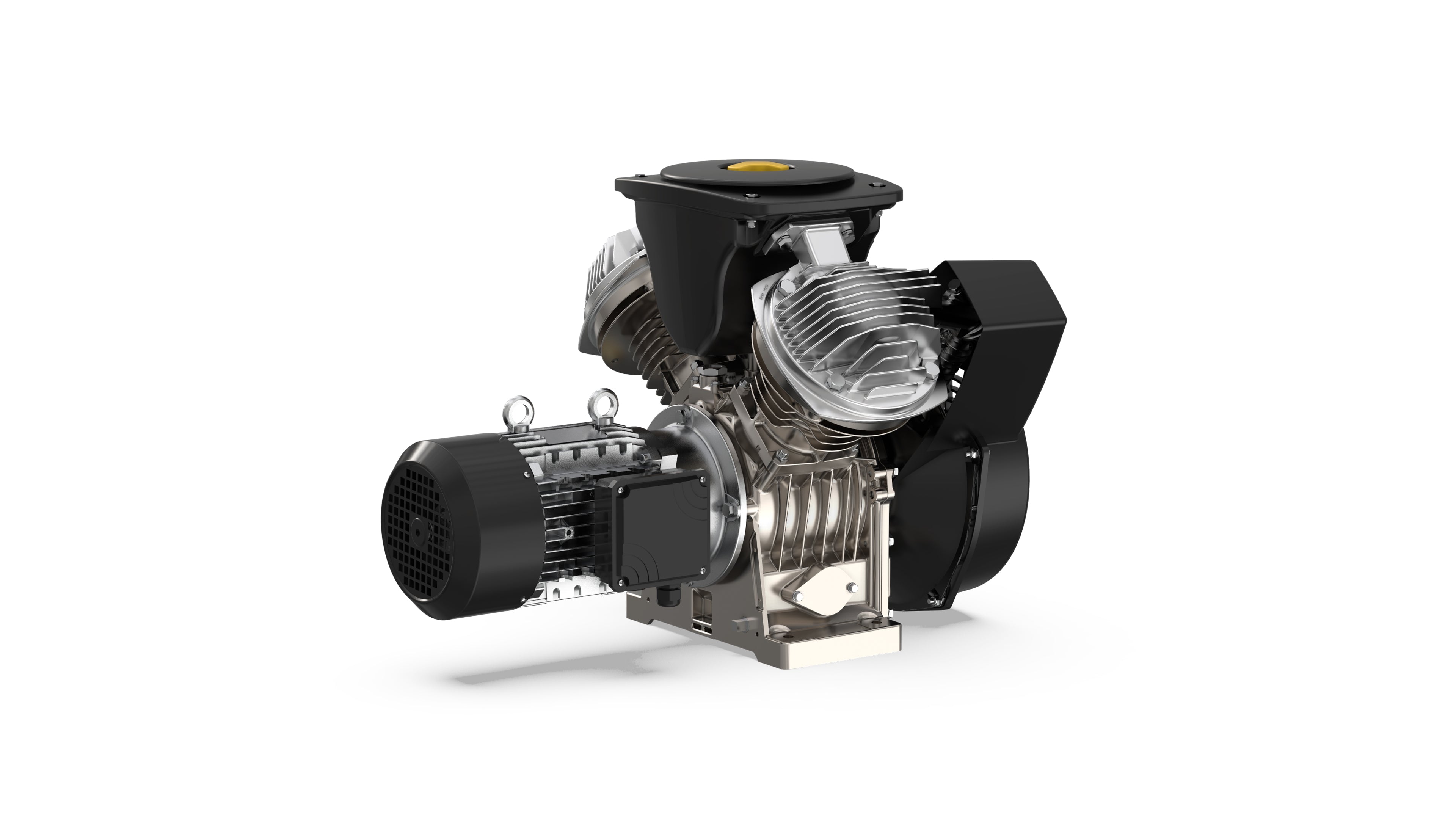

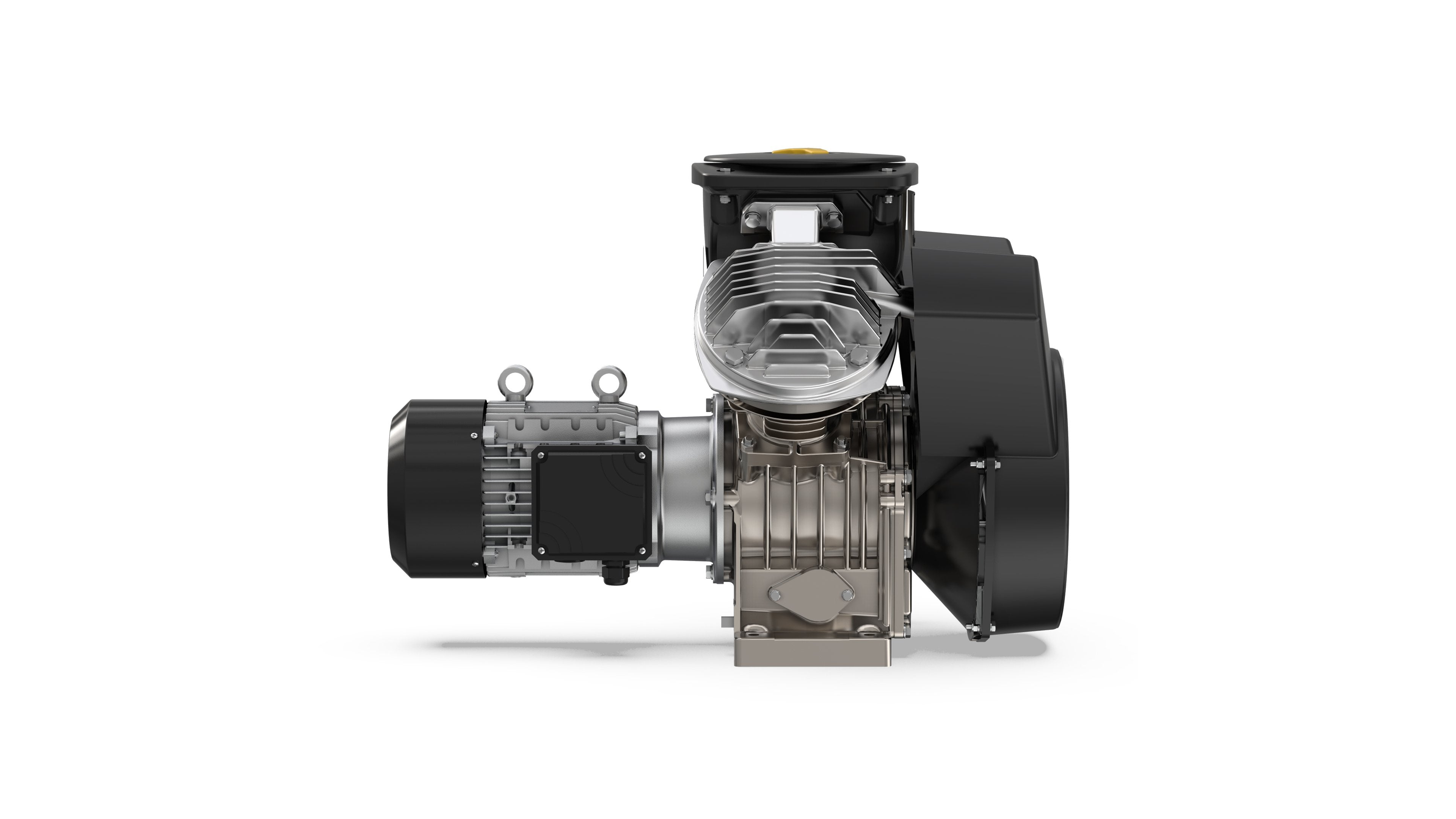

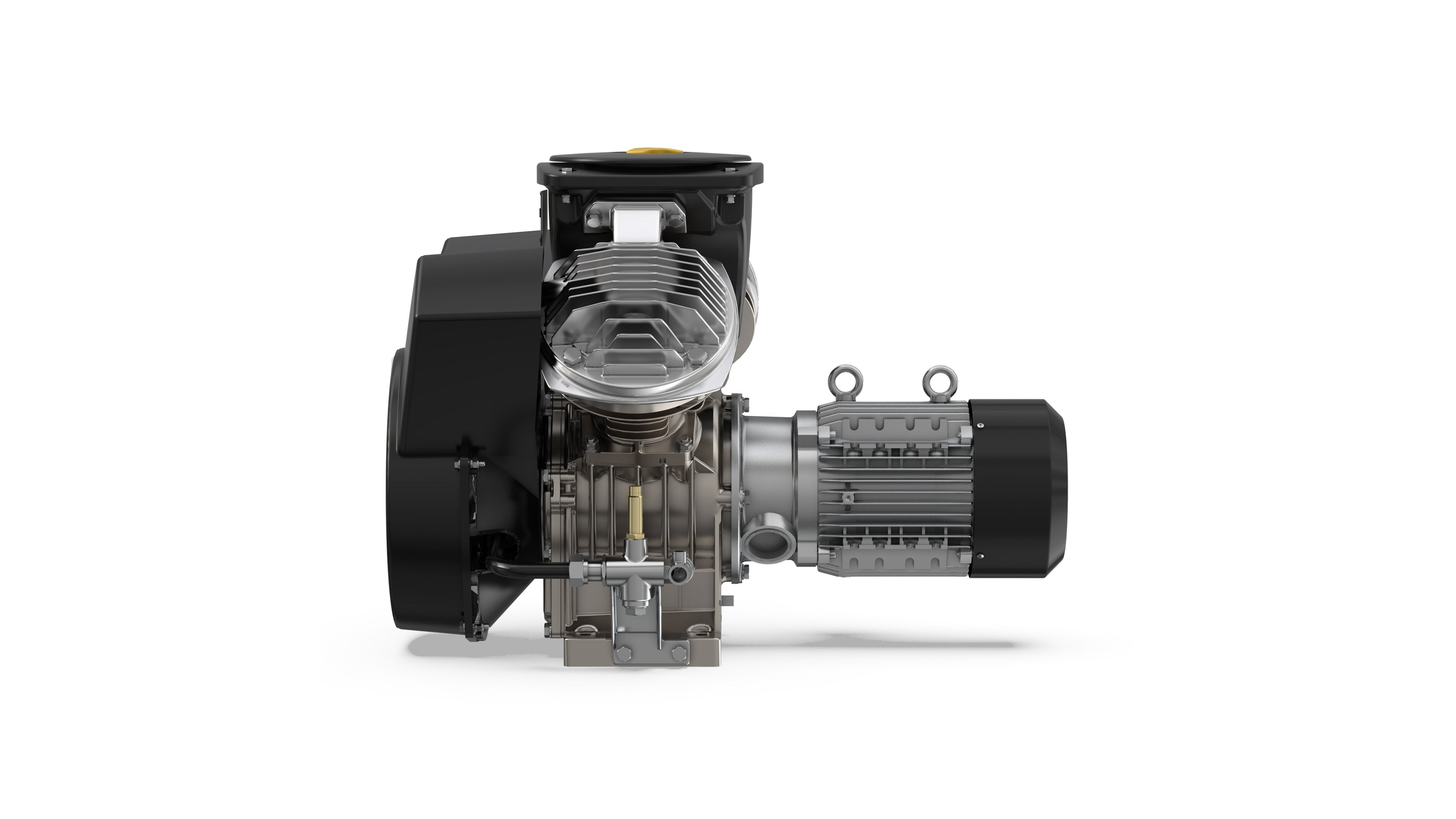

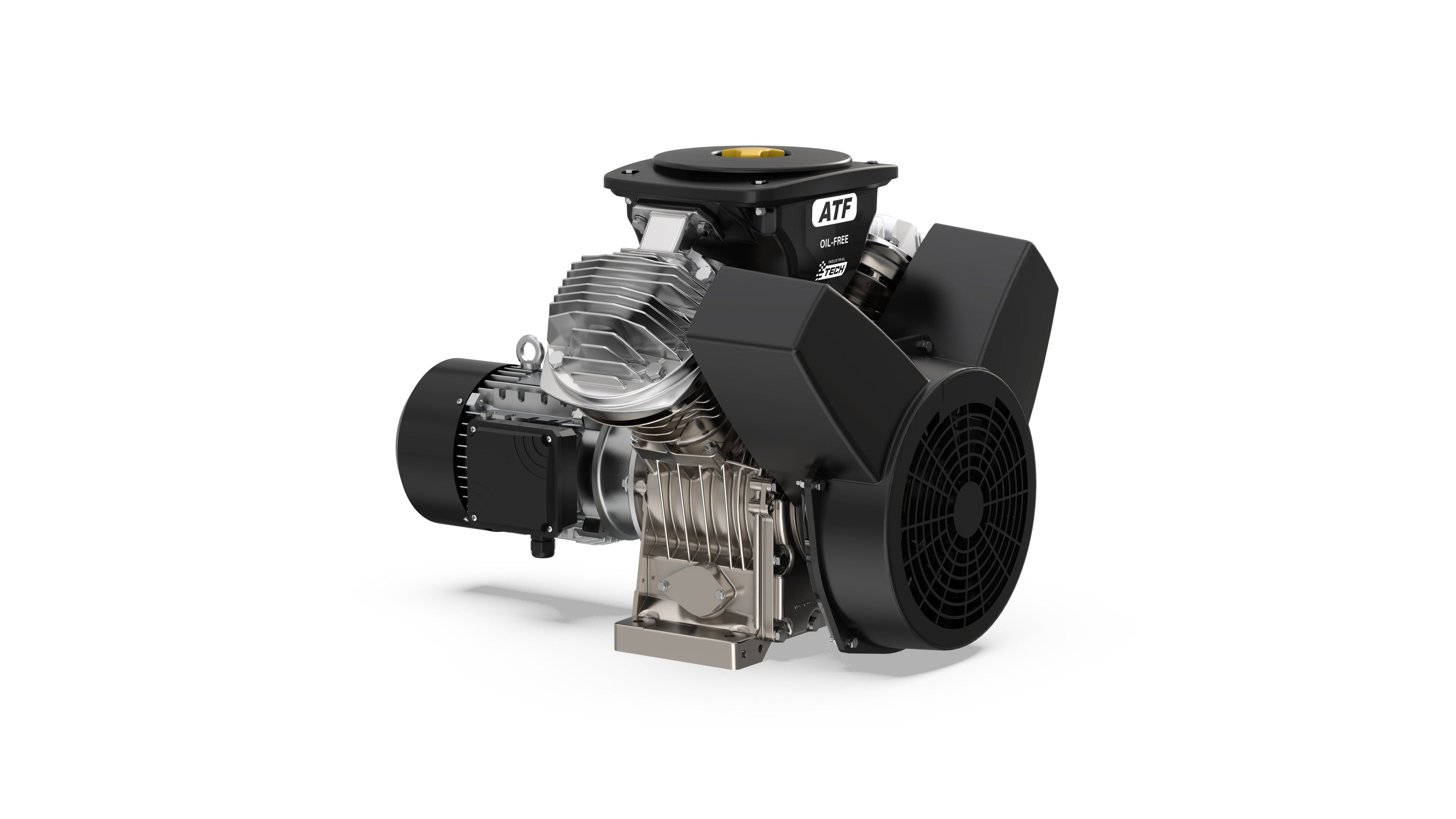

ABAC Tech S1 Power Pack ATF 5.5 PP 10 Air Compressor Pump - 4116001446

CALL FREE ON 0800 7555 808

ABAC Tech S1 Power Pack ATF 5.5 PP 10 Air Compressor Pump - 4116001446
ABAC Tech S1 Power Pack ATF 5.5 PP 10 Air Compressor Pump - 4116001446
ABAC Tech S1 Power Pack ATF 5.5 PP 10 Air Compressor Pump - 4116001446
ABAC Tech S1 Power Pack ATF 5.5 PP 10 Air Compressor Pump - 4116001446

ABAC Tech S1 Power Pack ATF 5.5 PP 10 Air Compressor Pump - 4116001446

Regular price
£6,002.00
£4,230.00

Introducing ABAC'S 100% Duty Oil Free Air Compressors, the perfect solution for industries that require oil-free air for their processes. These compressors ensure maximum efficiency and reliability, providing clean and contaminant-free air.

With 100% duty cycle, you can rely on consistent performance without any interruptions. Increase your productivity and decrease maintenance costs with our oil-free air compressors.

Using oil free continuous duty cycle compressors ensures that the production processes that are conducted in painting, printing & packaging, laboratories & hospitals, food production & processing and precision equipment are safe, with no risk of contamination.

The oil free piston compressor technology provides an uninterrupted stream of 100% duty cycle clean air to the operations which eliminates any chance of damage caused by oil contamination or downtime.

ATF compressors protect each application from risks because they provide a pure and clean air source for the operation to run each and every day safely.

Product Information

Specification Value
Weight 90000 g
Width 530 cm
Height 547 cm
Length 686 cm
Country of origin IT
Customs tariff code 8414802290



Technical Information

Specification Value
SmartInventory class Available on request
Vessel size (lt) 0 Liter
Configuration Powerpack
Vessel size (gal) 0 Gal
Air intake (l/min) 918 l/min
Pump speed 1500 Rpm
Product Length 686 mm
Oil capacity n.a. Liter
EAN Code 8024900729948
Supply voltage 400 V
Motor (hp) 5.5 Hp
Unit performance measurement disclaimer Unit performance measured according to ISO 1217, Annex C, latest edition.
Max Pressure (psi) 435
Number of phases 3
Duty Cycle S1 100%
Weight 90 Kg
Air Displacement (l/min) 492 l/min
Pump Element LF5
Max Pressure (bar) 10 Bar
Stackability No
Duty Cycle Disclaimer Duty cycle = compressor run time / (run time + rest time) = duty cycle percentage.
Product Width 530 mm
Lubrication Oil-free
Noise Level (LPA) 83 dB(A)
Construction Industrial
Air Displacement (cfm) 17.4 Cfm
Noise Level (LWA) 103 dB(A)
Product Height 547 mm
Frequency 50 Hz
Cylinders 2
Motor (kw) 4 kW
Noise level disclaimer Noise level measured according to ISO 2151 2004
