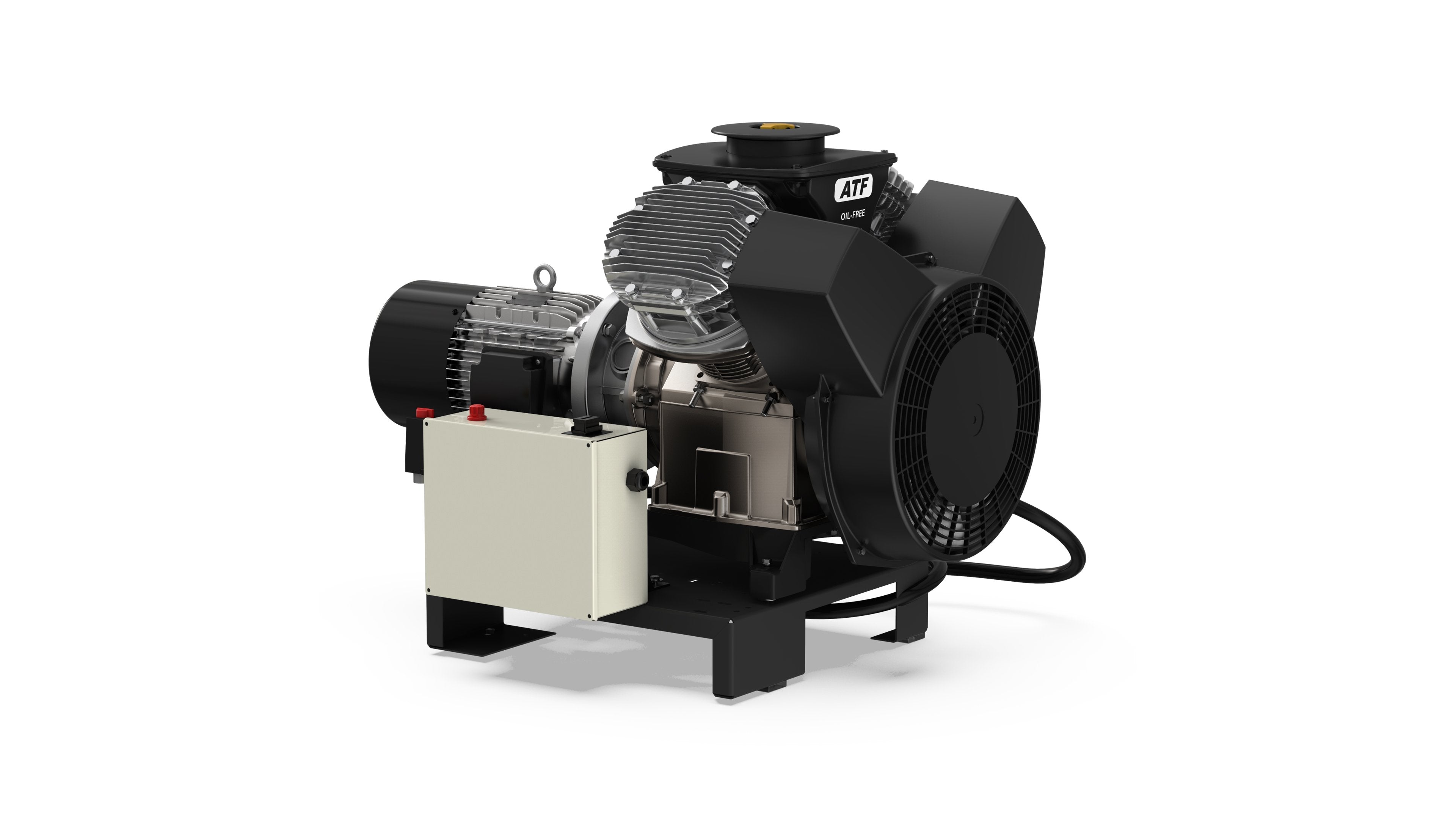

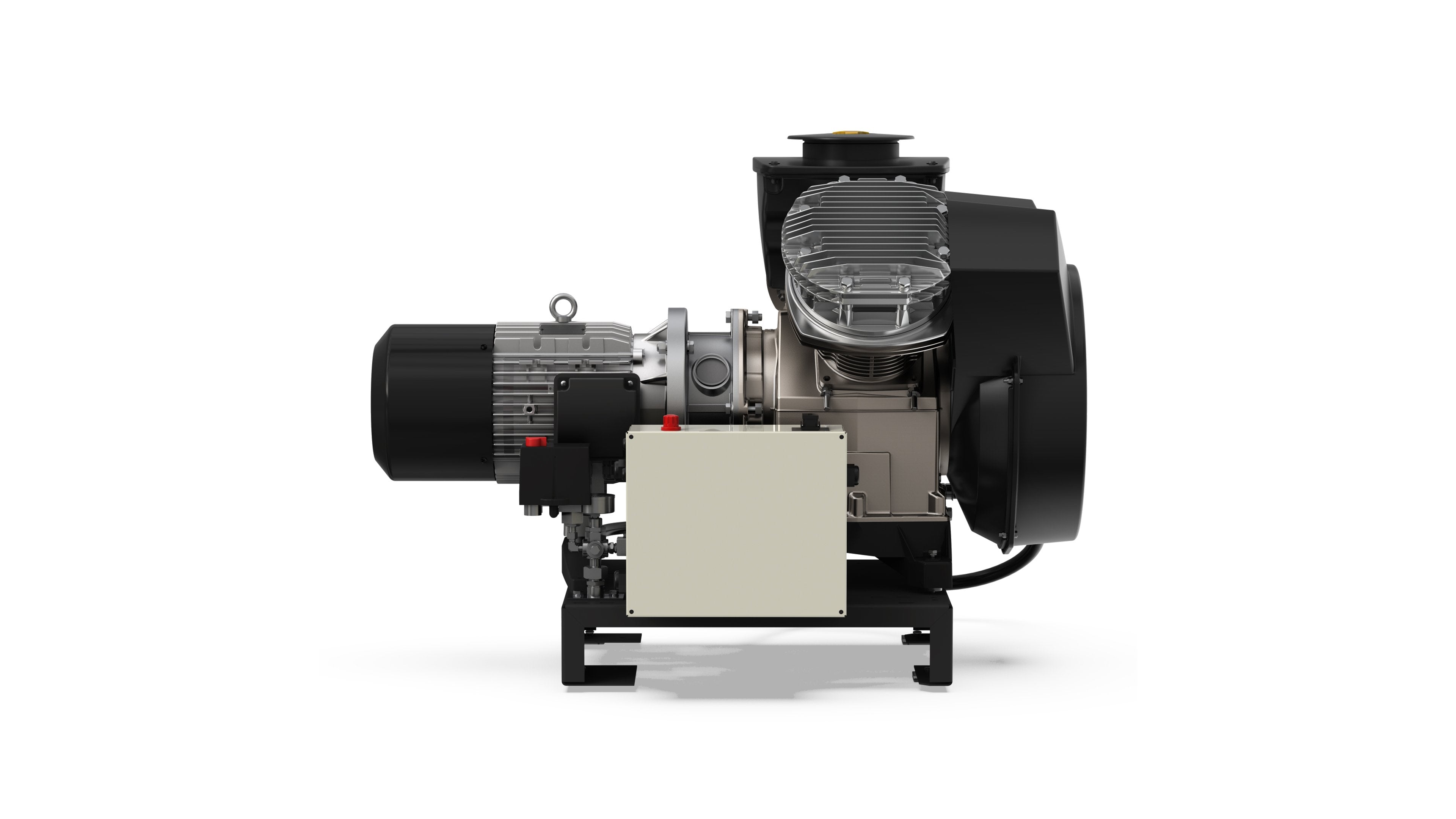

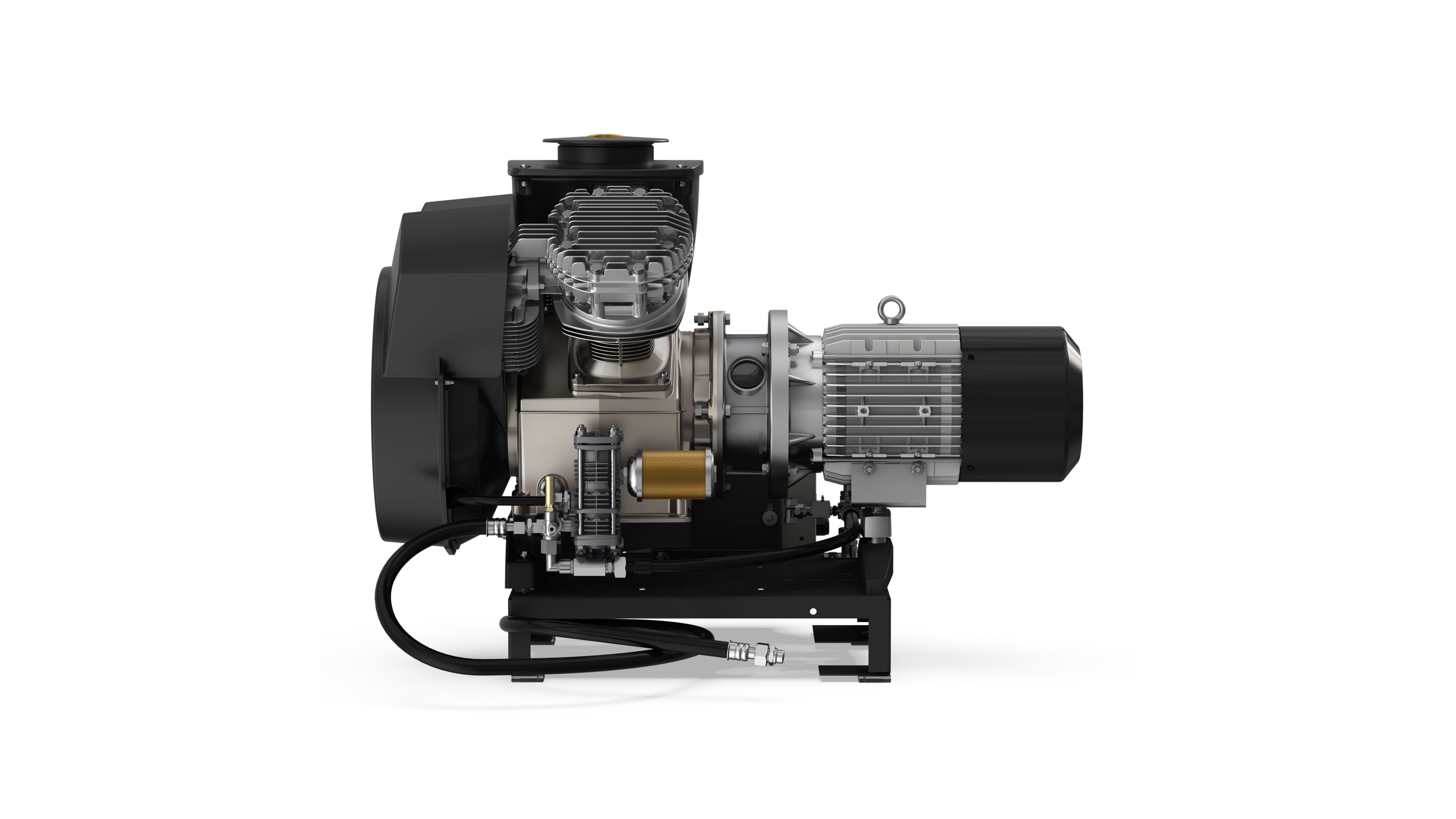

ABAC Tech S1 Base Mount ATF 2 BM 10 Air Compressor Pump - 4116001449
Couldn't load pickup availability
Accepted Payments
Ask The Experts!
Introducing ABAC'S 100% Duty Oil Free Air Compressors, the perfect solution for industries that require oil-free air for their processes. These compressors ensure maximum efficiency and reliability, providing clean and contaminant-free air.
With 100% duty cycle, you can rely on consistent performance without any interruptions. Increase your productivity and decrease maintenance costs with our oil-free air compressors.
Using oil free continuous duty cycle compressors ensures that the production processes that are conducted in painting, printing & packaging, laboratories & hospitals, food production & processing and precision equipment are safe, with no risk of contamination.
The oil free piston compressor technology provides an uninterrupted stream of 100% duty cycle clean air to the operations which eliminates any chance of damage caused by oil contamination or downtime.
High tech compressors are integral to the safe and effective operation of air braking systems, suspension and automatic doors for underground and overground rolling stock, that need powerful and reliable compressed air. Without it, locomotives and subway systems across the world would not be able to function.
| Specification | Value |
|---|---|
| Smart Inventory class | Available on request |
| Vessel size (lt) | 0 Liter |
| Configuration | Stationary |
| Vessel size (gal) | 0 Gal |
| Air intake (l/min) | 408 l/min |
| Pump speed | 1500 Rpm |
| Product Length | 1036 mm |
| Oil capacity | n.a. Liter |
| EAN Code | 8024900729979 |
| Supply voltage | 400 V |
| Motor (hp) | 2 Hp |
| Unit performance measurement disclaimer | Unit performance measured according to ISO 1217, Annex C, latest edition. |
| Max Pressure (psi) | 435 |
| Number of phases | 3 |
| Duty Cycle | S1 100% |
| Weight | 101 Kg |
| Air Displacement (l/min) | 186 l/min |
| Pump Element | LF2 |
| Max Pressure (bar) | 10 Bar |
| Stackability | No |
| Duty Cycle Disclaimer | Duty cycle = compressor run time / (run time + rest time) = duty cycle percentage. |
| Product Width | 680 mm |
| Lubrication | Oil-free |
| Noise Level (LPA) | 82 dB(A) |
| Construction | Industrial |
| Air Displacement (cfm) | 6.6 Cfm |
| Noise Level (LWA) | 102 dB(A) |
| Product Height | 721 mm |
| Frequency | 50 Hz |
| Cylinders | 2 |
| Motor (kw) | 1.5 kW |
| Noise level disclaimer | Noise level measured according to ISO 2151 2004 |
