Part Number: 4116024563

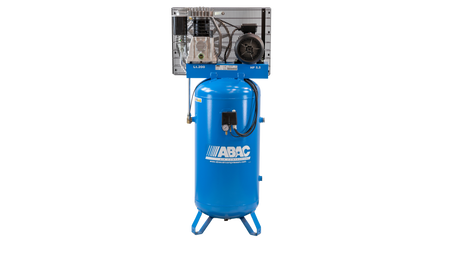

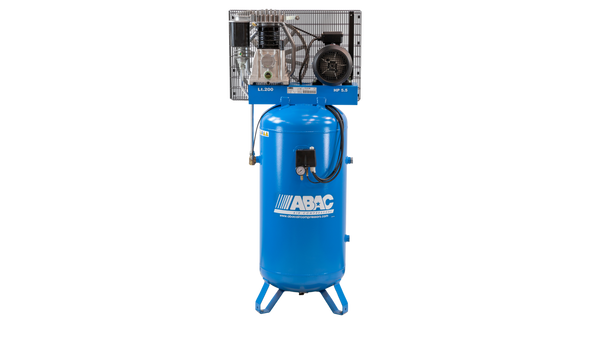

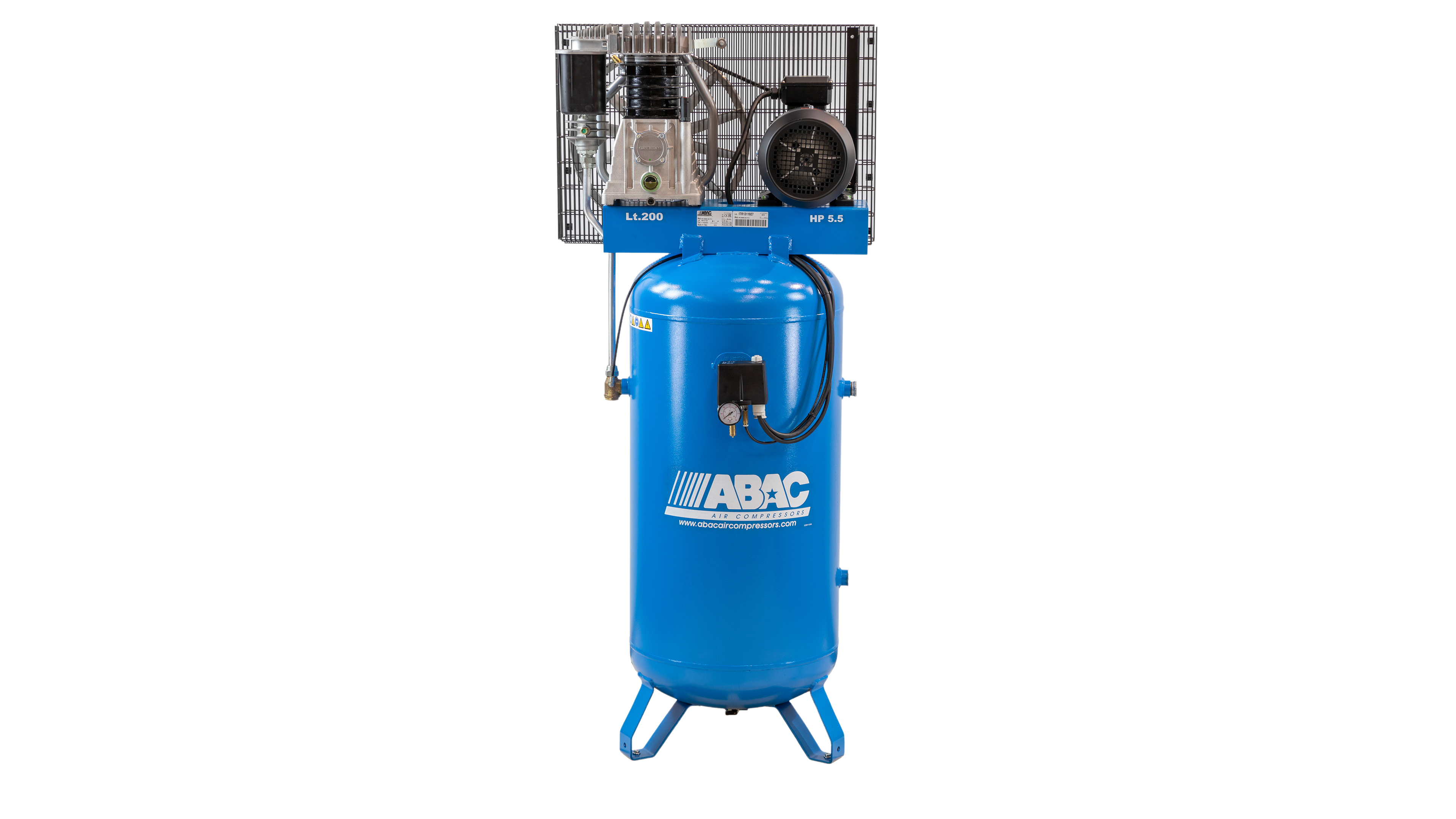

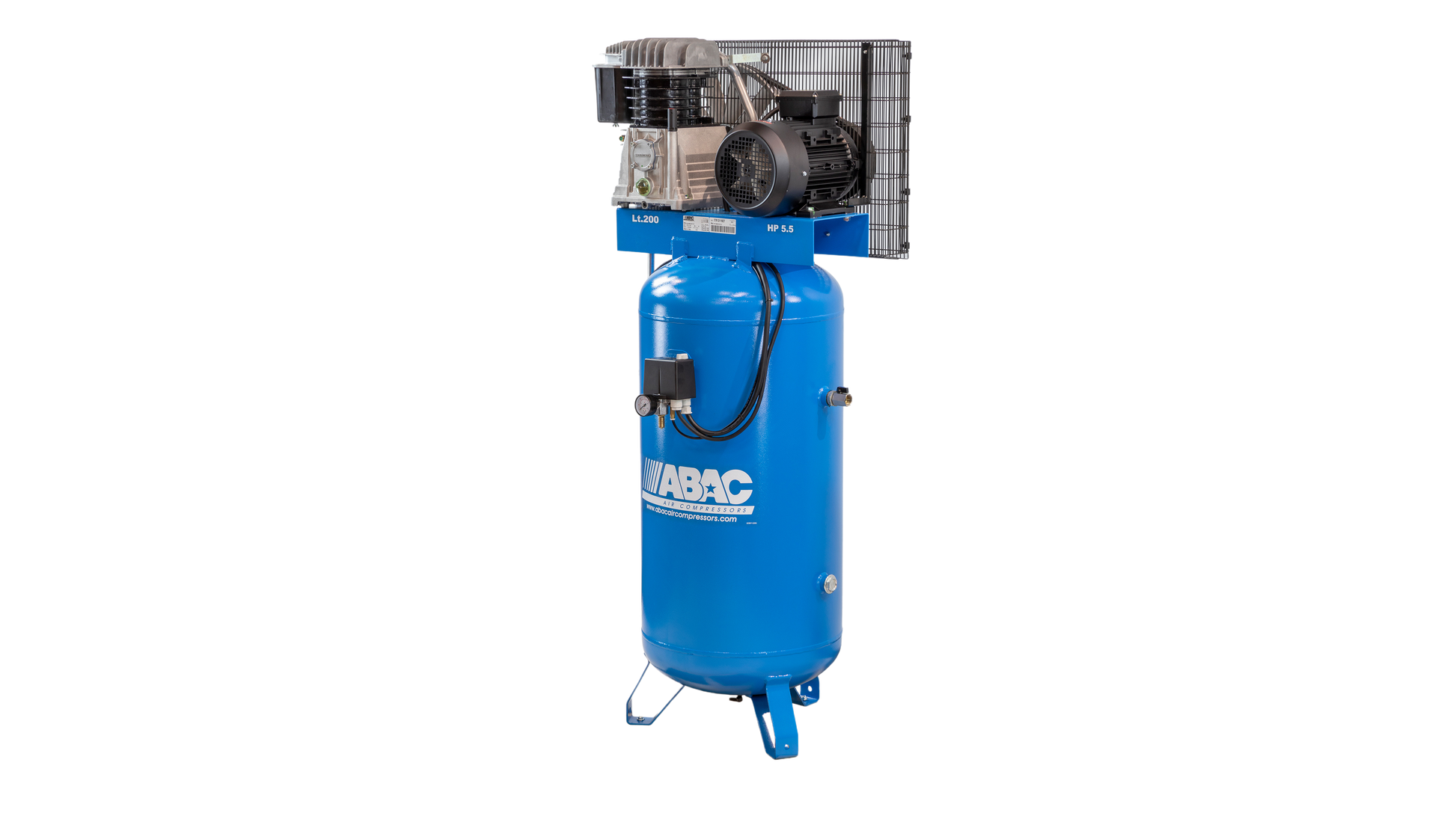

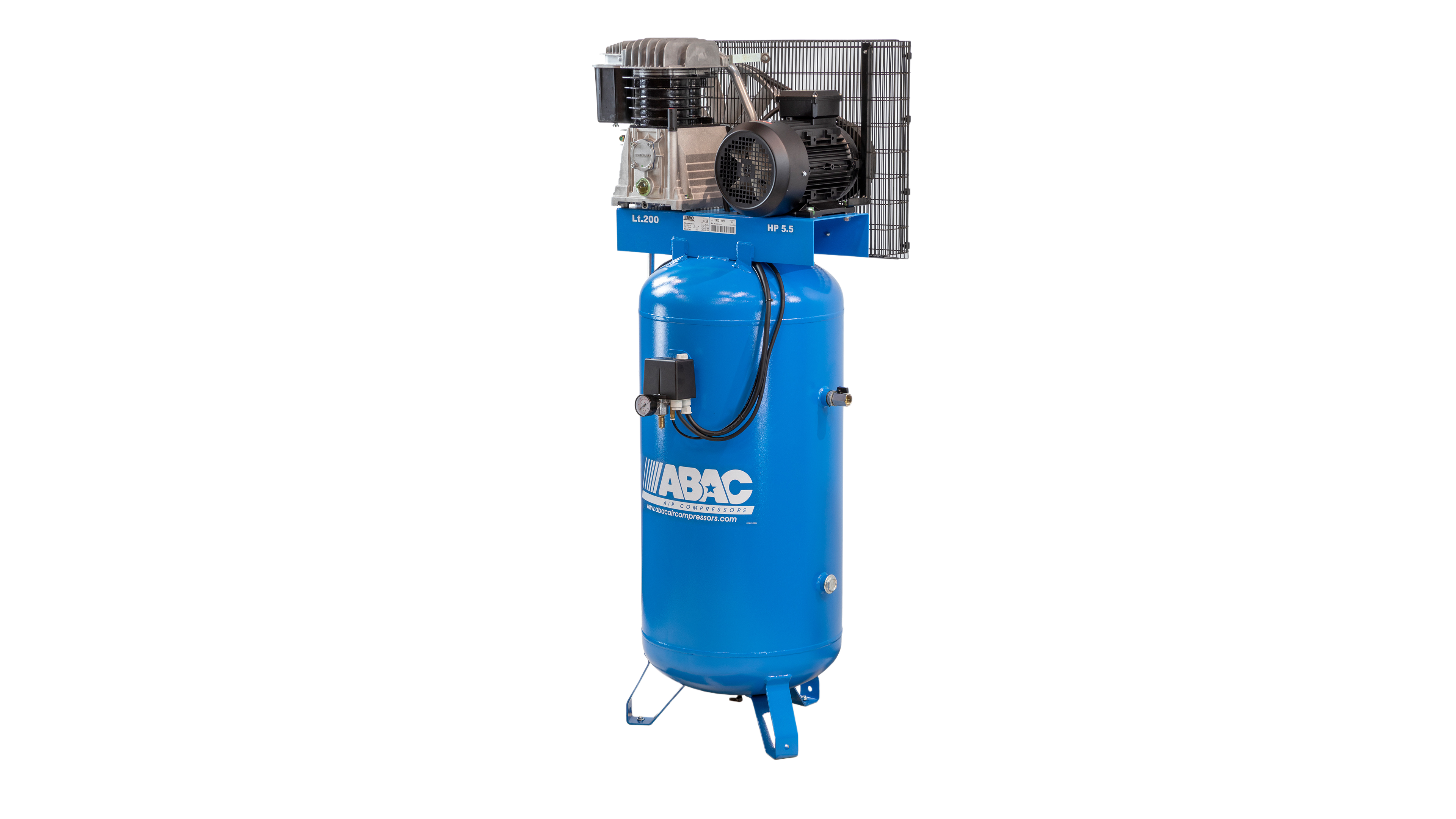

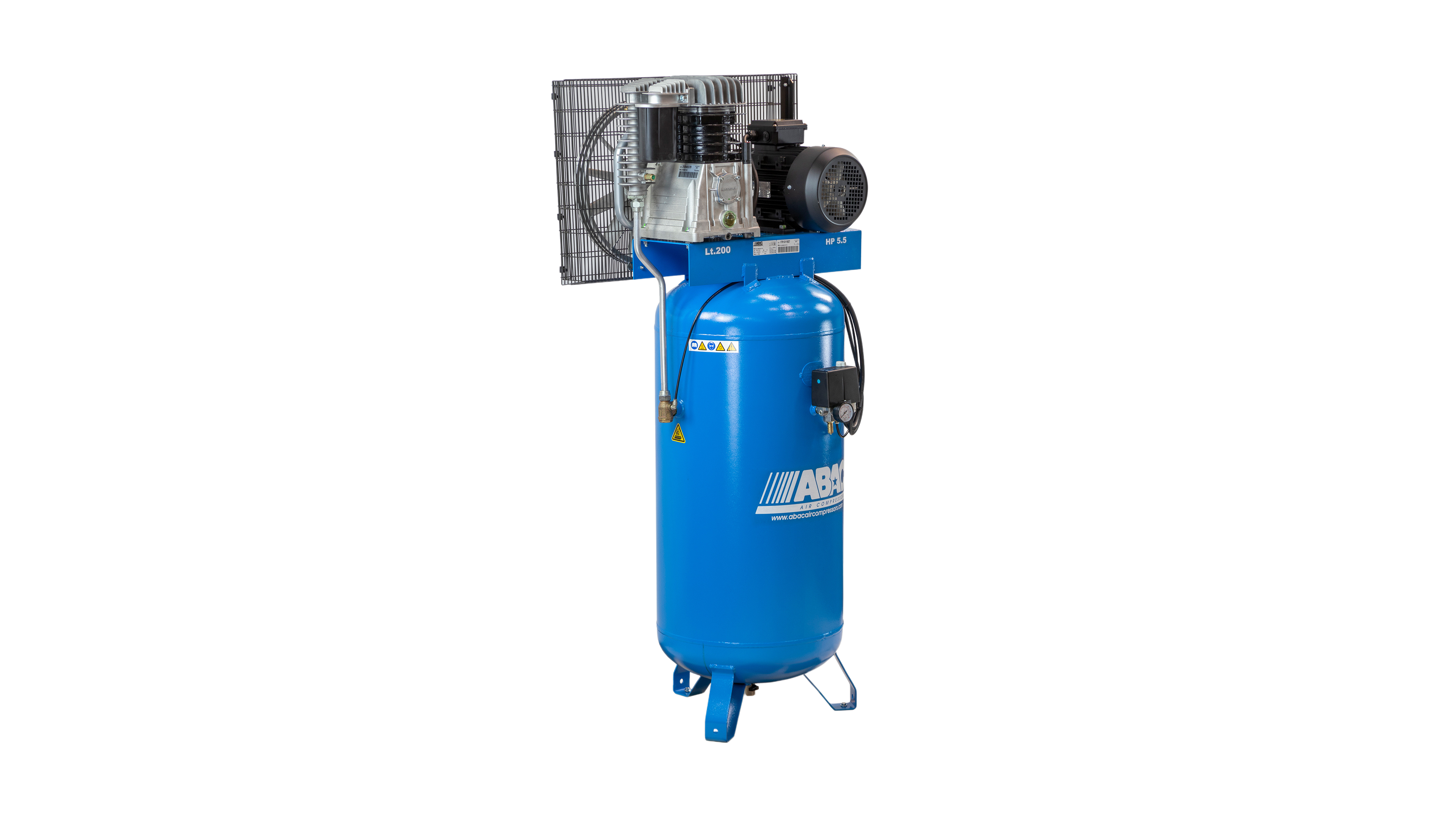

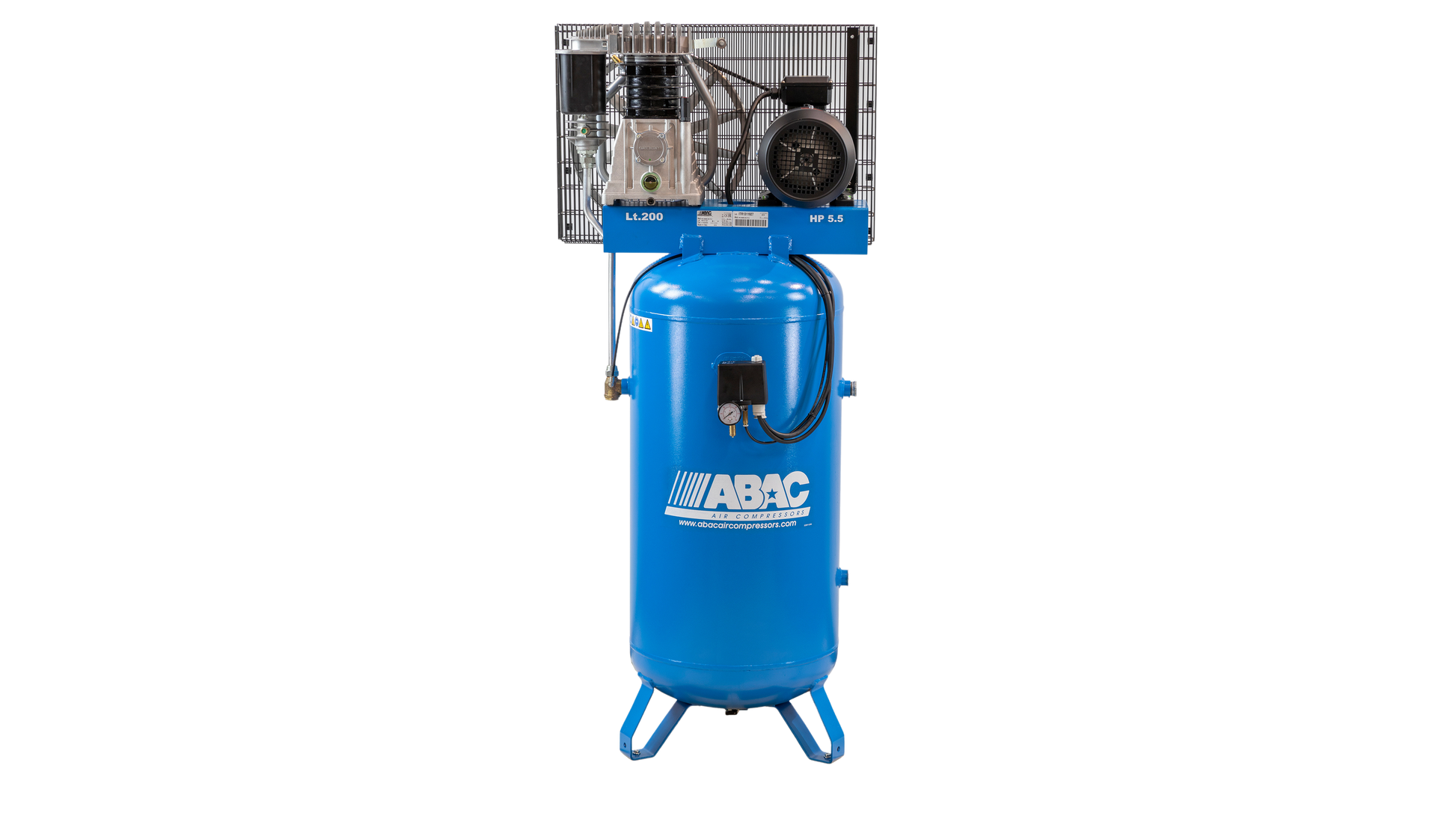

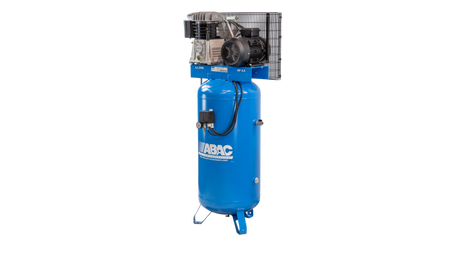

This belt drive compressor is both heavy duty and compact to provide the ideal solution for a small workshop. With enough power to drive nail/ staple guns, tyre inflators, blow guns, spray gun, impact/ ratchet wrenches and many other low consumption air tools. The vertical orientation of the tank means the compressor has a smaller footprint on the shop floor, a great option if floor space is limited.
| Specification | Value |
|---|---|
| EAN Code | 8024900537529 |
| Max Pressure (bar) | 11 Bar |
| Max Pressure (psi) | 160 PSI |
| Pump Speed | 1400 Rpm |
| Vessel size (lt) | 200 Liter |
| Vessel Size (gal) | 53 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 653 l/min |
| Air Displacement (cfm) | 23.1 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 1.5 Liter |
| Pump Element | B5900B |
| Motor (hp) | 5.5 Hp |
| Motor (kw) | 4.1 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 75 dB(A) |
| Noise Level (LWA) | 95 dB(A) |
| Product Length | 850 mm |
| Product Height | 2050 mm |
| Product Width | 970 mm |
| Weight (Kg) | 179 Kg |
