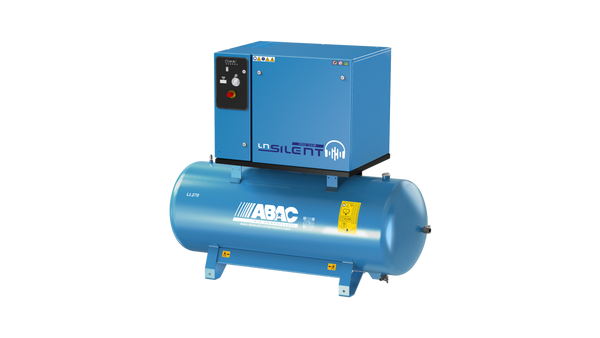

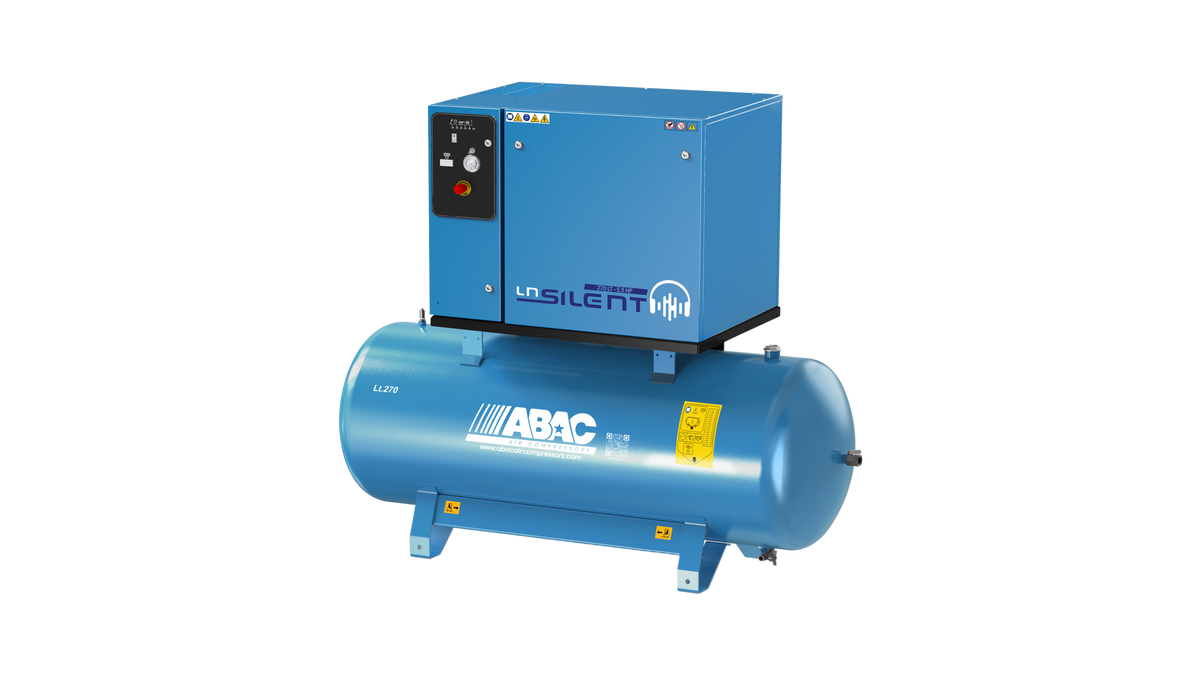

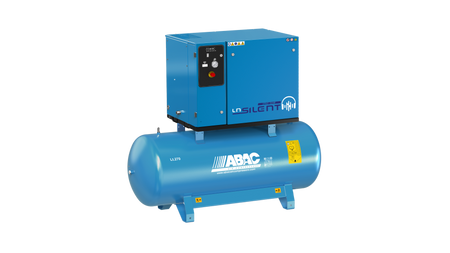

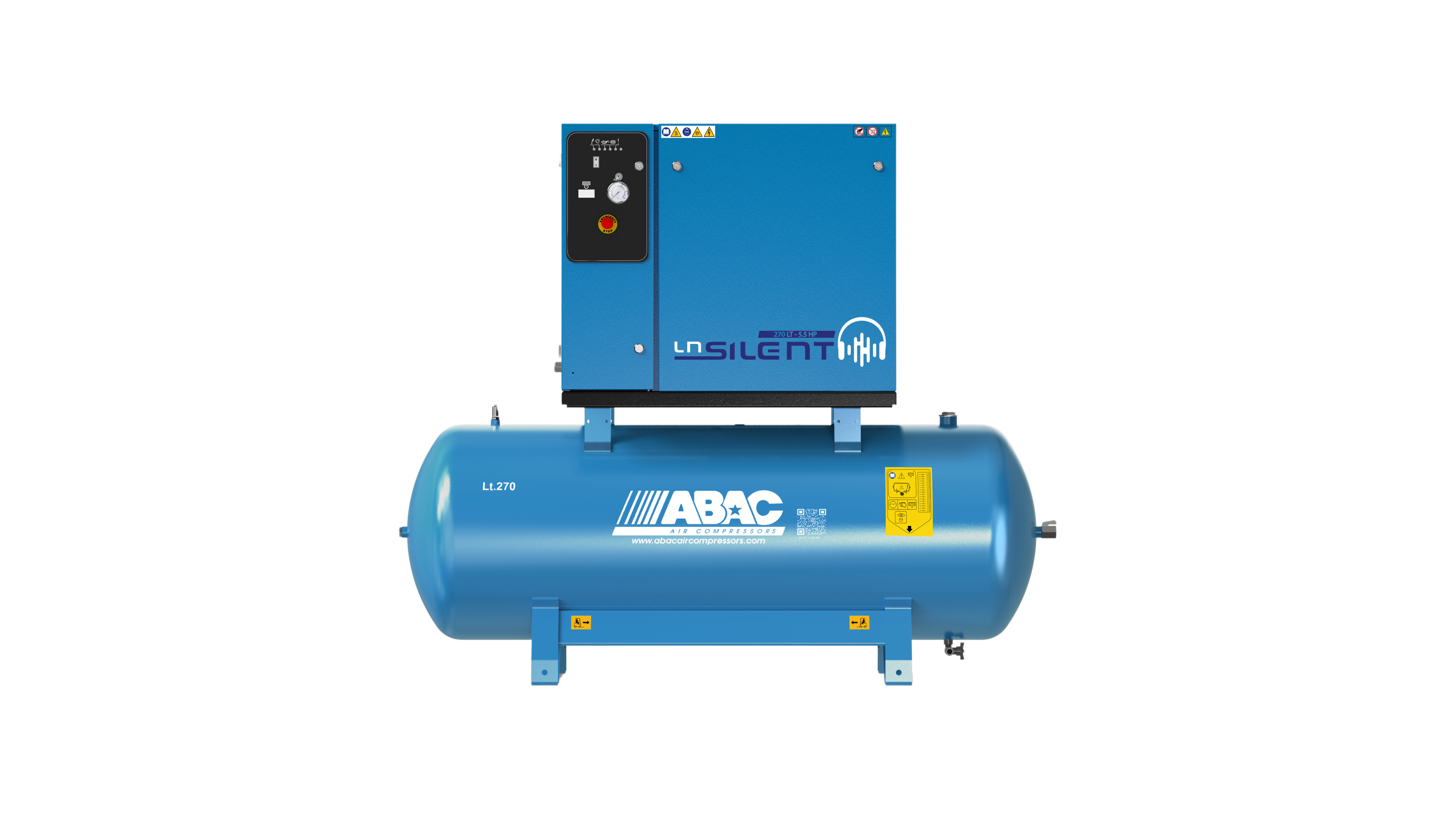

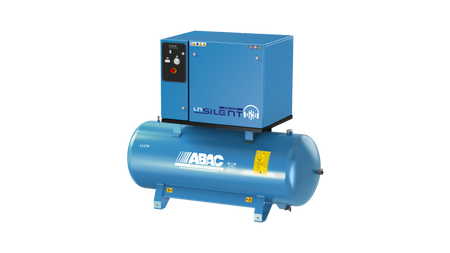

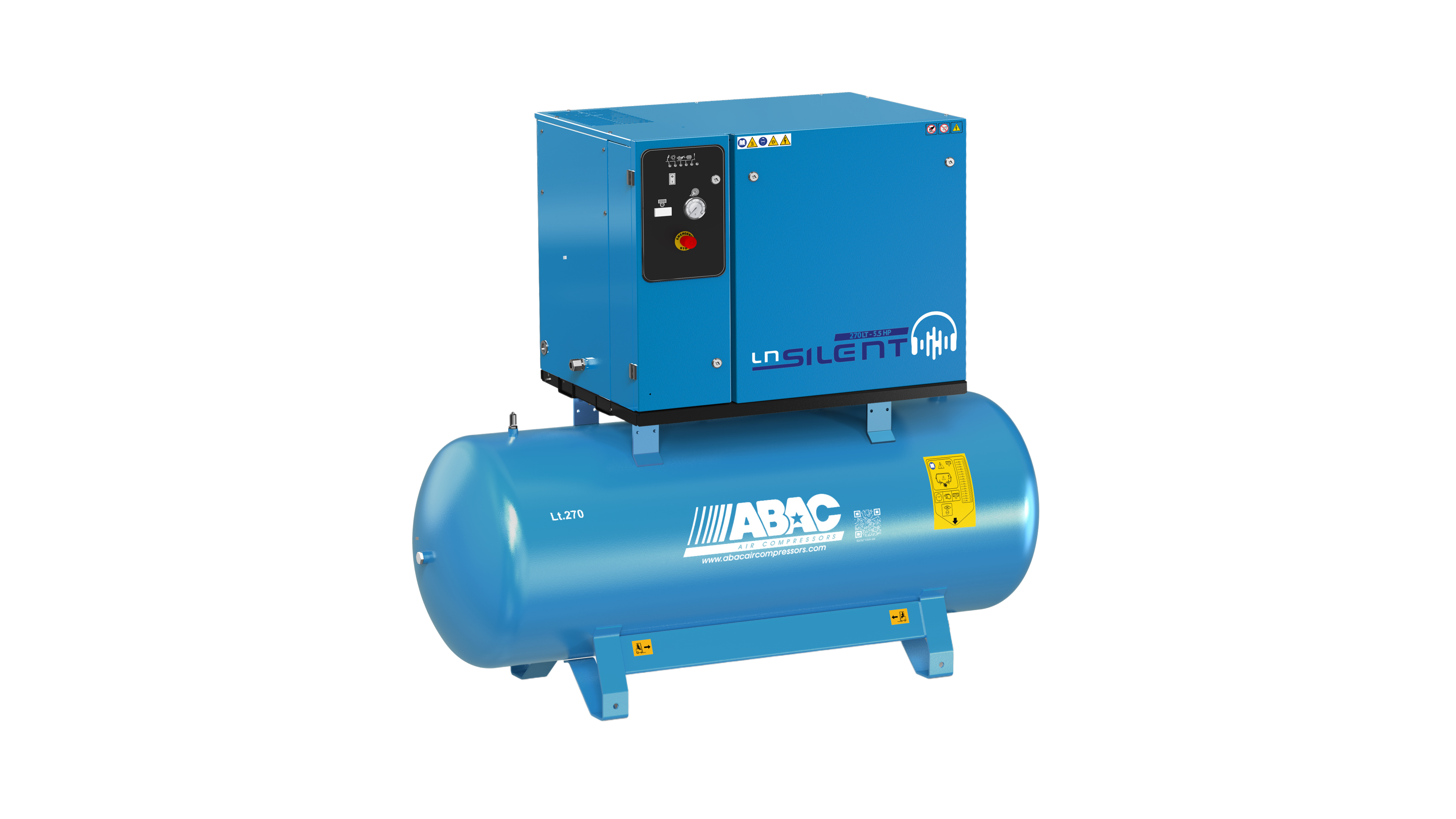

Maximize air delivery and minimize noise with the ABAC LN2 B6000 500L T7.5 DOL Silenced Air Compressor.
This 400 volt machine delivers 20 CFM while operating at a quiet decibel level. Ideal for industrial settings, it provides maximum efficiency and functionality for all air-powered equipment.
| Specification | Value |
|---|---|
| EAN Code | 8024900716368 |
| Max Pressure (bar) | 11 Bar |
| Max Pressure (psi) | 160 PSI |
| Pump Speed | 1150 Rpm |
| Vessel size (lt) | 500 Liter |
| Vessel Size (gal) | 132 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 660 l/min |
| Air Displacement (cfm) | 23.3 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 2.3 Liter |
| Pump Element | B6000 |
| Motor (hp) | 7.5 Hp |
| Motor (kw) | 5.6 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 68 dB(A) |
| Noise Level (LWA) | 88 dB(A) |
| Fuel type | n.a. |
| Product Length | 1943 mm |
| Product Height | 1593 mm |
| Product Width | 738 mm |
| Weight (Kg) | 404 Kg |
