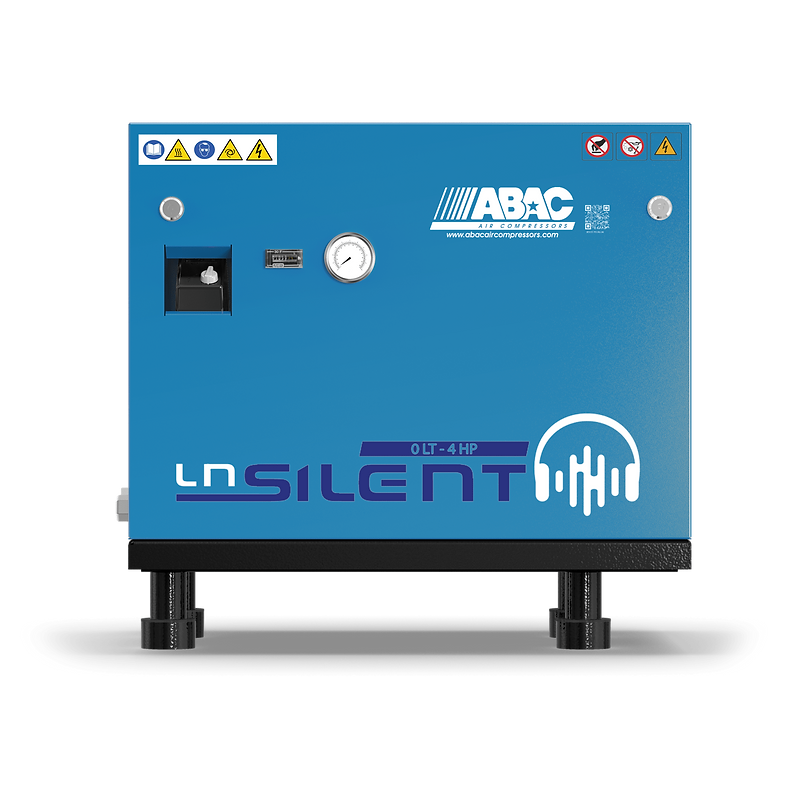

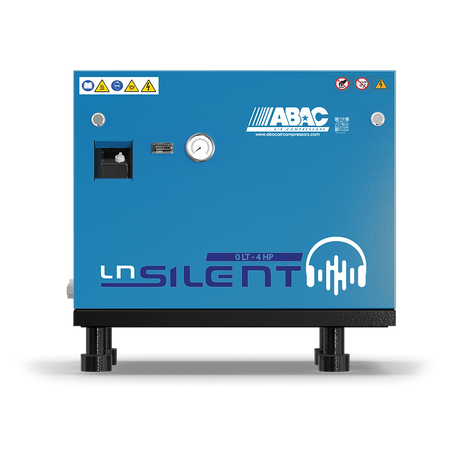

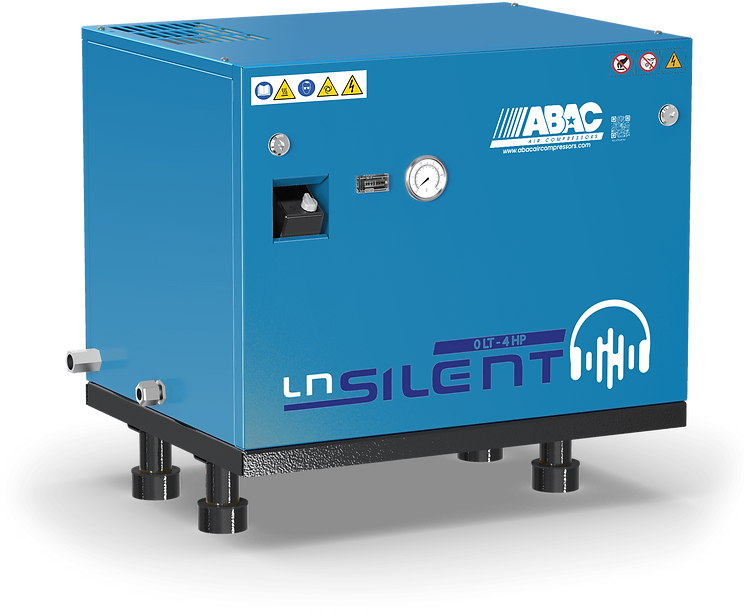

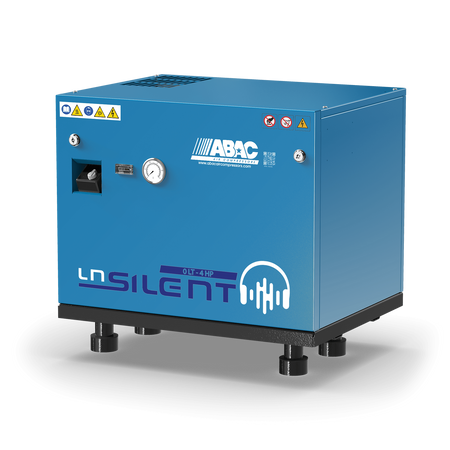

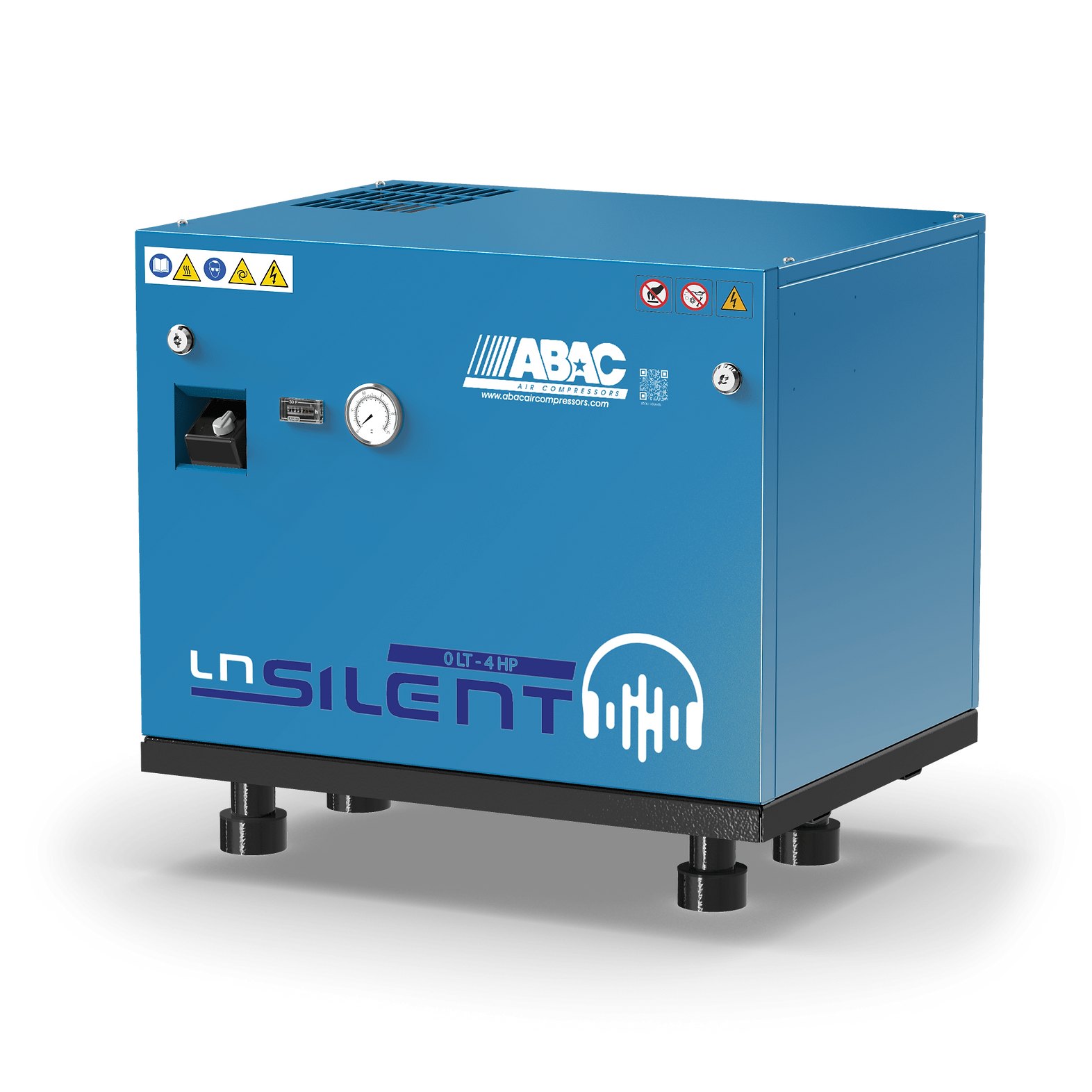

Increase productivity with the ABAC LN1 A49B 0 Silenced Air Compressor. Its 415 volt motor delivers 21.1 CFM for efficient operation.
The base mounted design saves space and reduces noise for a more productive and quieter work environment.
| Specification | Value |
|---|---|
| EAN Code | 8024900716221 |
| Max Pressure (bar) | 11 Bar |
| Max Pressure (psi) | 160 PSI |
| Pump Speed | 1400 Rpm |
| Vessel size (lt) | 0 Liter |
| Vessel Size (gal) | 0 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 598 l/min |
| Air Displacement (cfm) | 21.1 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 1.3 Liter |
| Pump Element | A49B |
| Motor (hp) | 5.5 Hp |
| Motor (kw) | 4.1 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 69 dB(A) |
| Noise Level (LWA) | 89 dB(A) |
| Product Length | 750 mm |
| Product Height | 761 mm |
| Product Width | 580 mm |
| Weight (Kg) | 170 Kg |
