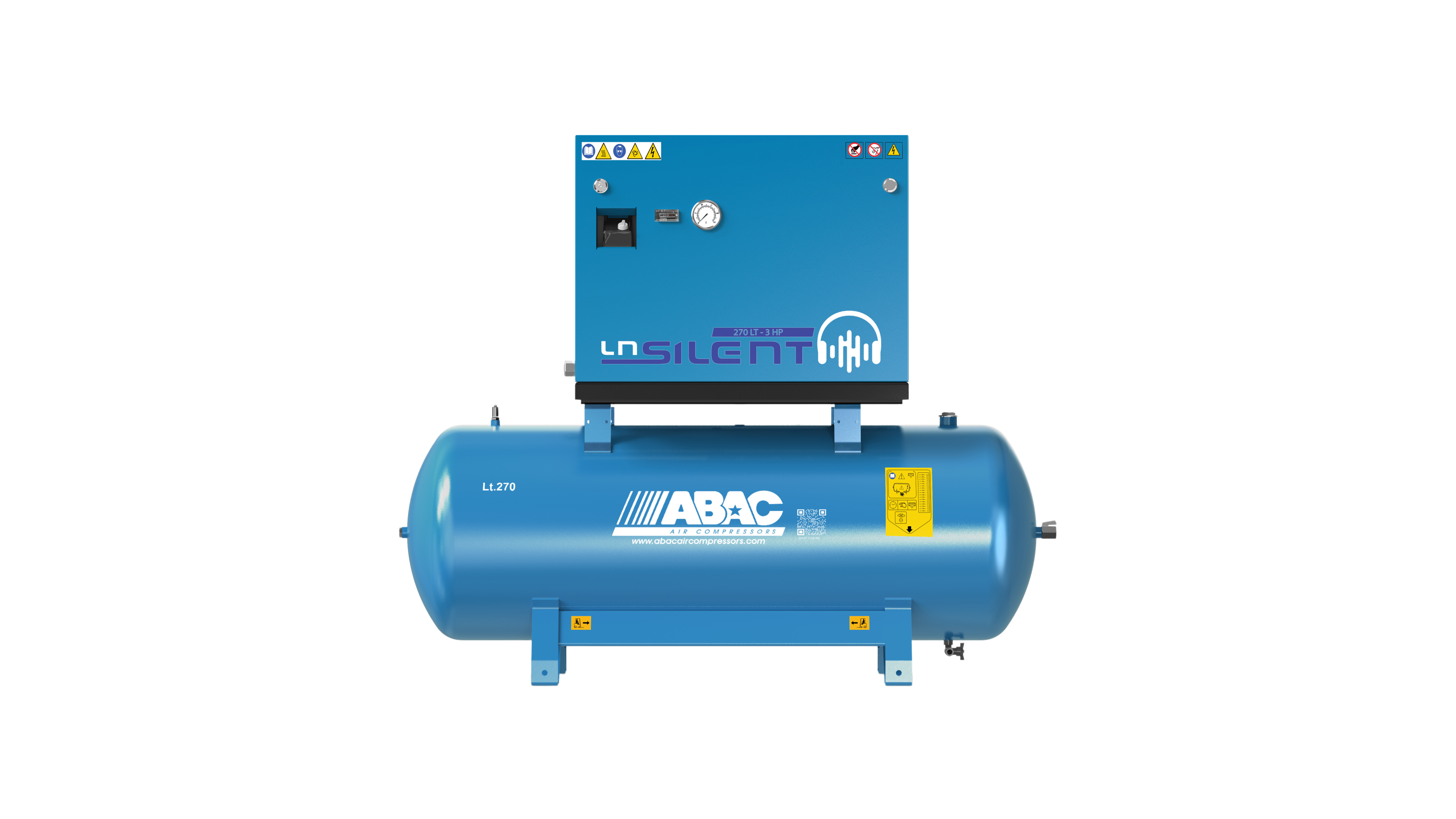

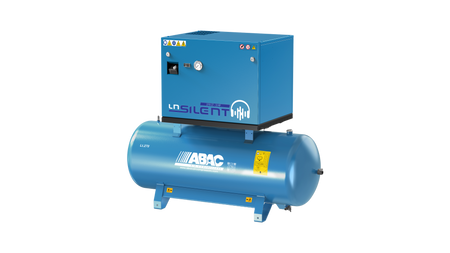

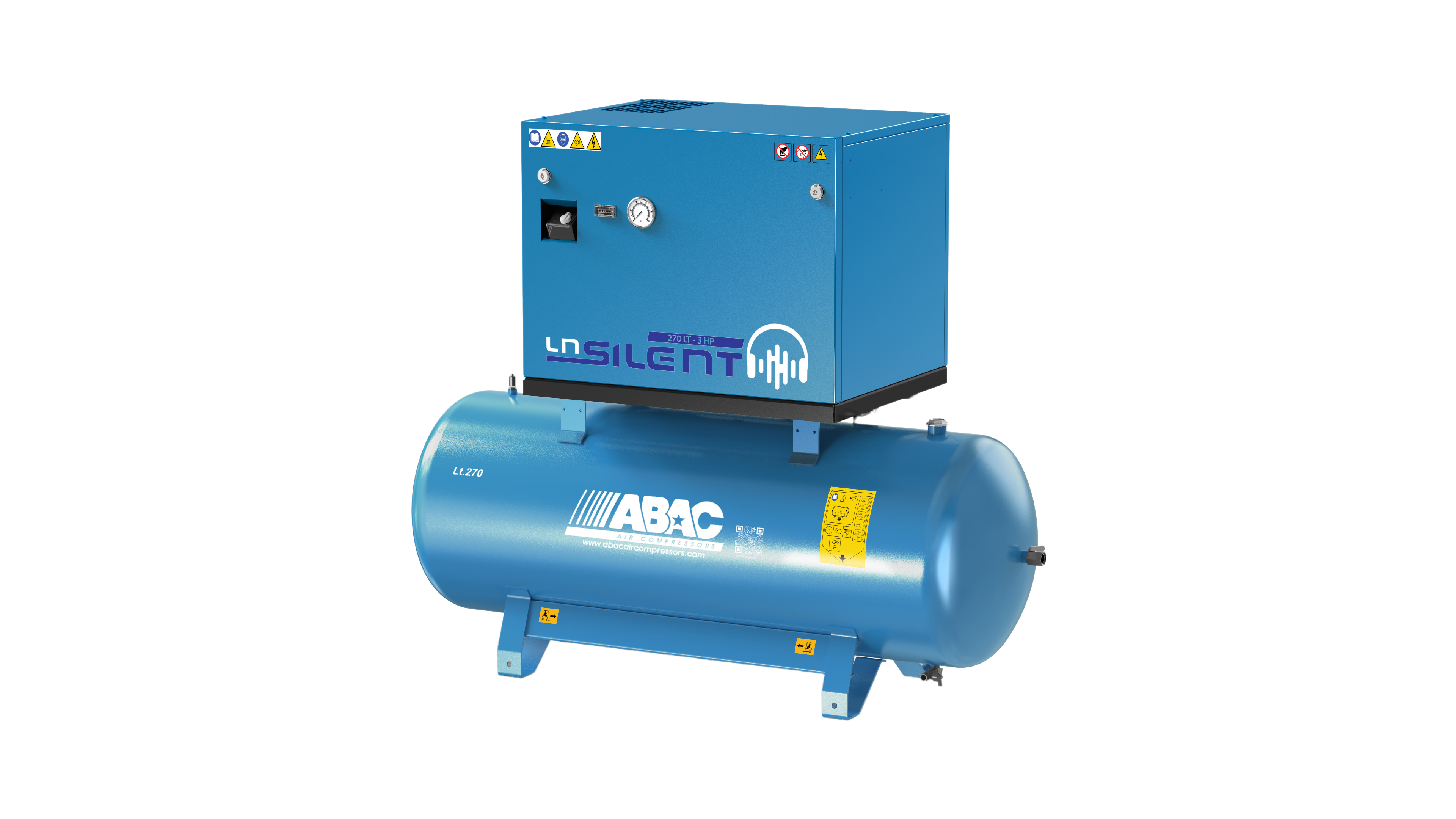

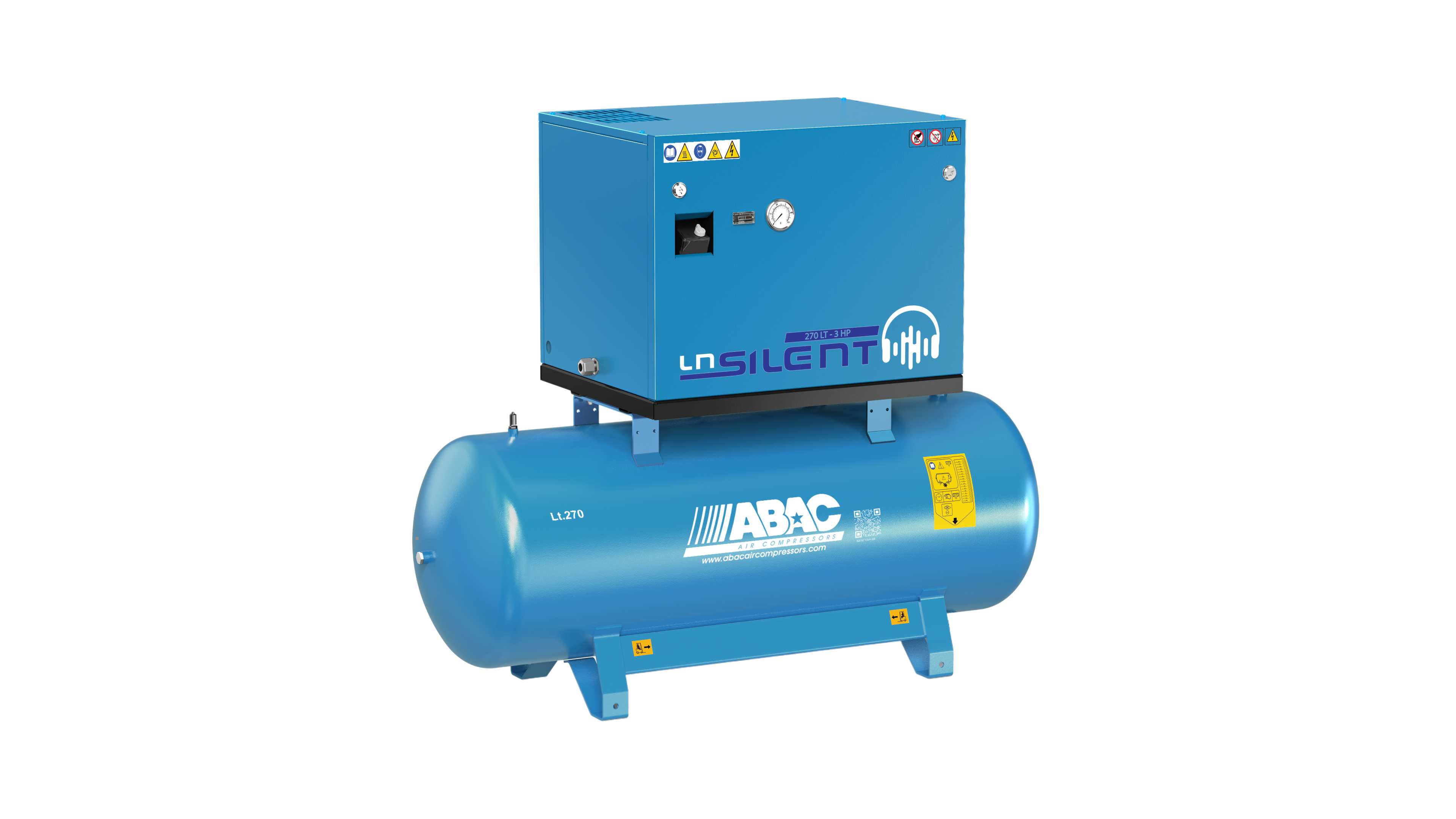

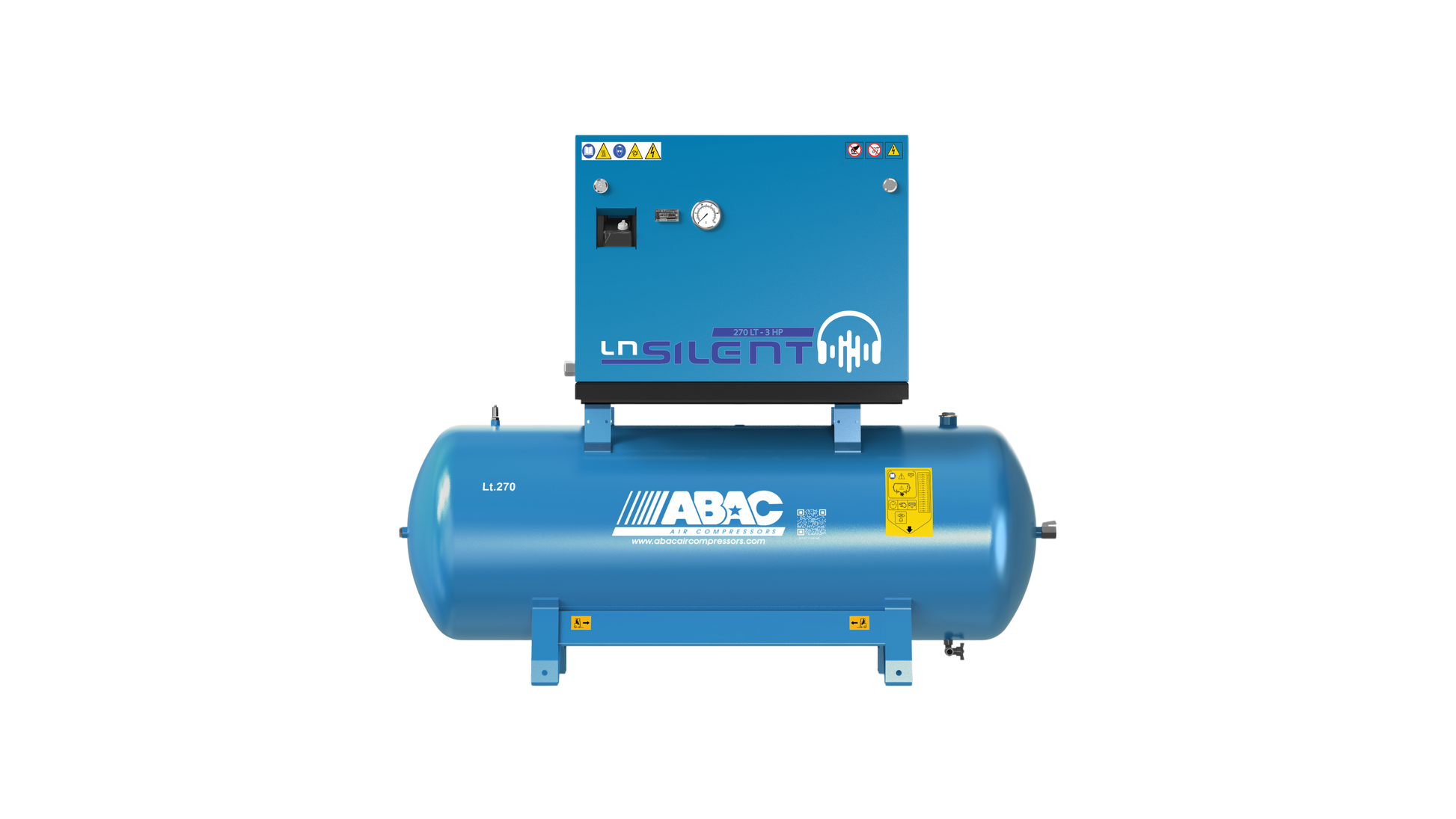

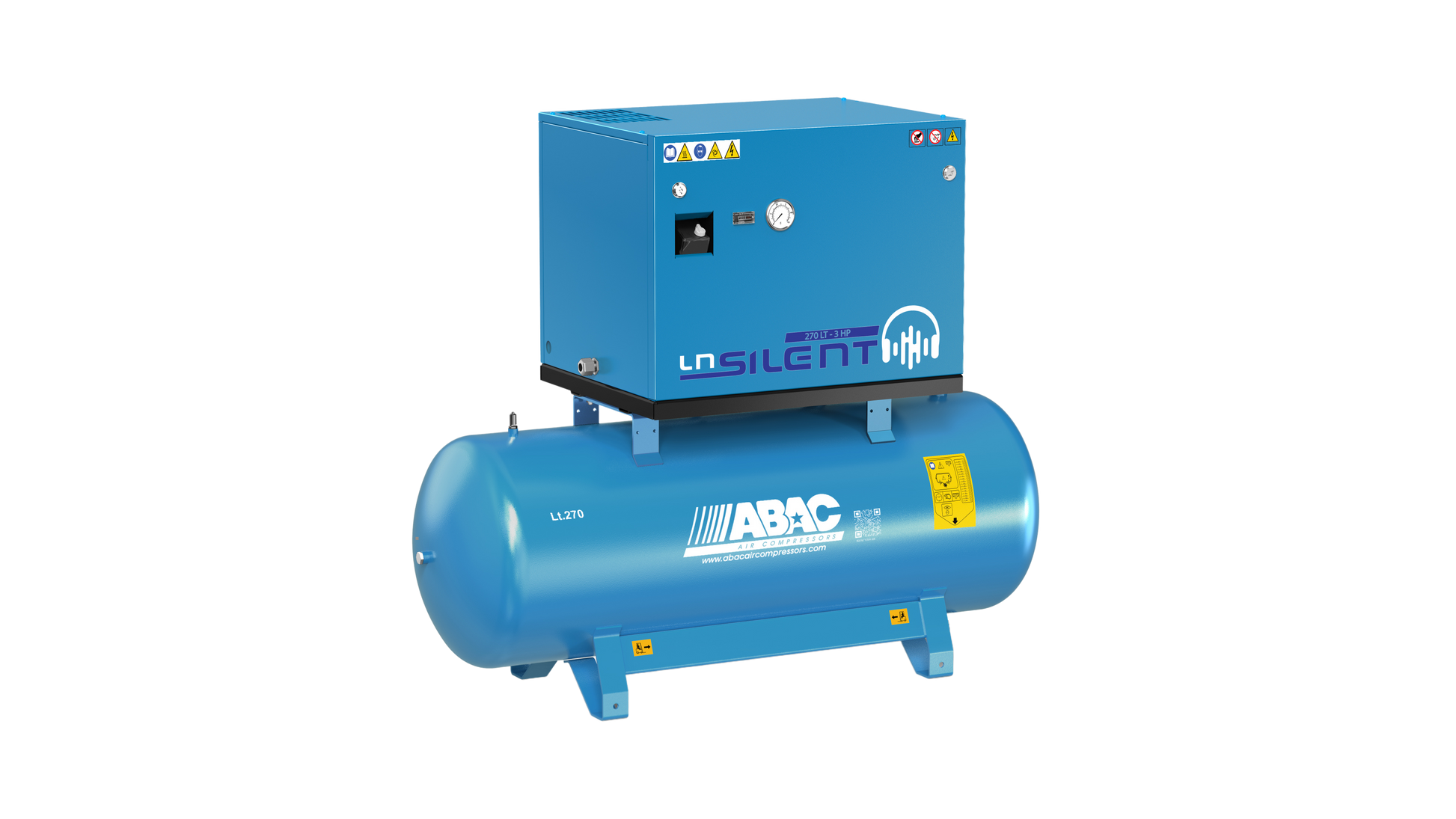

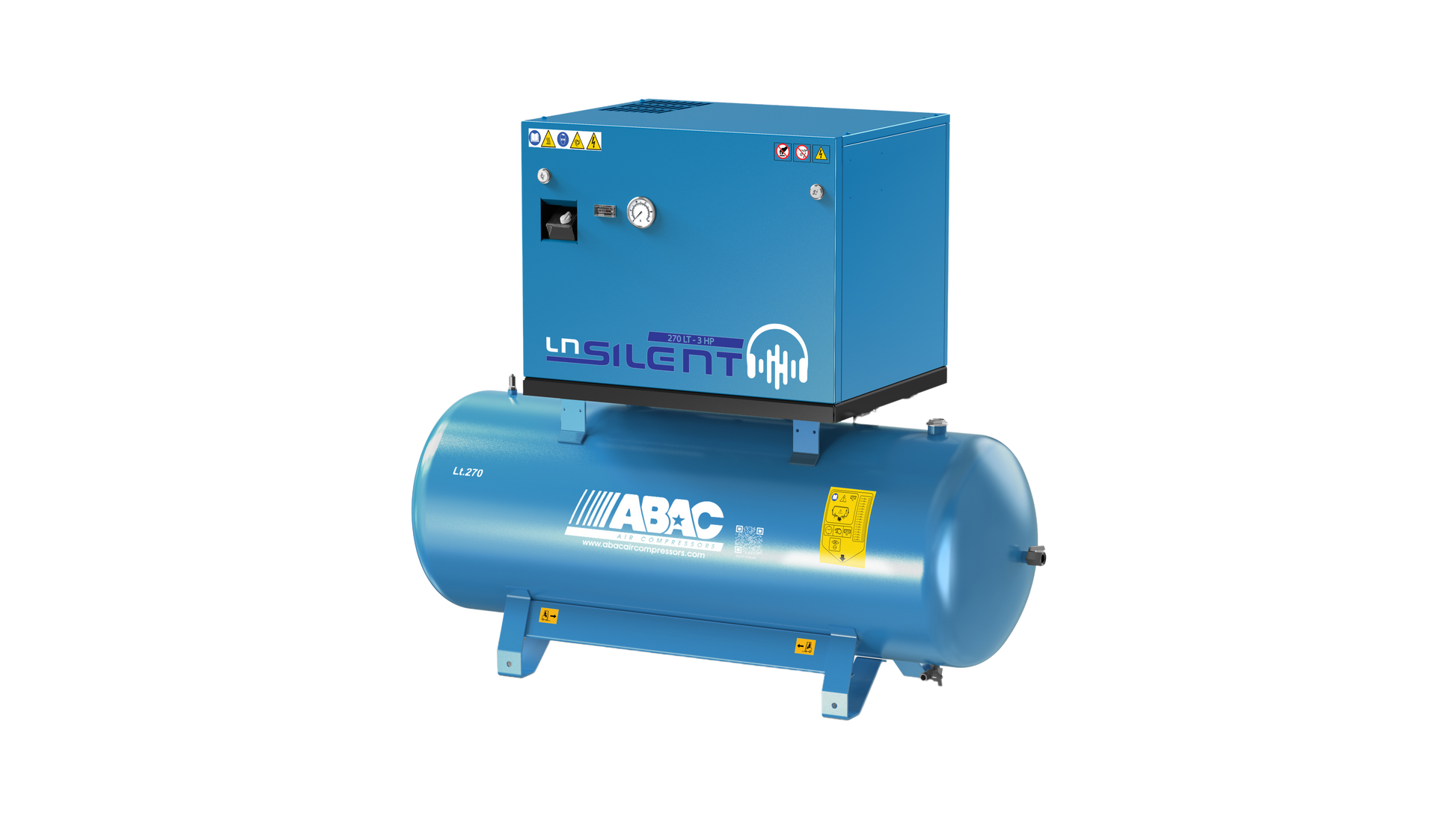

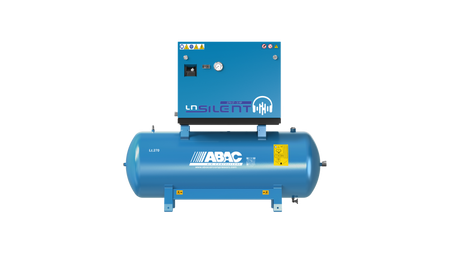

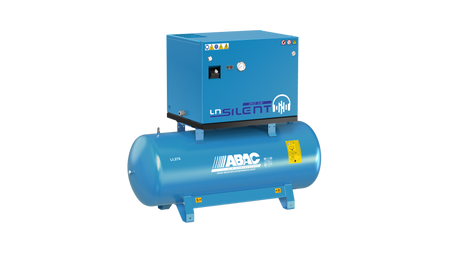

The ABAC LN1 A39B 270L Tank Mounted Silenced Air Compressor offers powerful and efficient performance with a 270L tank, T3 technology, and 415-volt power.
With a flow rate of 14 CFM, this compressor is ideal for industrial use, providing reliable and consistent air supply for various applications.
| Specification | Value |
|---|---|
| EAN Code | 8024900716122 |
| Max Pressure (bar) | 10 Bar |
| Max Pressure (psi) | 145 PSI |
| Pump Speed | 1050 Rpm |
| Vessel size (lt) | 270 Liter |
| Vessel Size (gal) | 71 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 393 l/min |
| Air Displacement (cfm) | 13.9 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 0.8 Liter |
| Pump Element | A39B |
| Motor (hp) | 3 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 65 dB(A) |
| Noise Level (LWA) | 85 dB(A) |
| Product Length | 1522 mm |
| Product Height | 1242 mm |
| Product Width | 580 mm |
| Weight (Kg) | 248 Kg |
