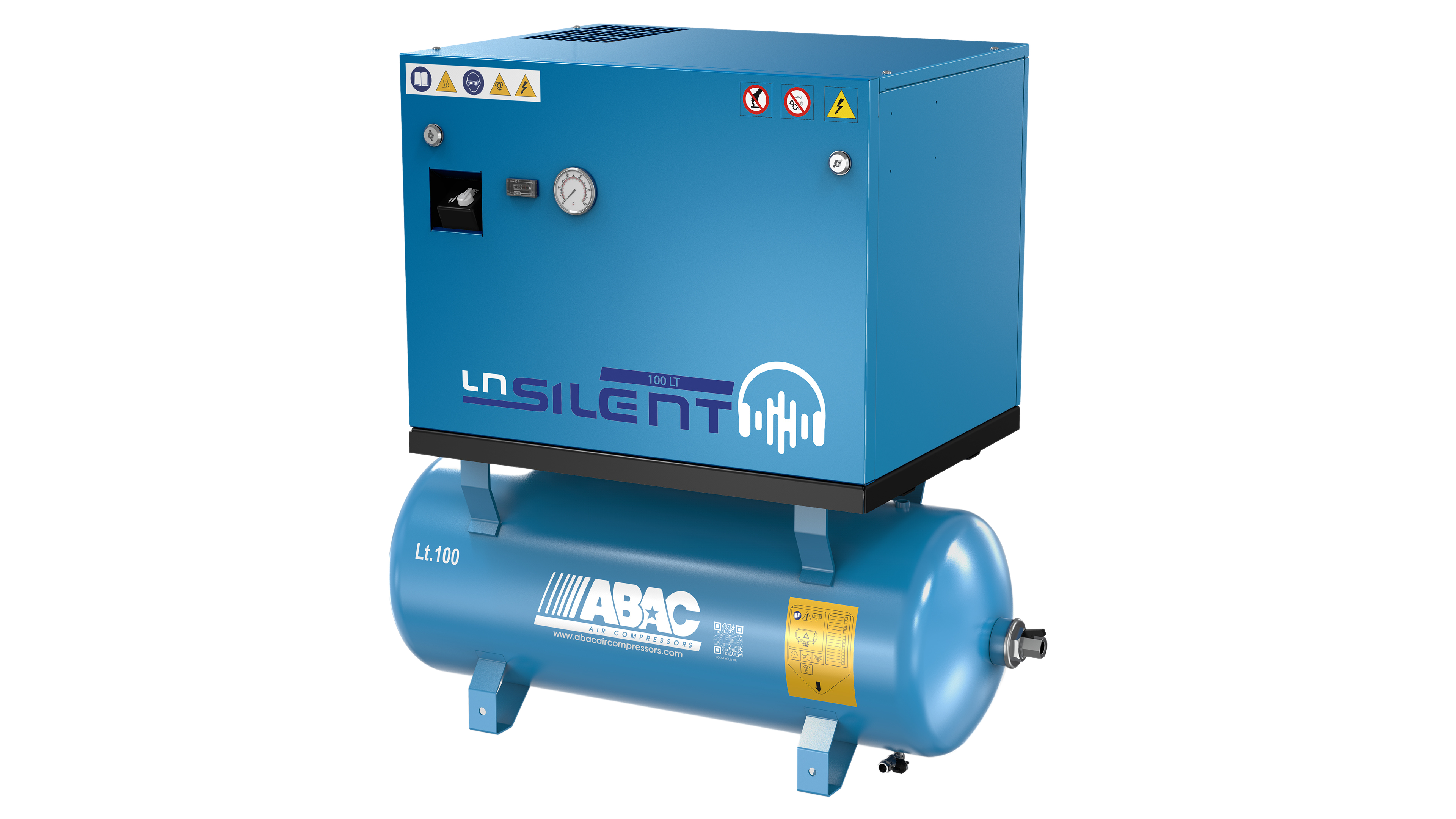

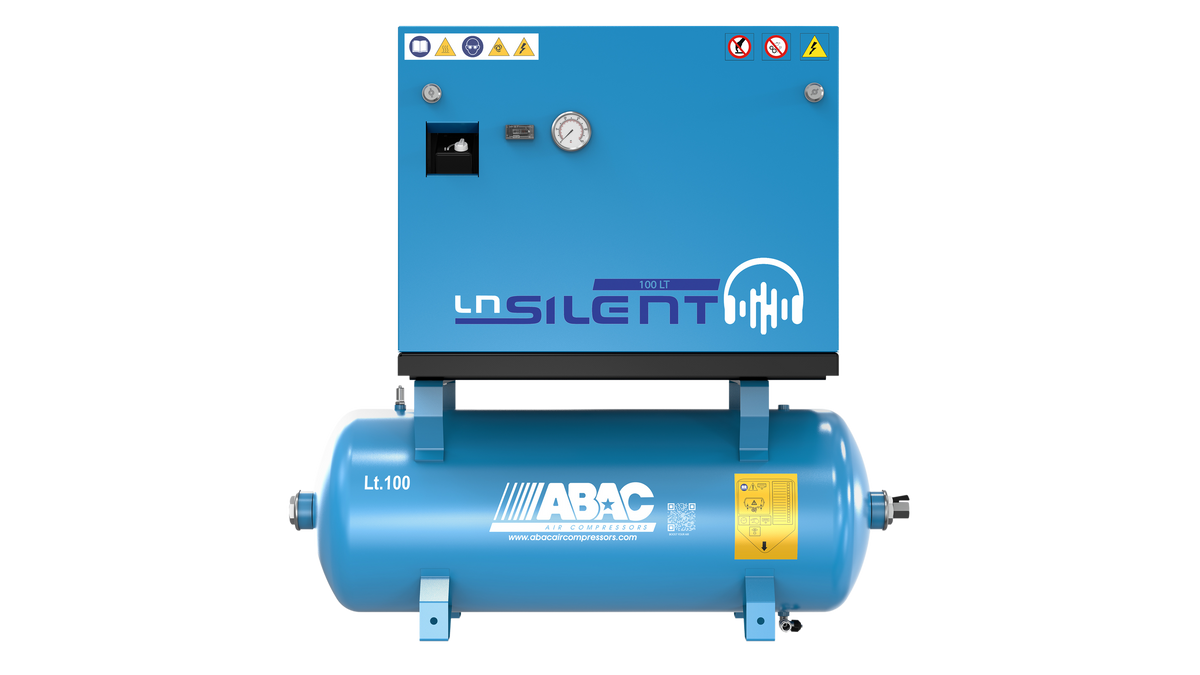

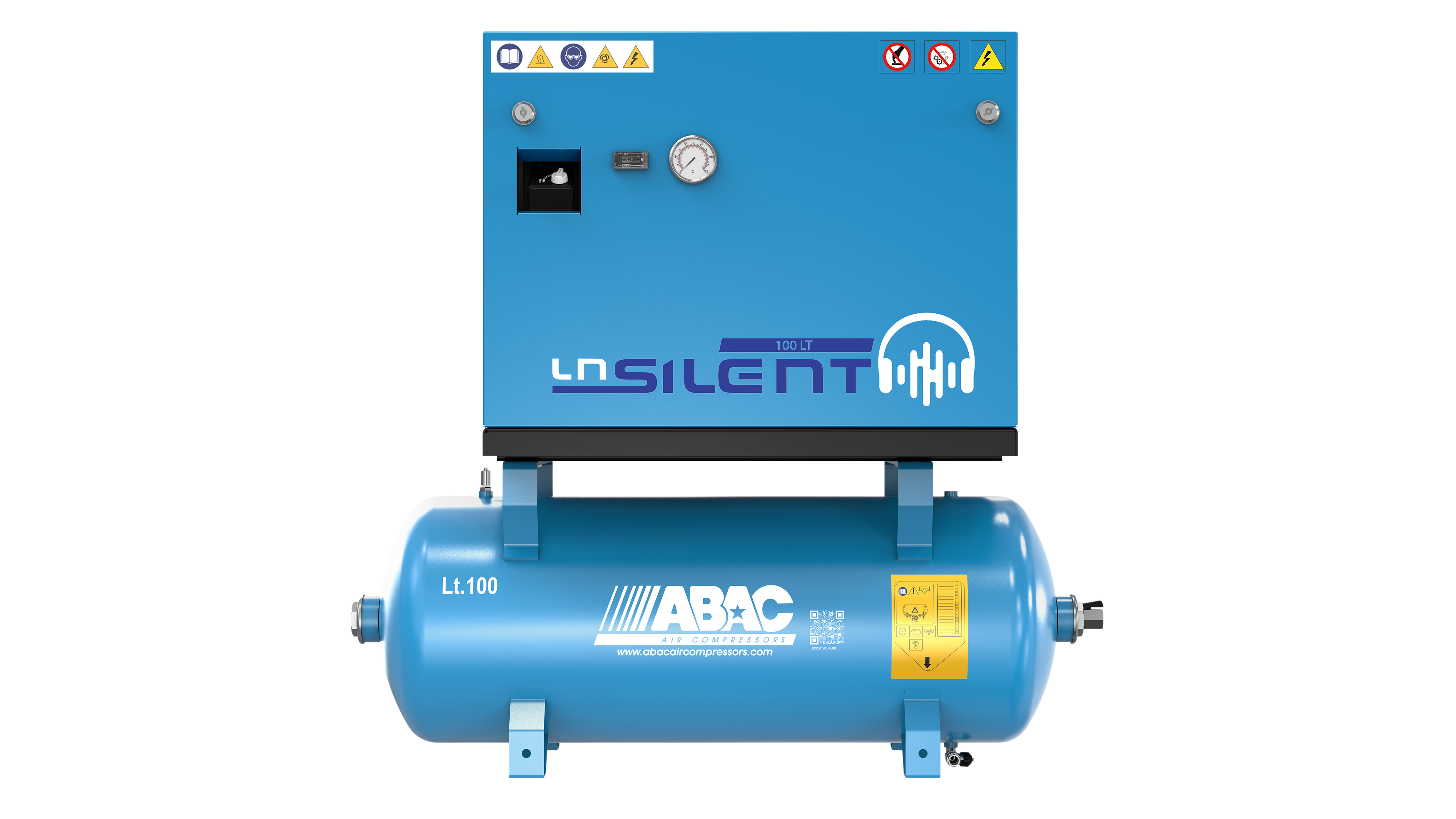

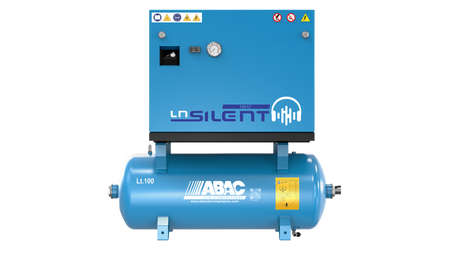

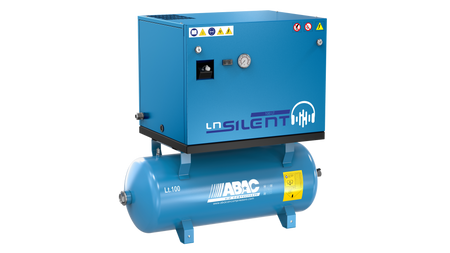

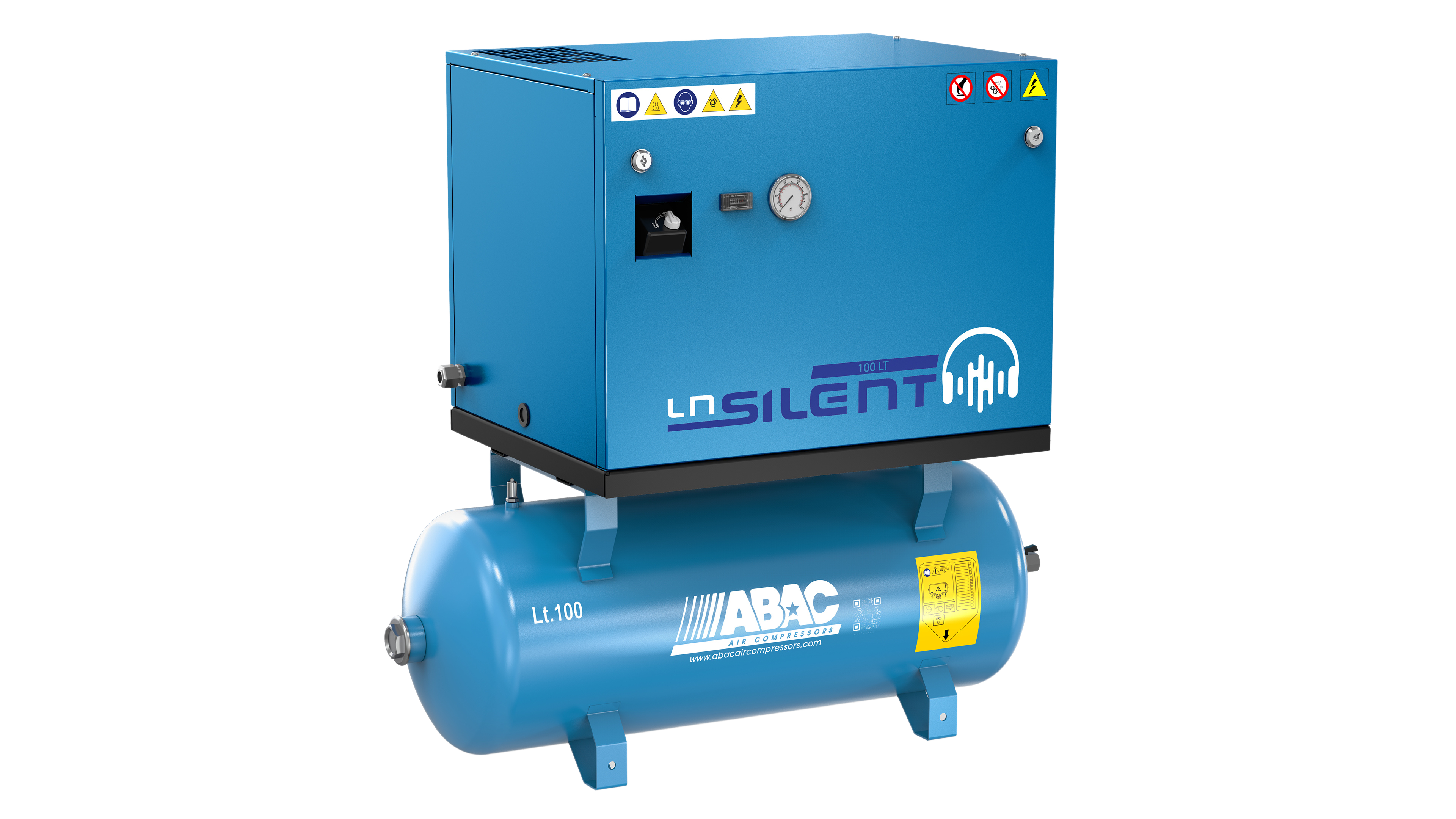

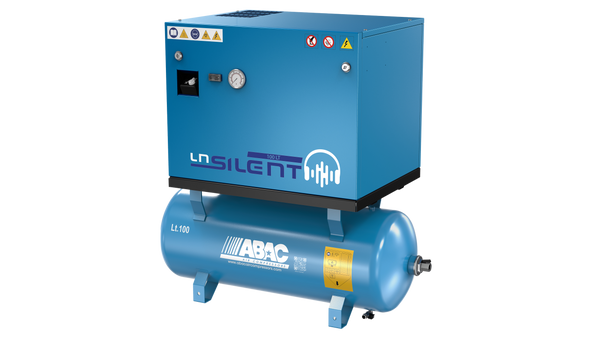

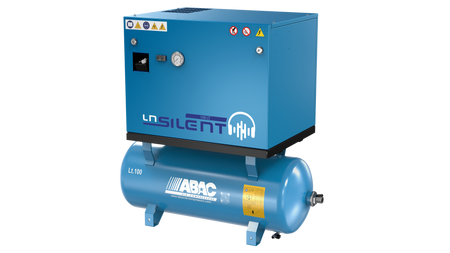

The ABAC LN1 A39B 100L Tank Mounted Silenced Air Compressor T3 is a powerful and efficient solution for all your air compression needs. With a 415 Volt 14 CFM capacity, this compressor delivers reliable and consistent performance.
Its silenced design minimizes noise pollution, while the 100L tank provides ample storage for continuous use. Trust in ABAC's expertise and invest in their LN1 A39B for maximum productivity.
| Specification | Value |
|---|---|
| EAN Code | 8024900717099 |
| Max Pressure (bar) | 10 Bar |
| Max Pressure (psi) | 145 PSI |
| Pump Speed | 1050 Rpm |
| Vessel size (lt) | 100 Liter |
| Vessel Size (gal) | 26 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 393 l/min |
| Air Displacement (cfm) | 13.9 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 0.8 Liter |
| Pump Element | A39B |
| Motor (hp) | 3 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 65 dB(A) |
| Noise Level (LWA) | 85 dB(A) |
| Product Length | 1067 mm |
| Product Height | 1060 mm |
| Product Width | 580 mm |
| Weight (Kg) | 180 Kg |
