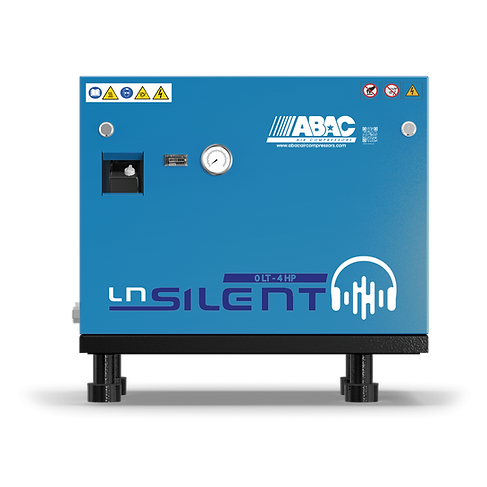

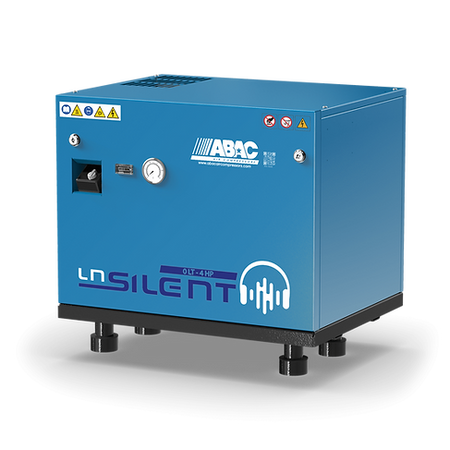

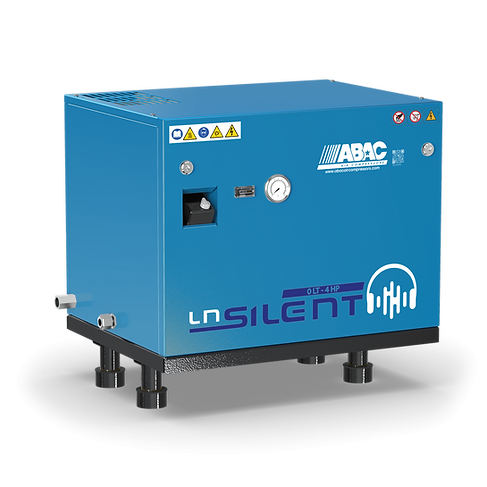

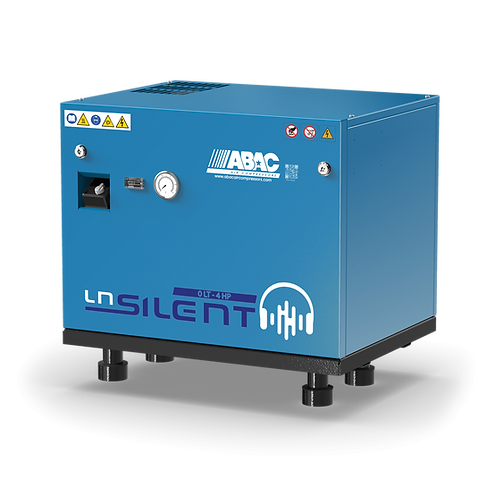

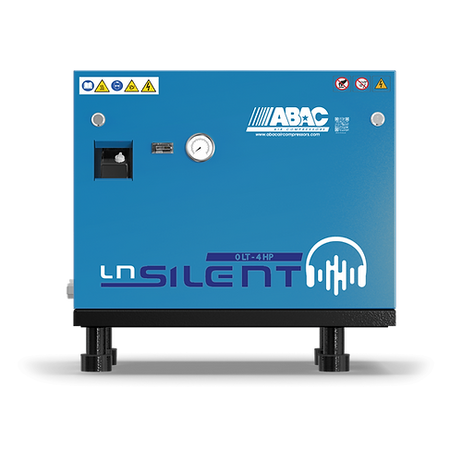

The ABAC LN1 A39B 0 Base Mounted Silenced Air Compressor T4 is a reliable and efficient solution for your air compression needs.
With a 415 Volt motor, it provides consistent performance at 17 CFM. The silenced design ensures a quiet operation, making it suitable for various environments.
| Specification | Value |
|---|---|
| EAN Code | 8024900716153 |
| Max Pressure (bar) | 10 Bar |
| Max Pressure (psi) | 145 PSI |
| Pump Speed | 1300 Rpm |
| Vessel size (lt) | 0 Liter |
| Vessel Size (gal) | 0 Gal |
| Configuration | Stationary |
| Air Displacement (l/min) | 486 l/min |
| Air Displacement (cfm) | 17.2 Cfm |
| Lubrication | Oil Lubricated |
| Oil capacity | 0.8 Liter |
| Pump Element | A39B |
| Motor (hp) | 4 Hp |
| Motor (kw) | 3 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
| Noise Level (LPA) | 68 dB(A) |
| Noise Level (LWA) | 88 dB(A) |
| Product Length | 750 mm |
| Product Height | 761 mm |
| Product Width | 580 mm |
| Weight (Kg) | 170 Kg |
