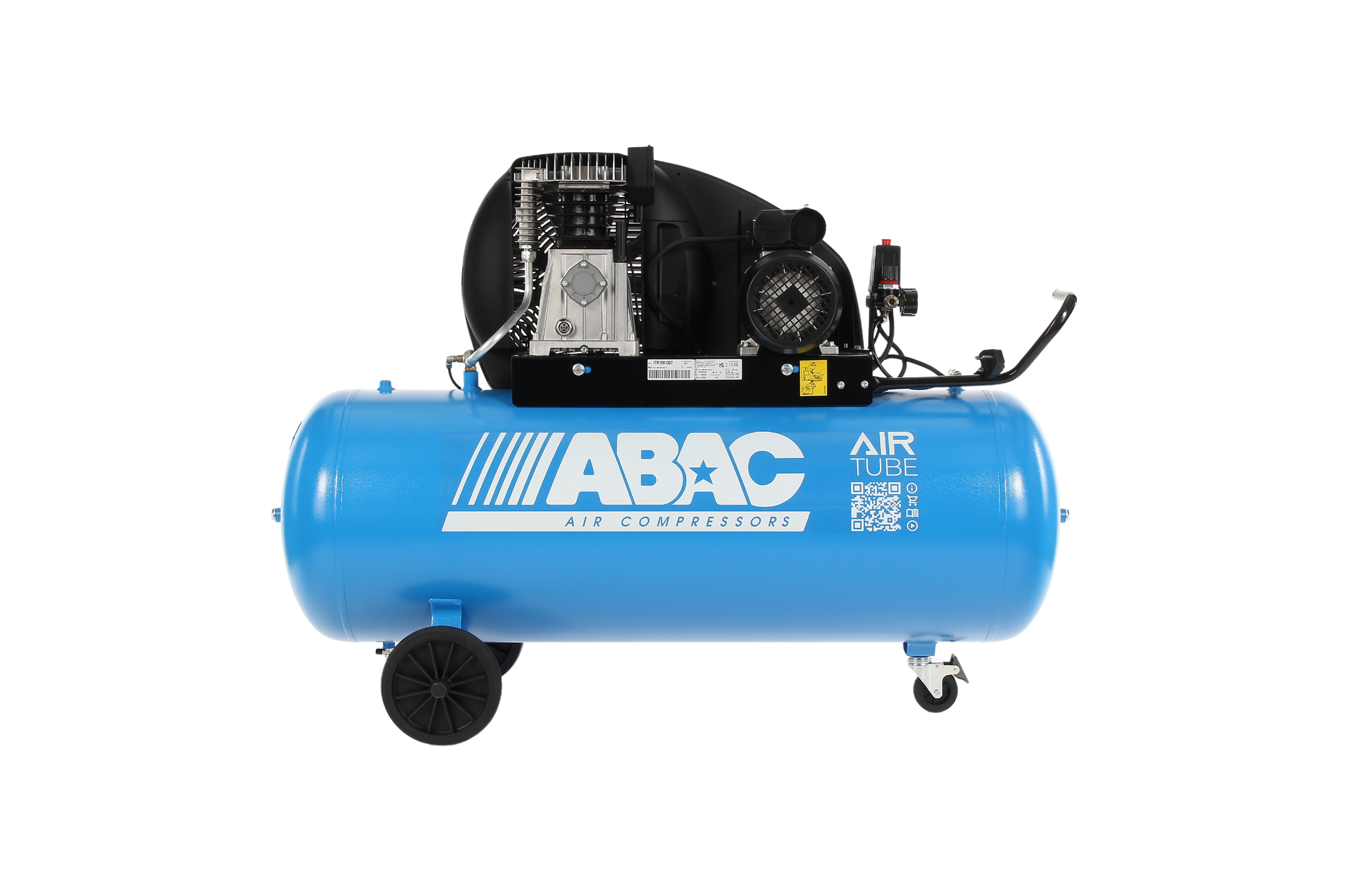

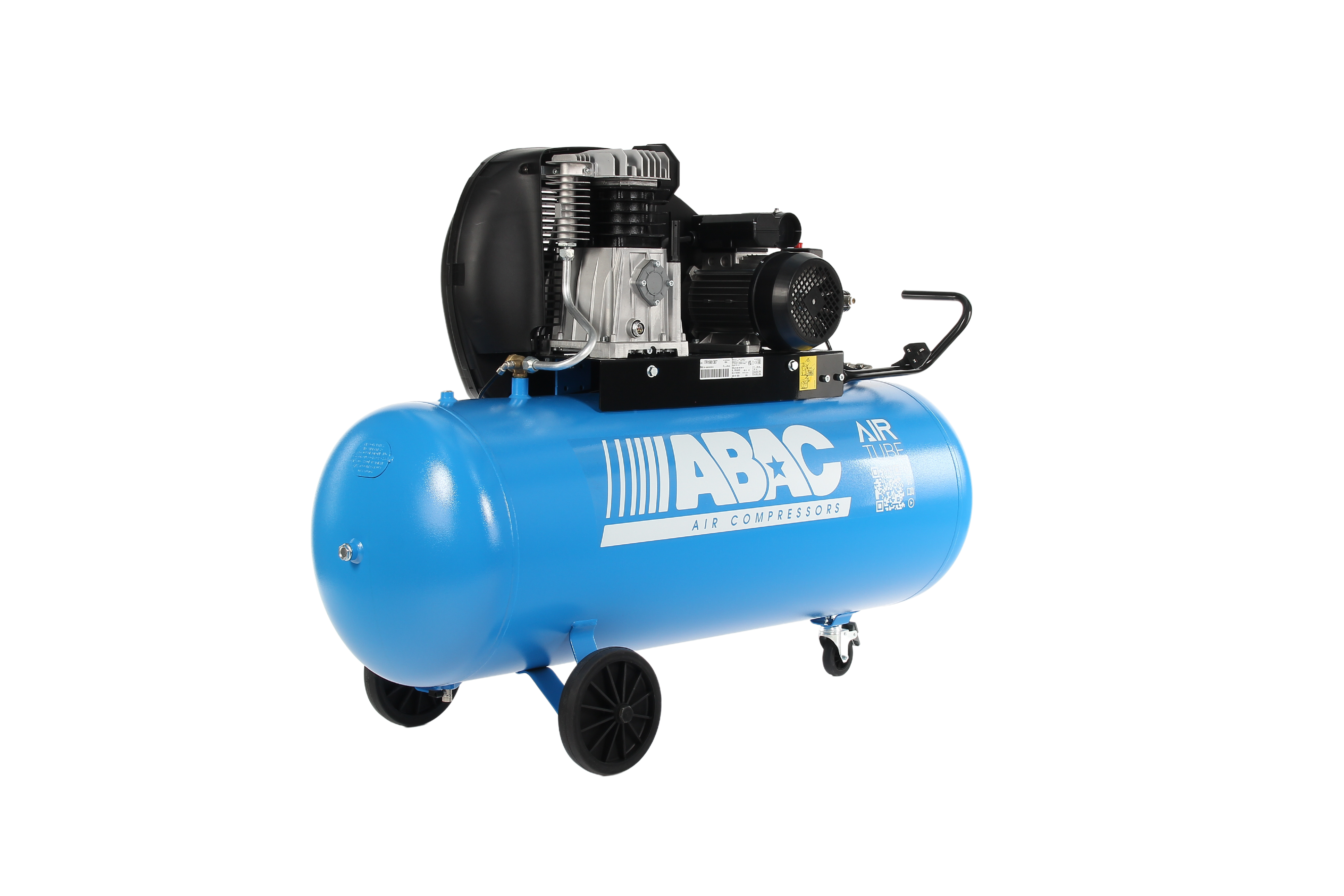

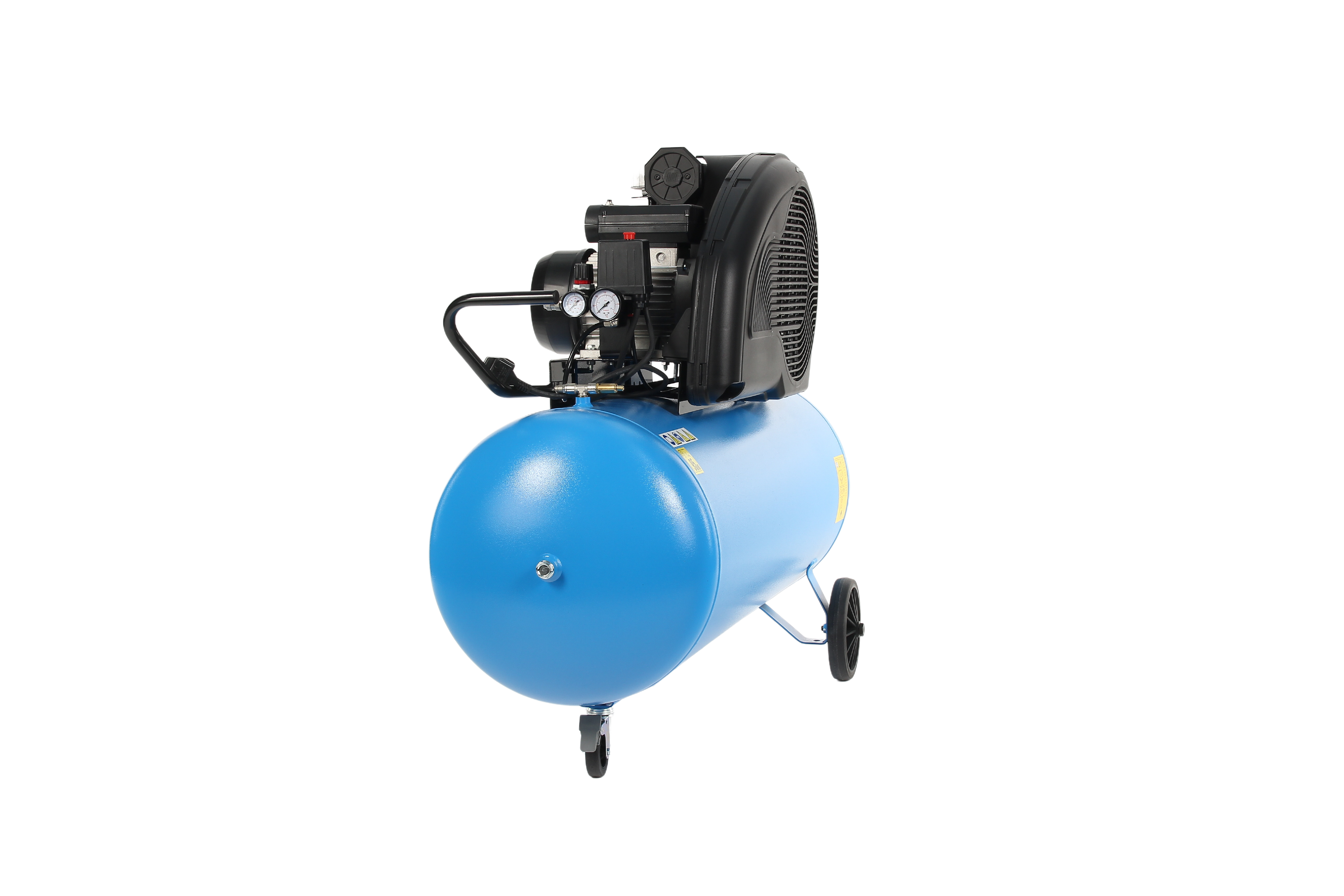

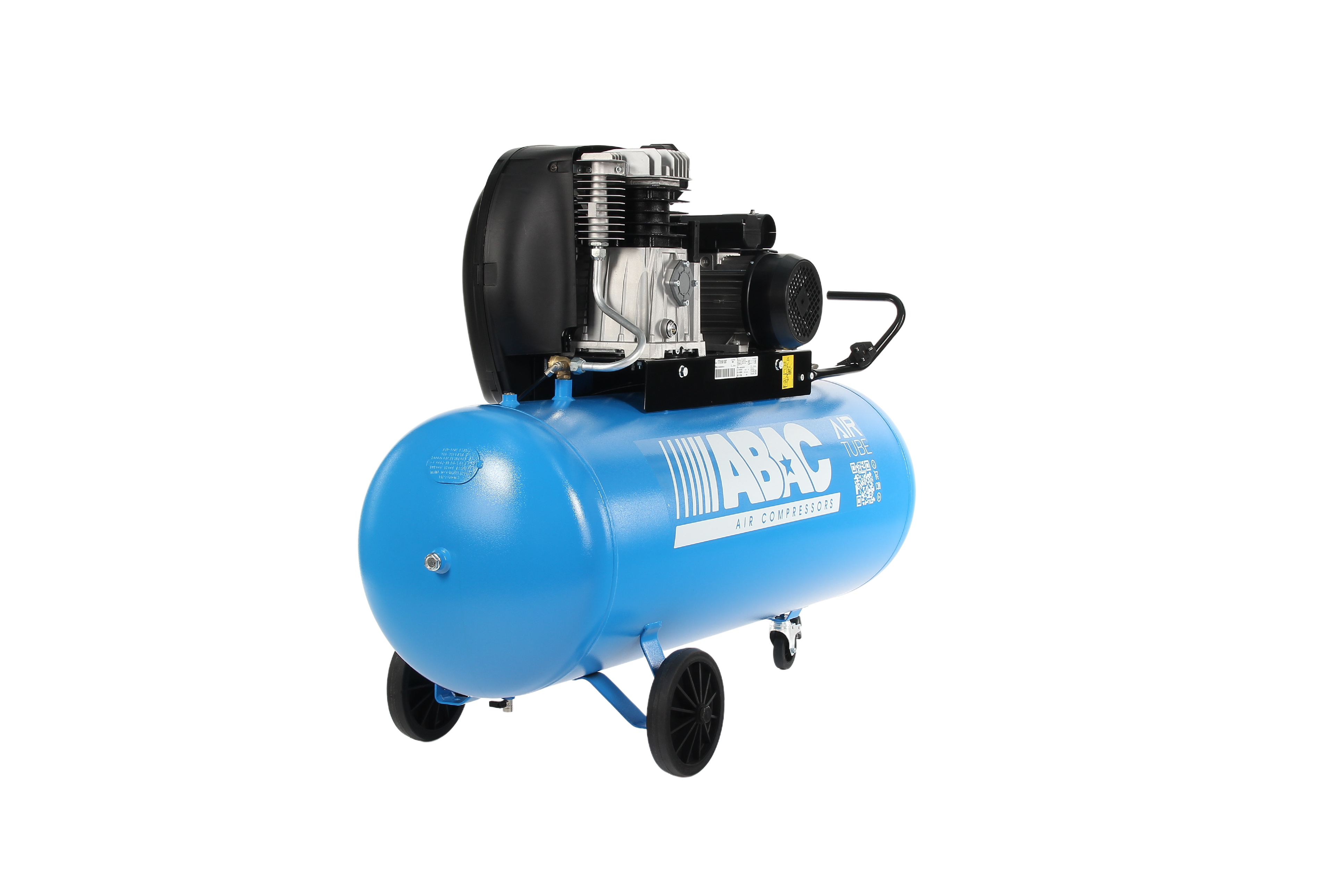

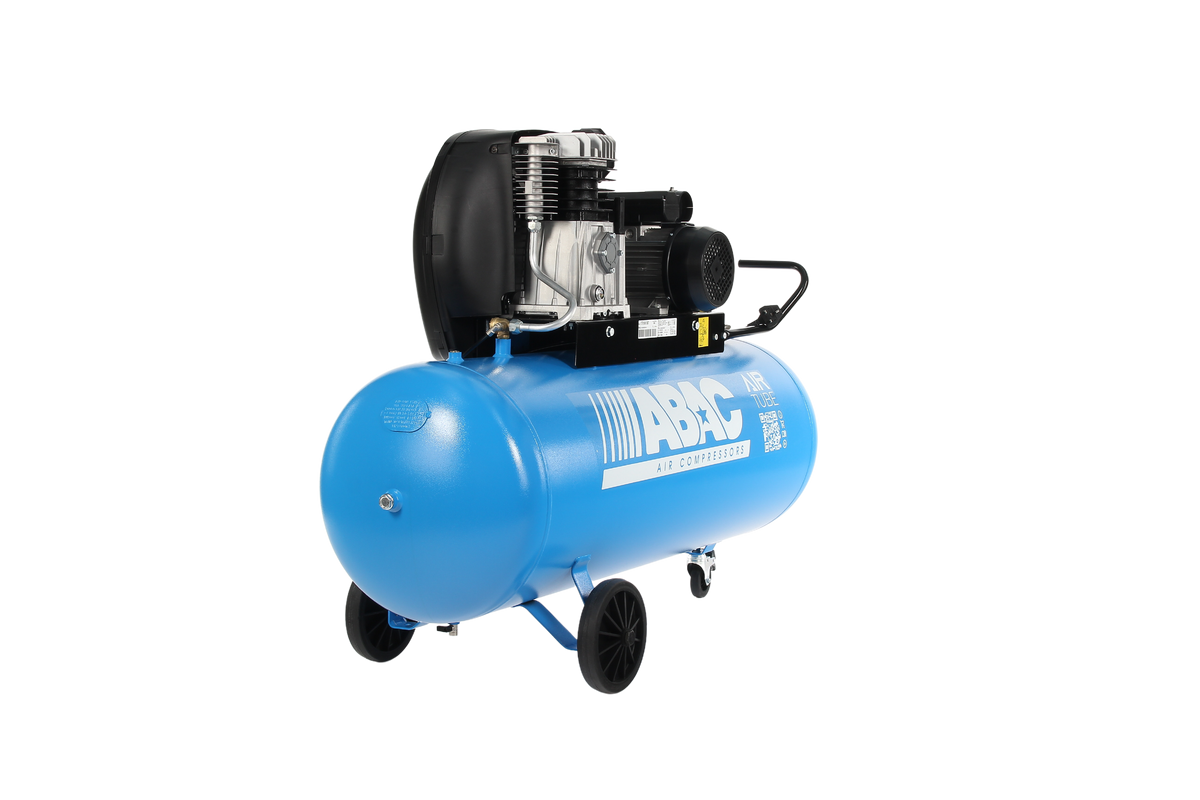

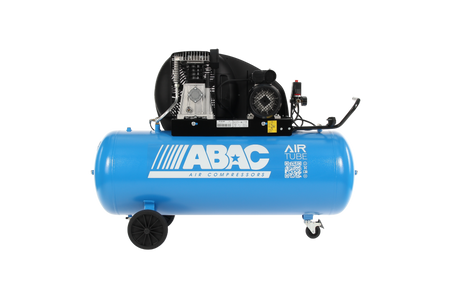

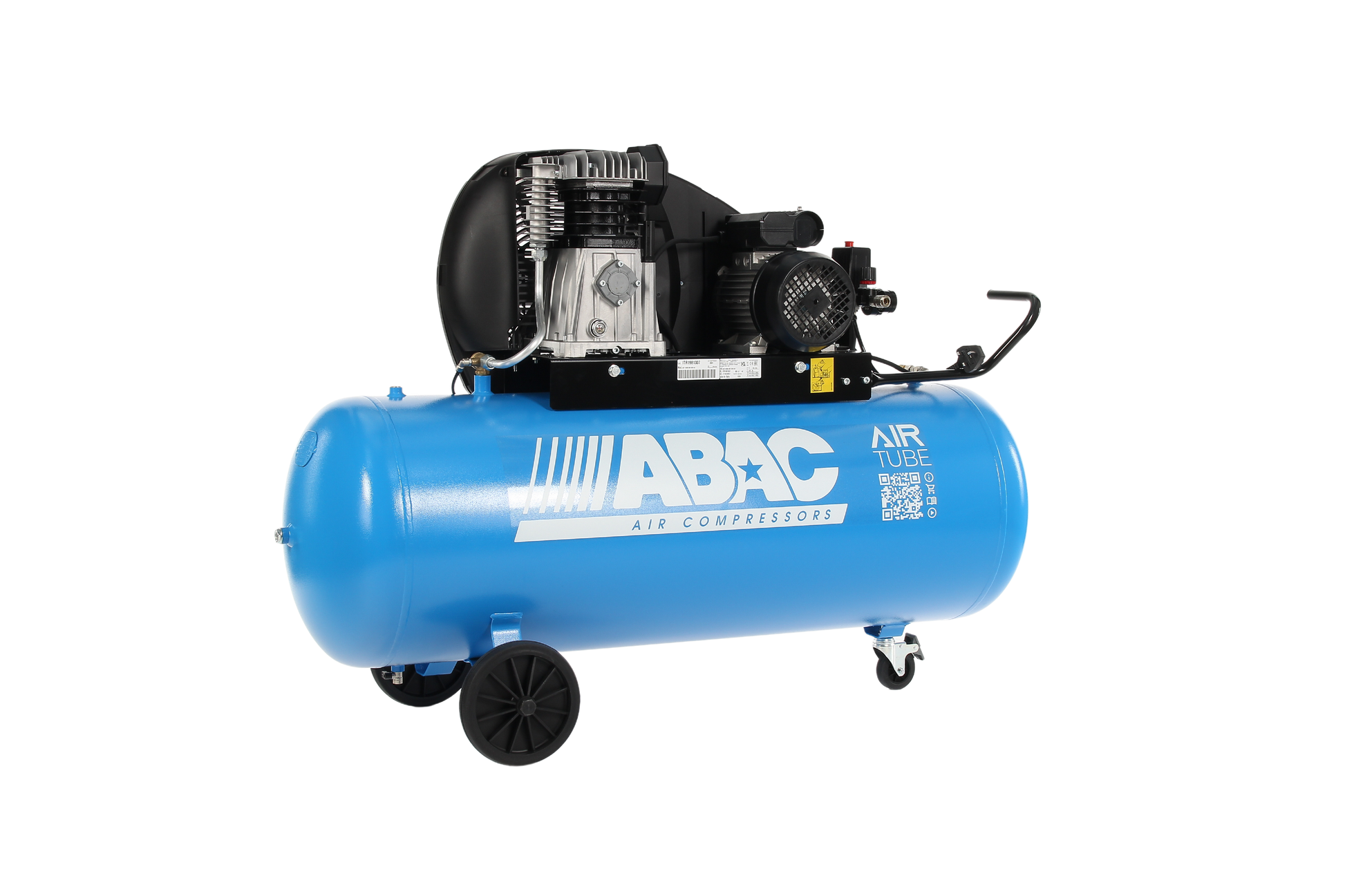

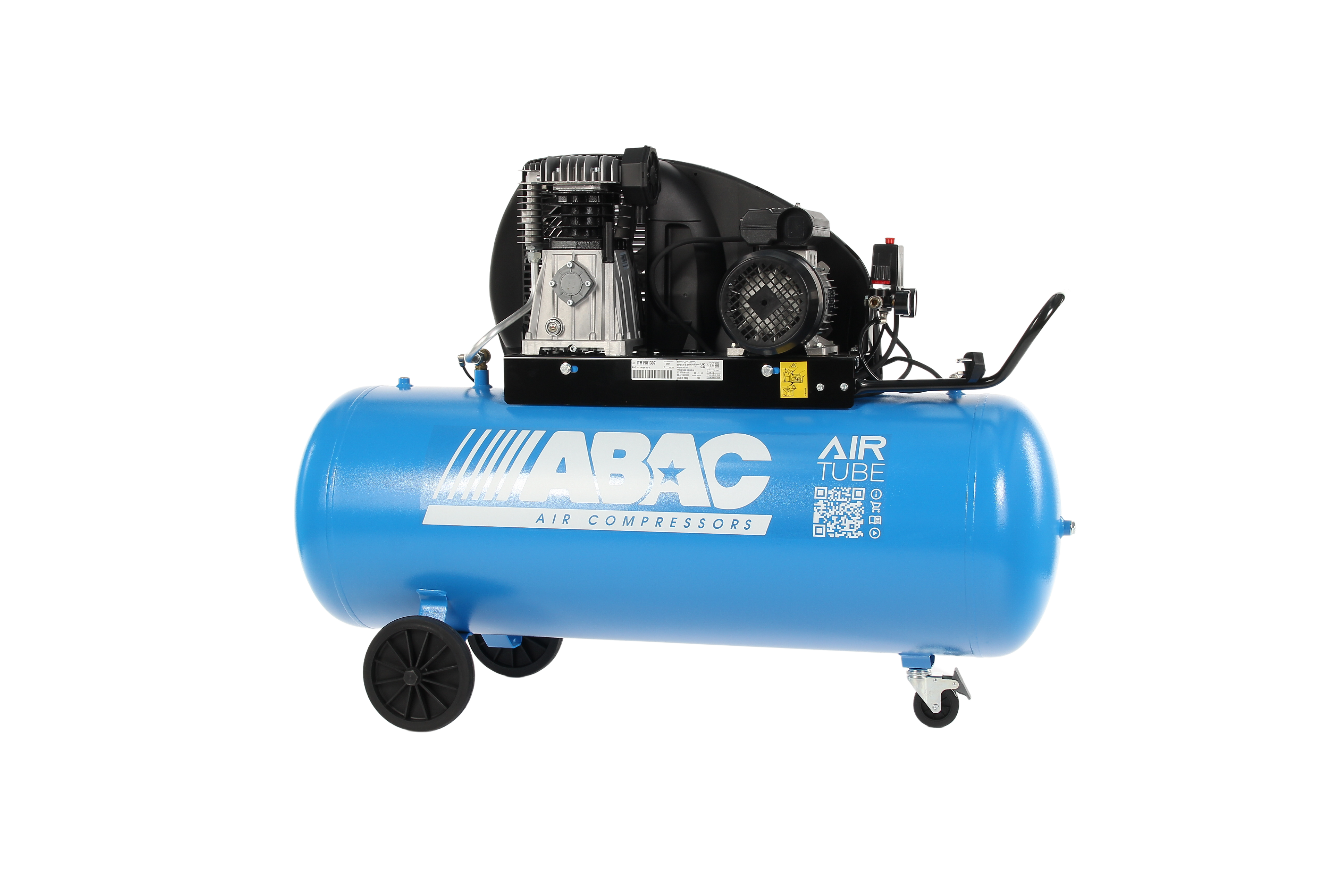

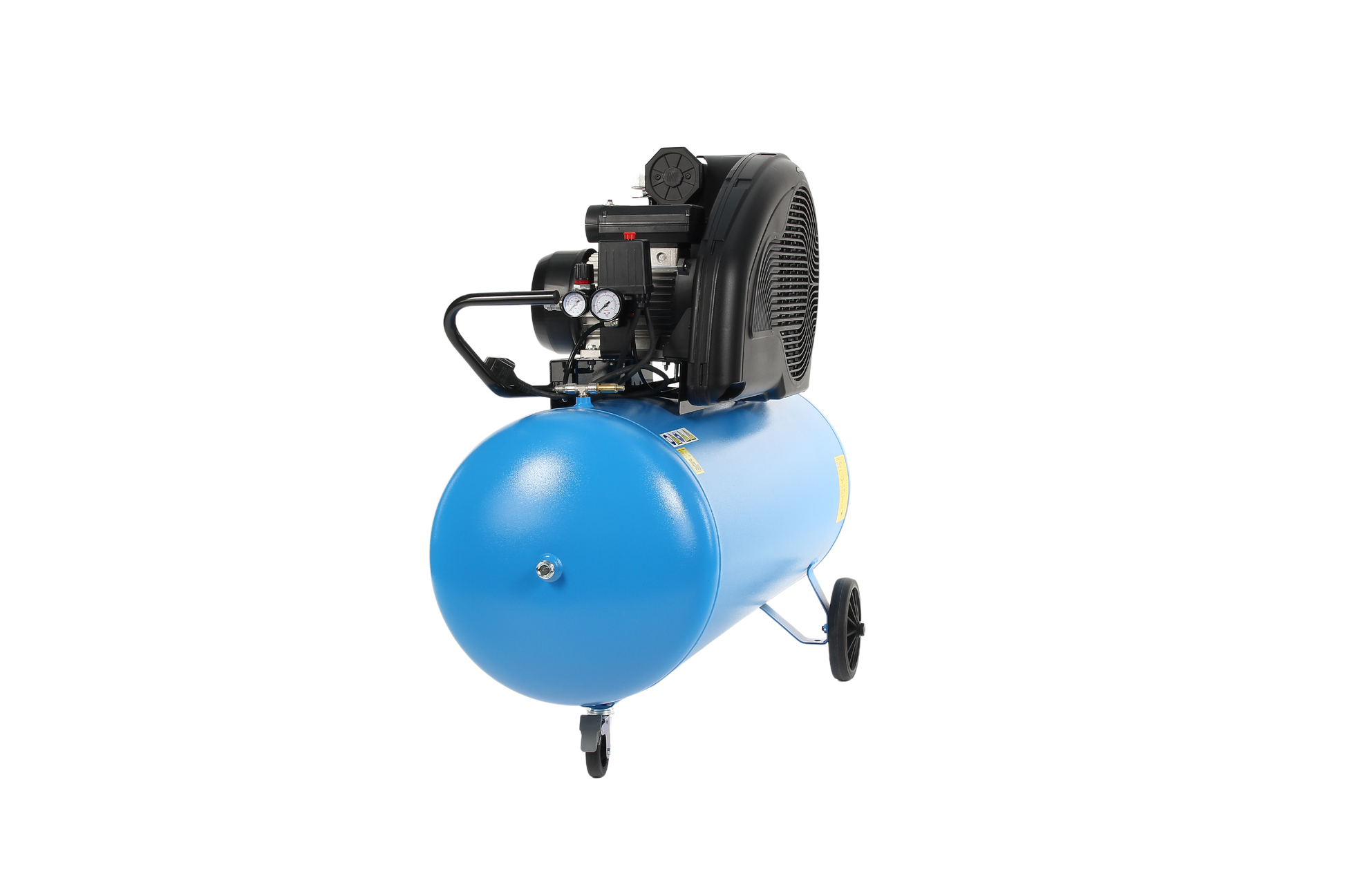

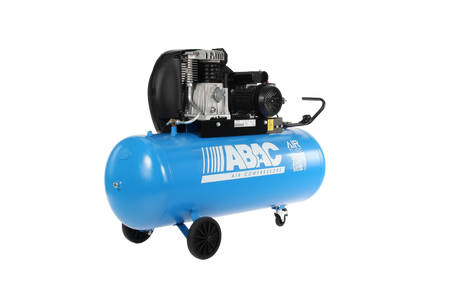

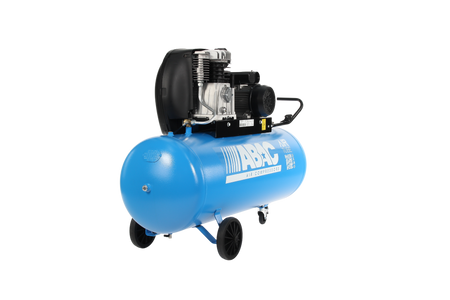

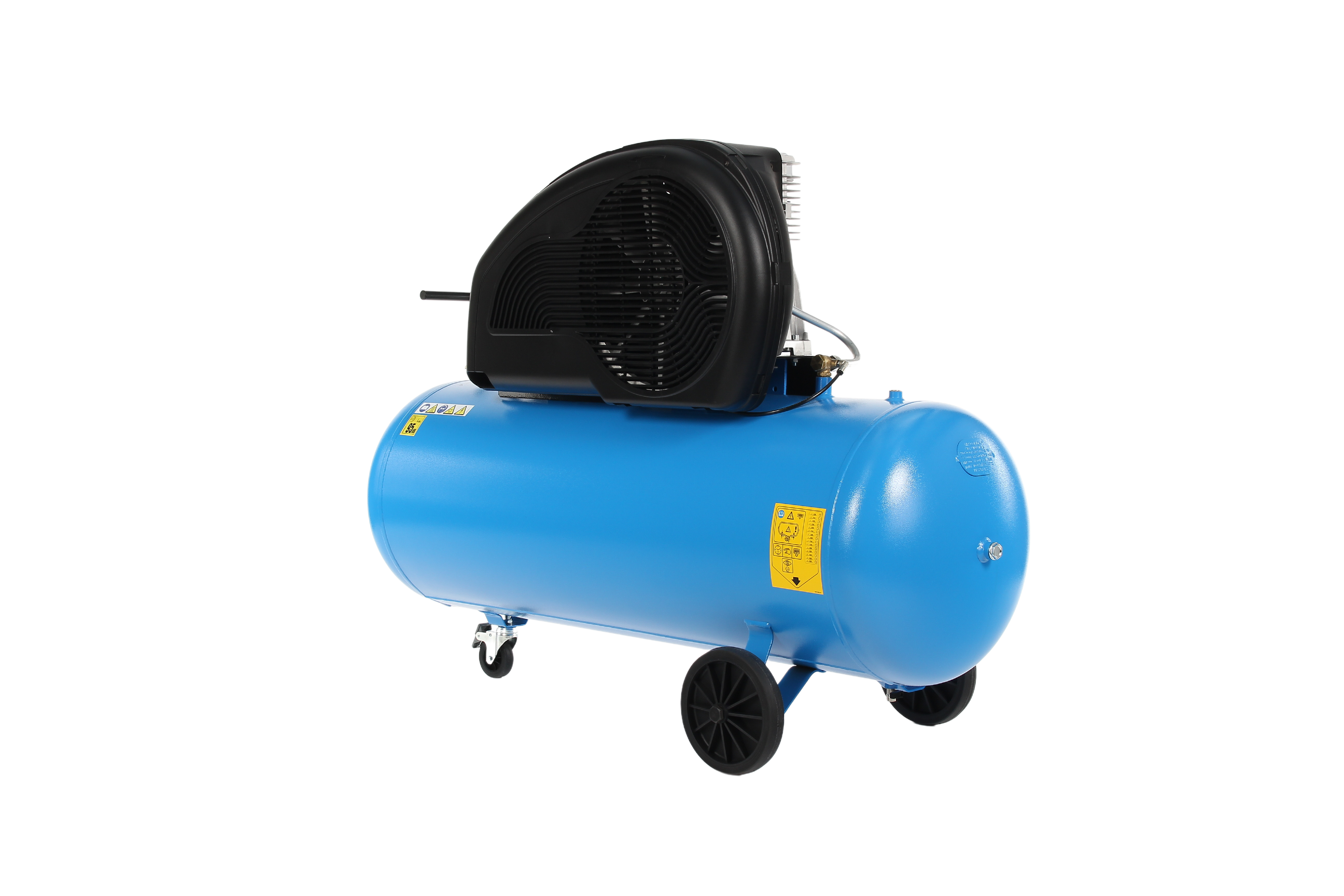

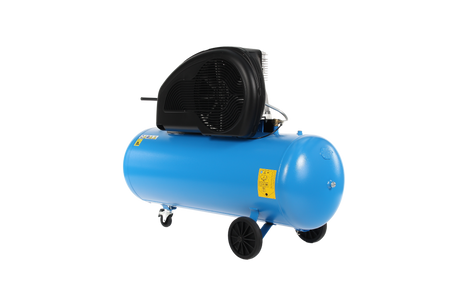

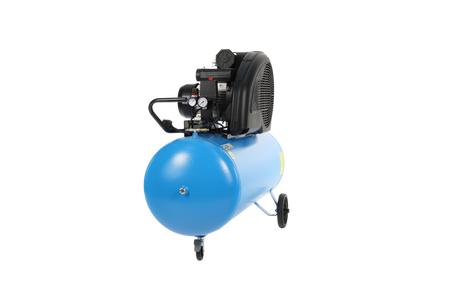

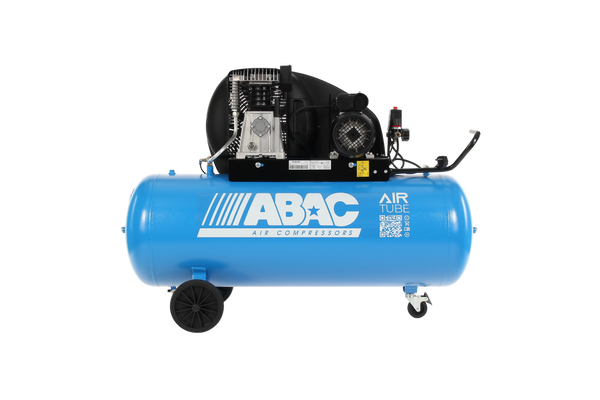

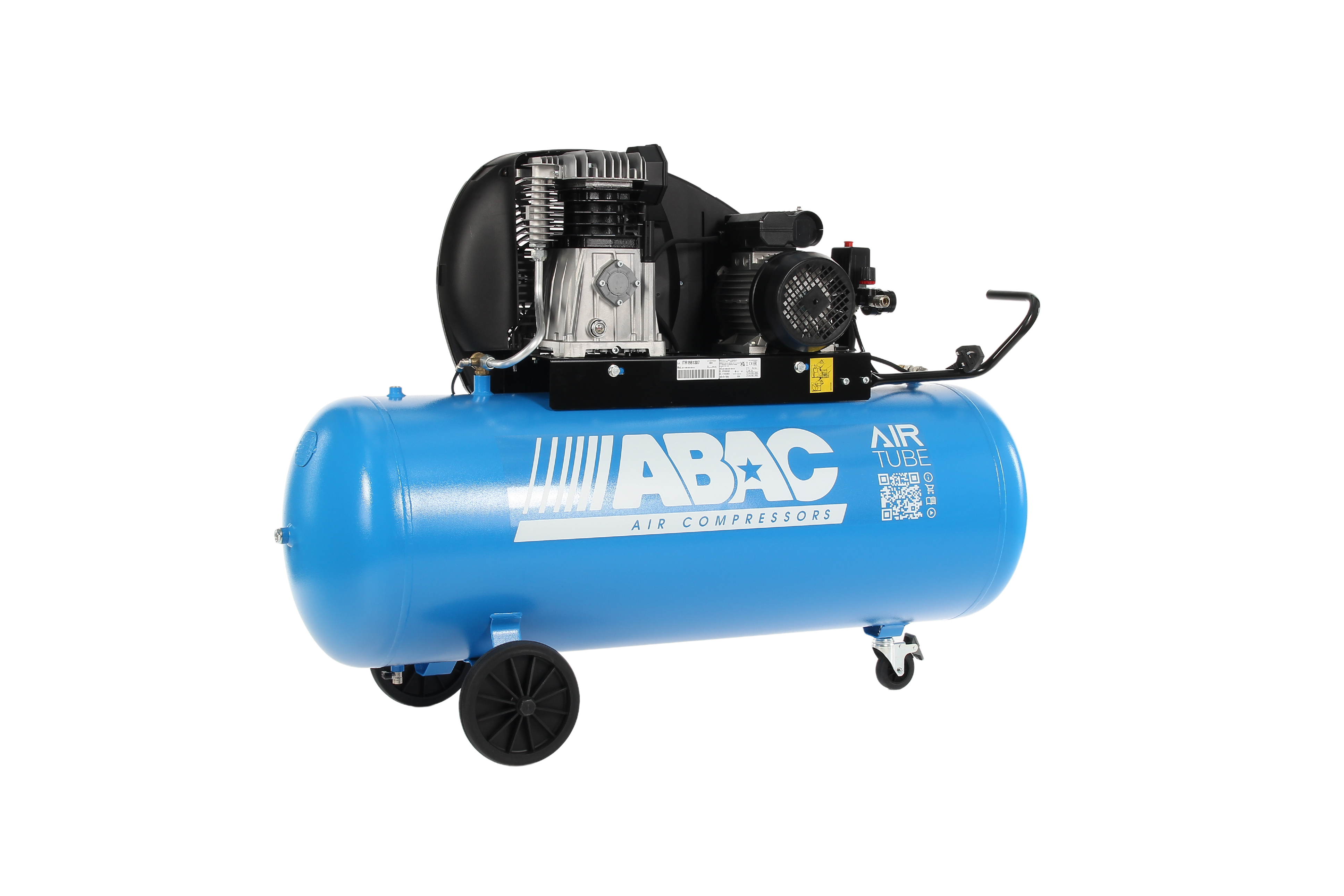

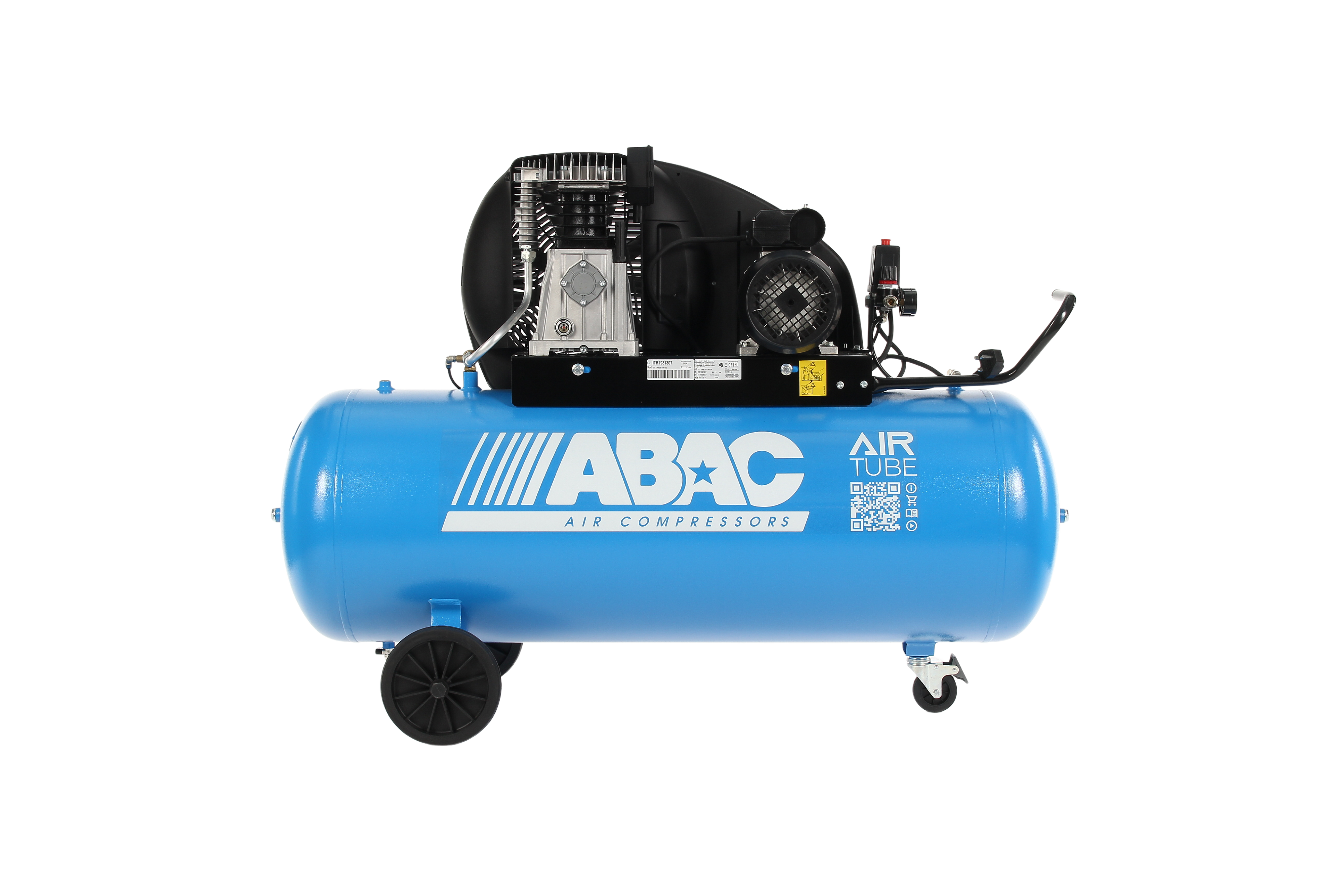

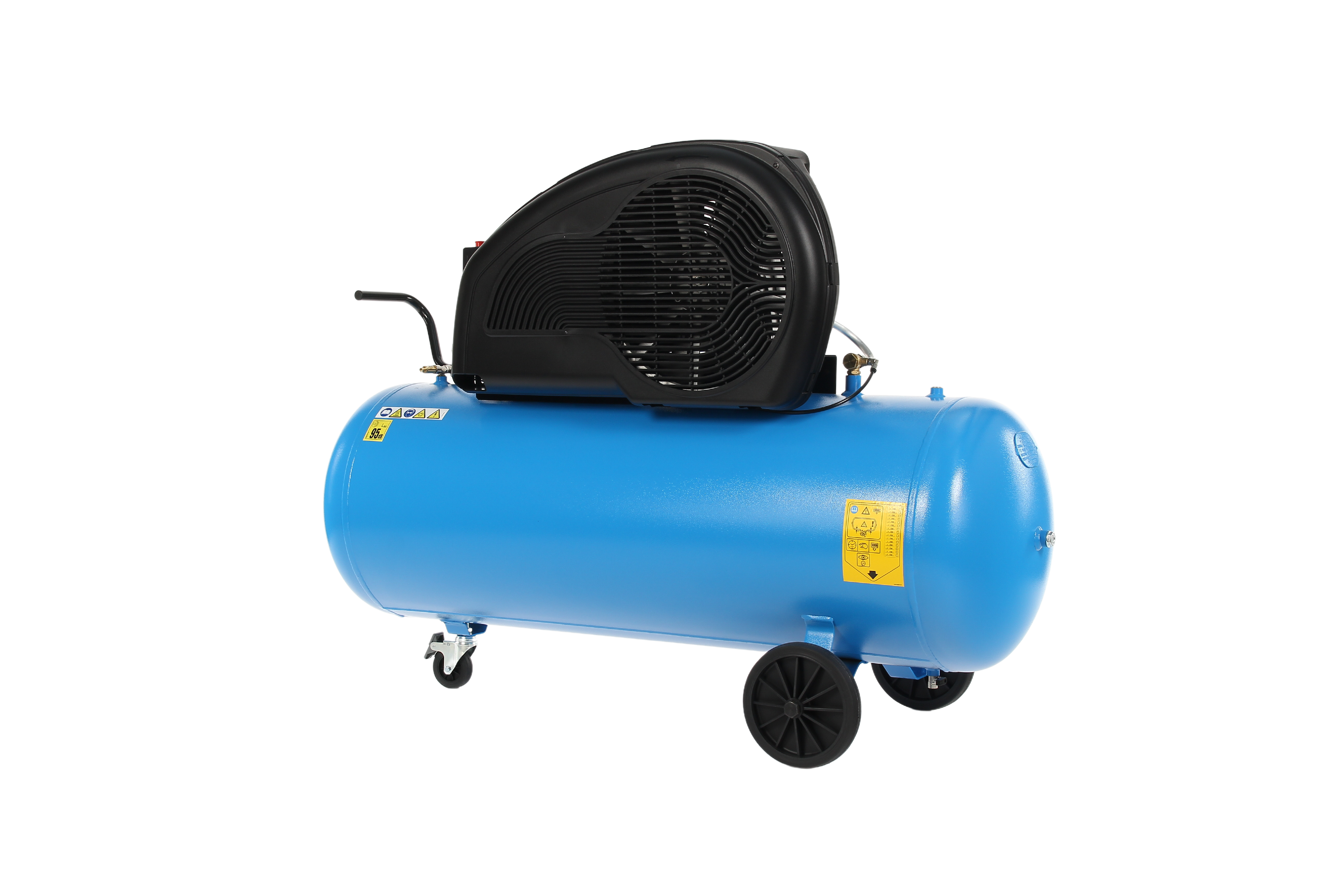

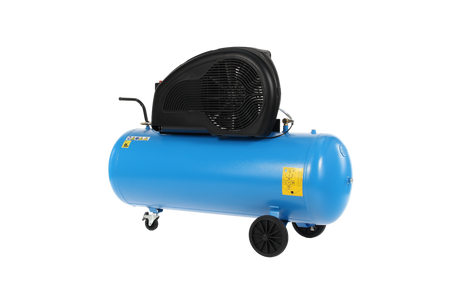

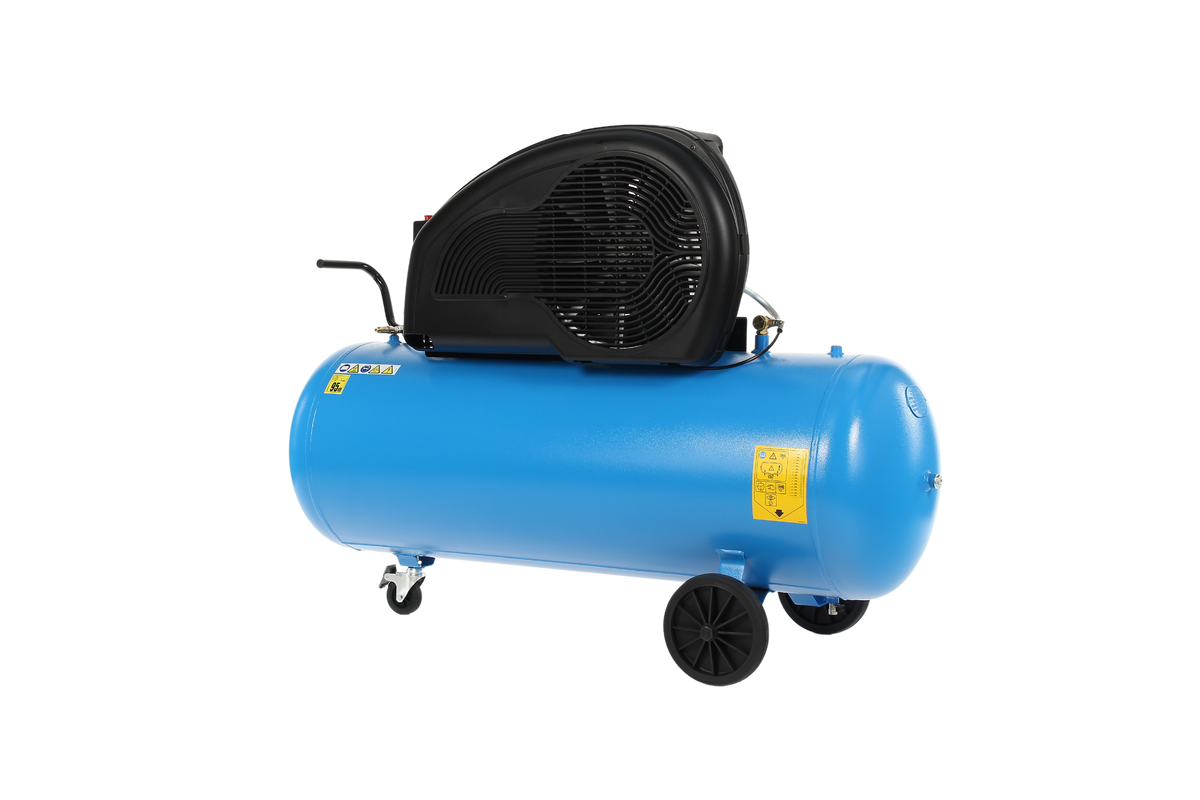

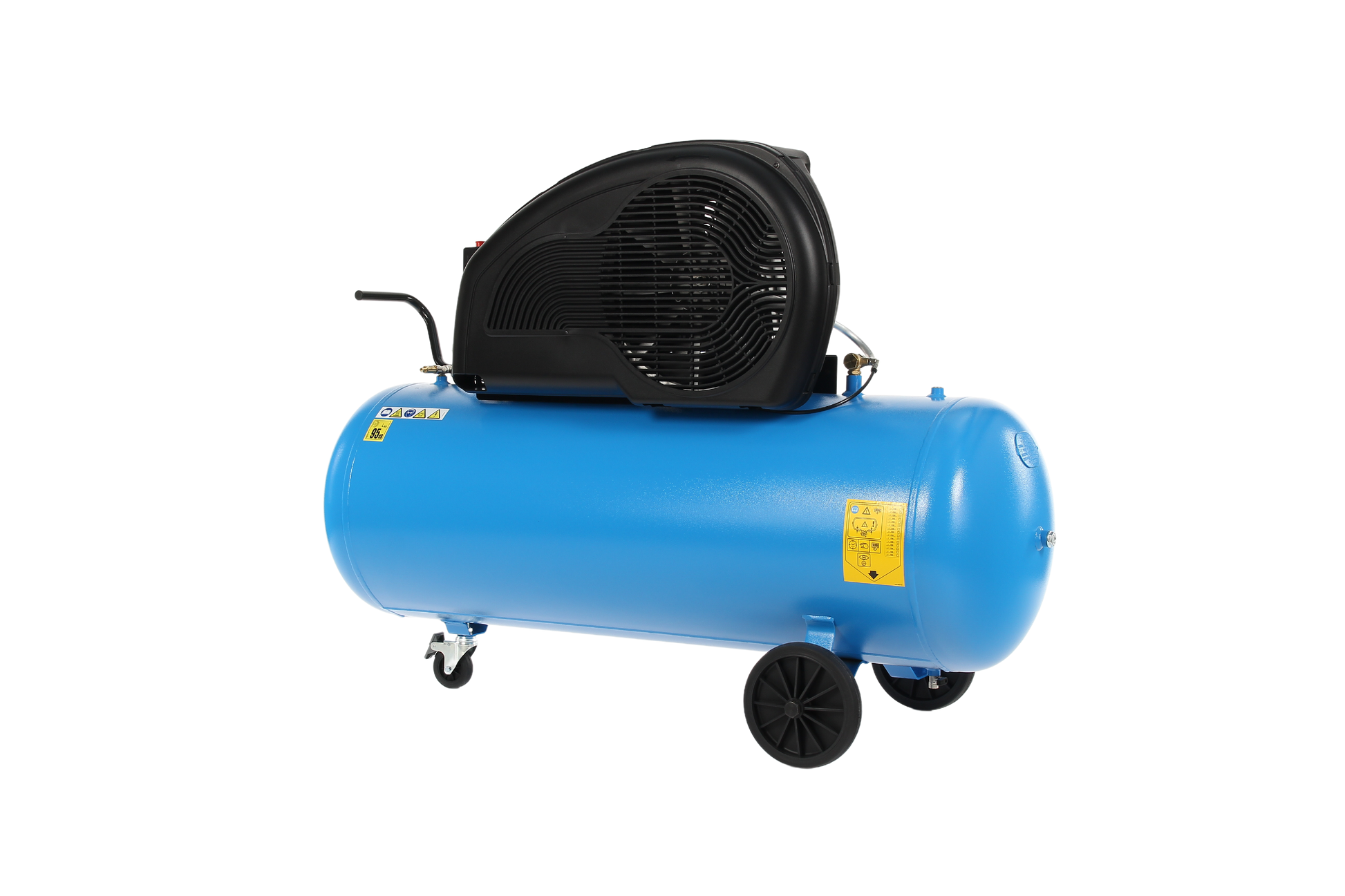

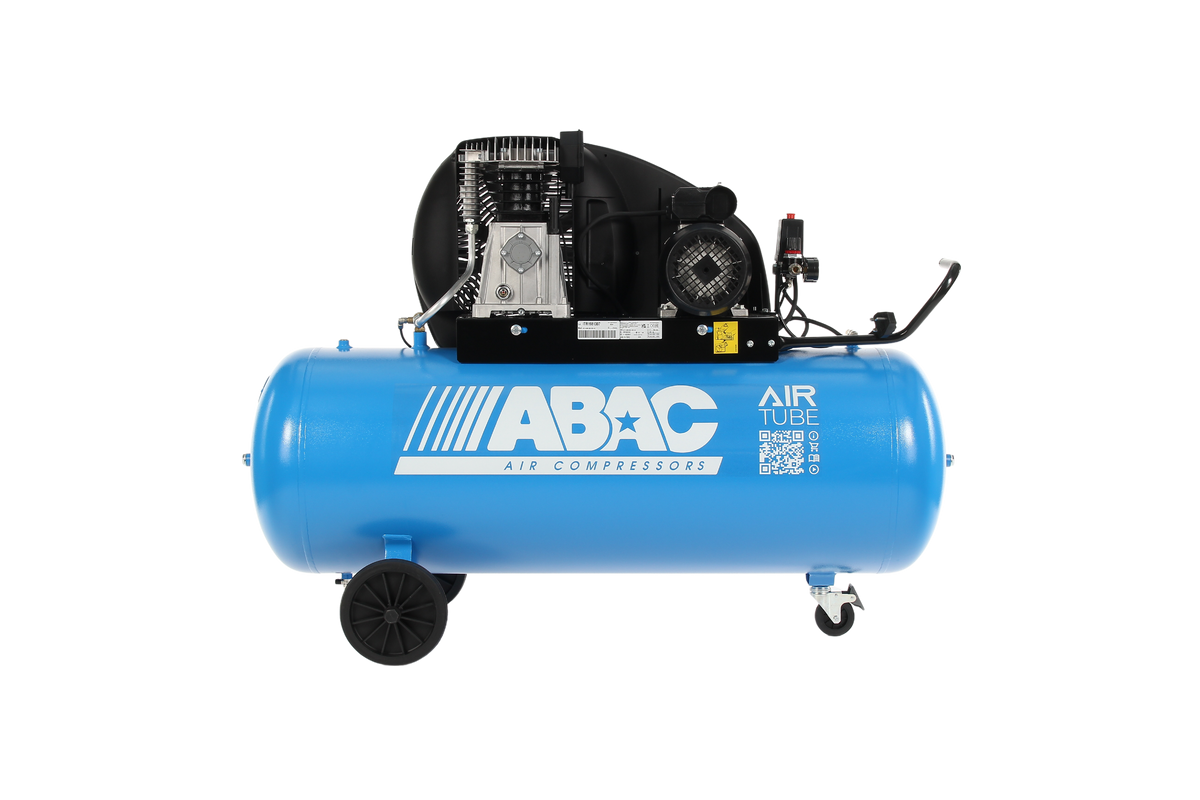

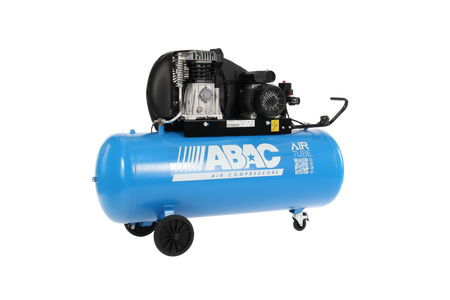

Introducing the ABAC Extensive EXT A39B 200 CM3 UK Belt Drive Compressor (4116028557), a powerhouse designed for demanding industrial and professional applications. Engineered with ABAC’s meticulous attention to performance and value, this compressor features a robust belt-driven system and a large 200-litre tank, delivering reliable and efficient air compression for heavy-duty tasks. With a 3 HP (2.2 kW) motor and a maximum pressure of 10 bar (145 PSI), it’s perfect for automotive, woodworking, manufacturing, and more.

The Extensive range is crafted to meet diverse market needs, offering versatility for professionals and advanced hobbyists alike. Equipped with 200mm robust rear wheels, a lockable front swivel wheel, and an ergonomic handle, this portable compressor ensures excellent stability and easy mobility. Supplied with a fitted plug and regulator with a Euro Coupling Push-Fit connection, it’s ready to use straight out of the box. The lubricated A39B pump unit with cast iron cylinders and a low 1050 RPM operation ensures long-lasting durability, low noise, and smooth performance.

Key Features

• Powerful Performance: 3 HP (2.2 kW) motor with 393 L/min air intake and 10 bar maximum pressure for demanding applications.

• Large 200L Tank: Provides ample compressed air storage for continuous operation in workshops and industrial settings.

• Durable Belt Drive System: Operates at 1050 RPM for reduced wear, lower noise, and extended compressor lifespan.

• Portable Design: Features 200mm rear wheels, a lockable front swivel wheel, and a sturdy handle for easy transport.

• Lubricated A39B Pump: Cast iron cylinders and cooling manifold ensure longevity and efficient operation.

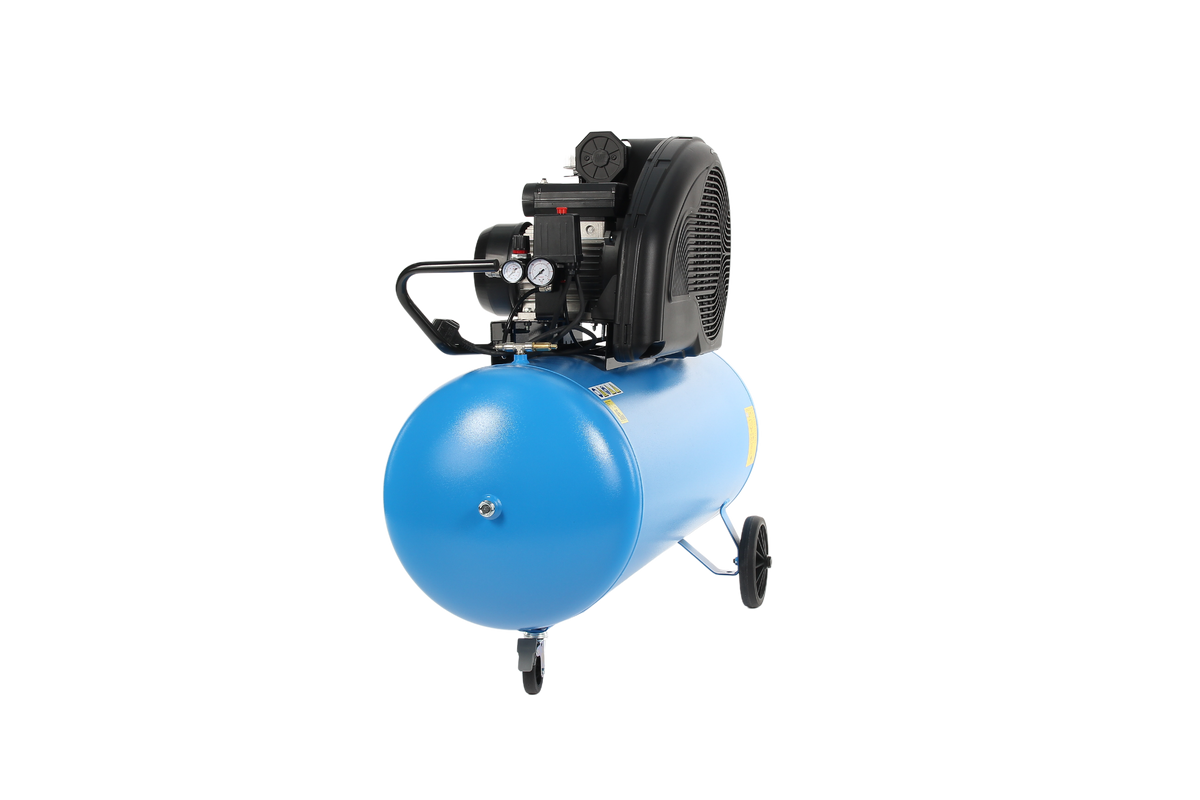

• User-Friendly Controls: Includes internal and outlet pressure gauges, a pressure-regulating knob, and a quick-release Euro Coupling.

• Quiet Operation: Sound pressure level of 75 dB (LPA) for a relatively quiet workspace.

• Efficient Cooling: Aftercoolers maintain lower operating temperatures for consistent performance.

Technical Specifications

• Model: ABAC Extensive EXT A39B 200 CM3 UK (4116028557)

• Motor Power: 3 HP (2.2 kW)

• Tank Capacity: 200 Litres

• Max Pressure: 10 Bar (145 PSI)

• Air Intake: 393 L/min (13.3 CFM)

• RPM: 1050

• Voltage: 230V, Single Phase, 50 Hz

• Lubrication: Oil-Lubricated

• Pump Type: A39B Single-Stage with Cast Iron Cylinders

• Weight: 115 kg

• Noise Level: 75 dB (LPA) / 95 dB (LWA)

• Dimensions: Designed for stability and easy storage

• Connection: Euro Coupling Push-Fit
