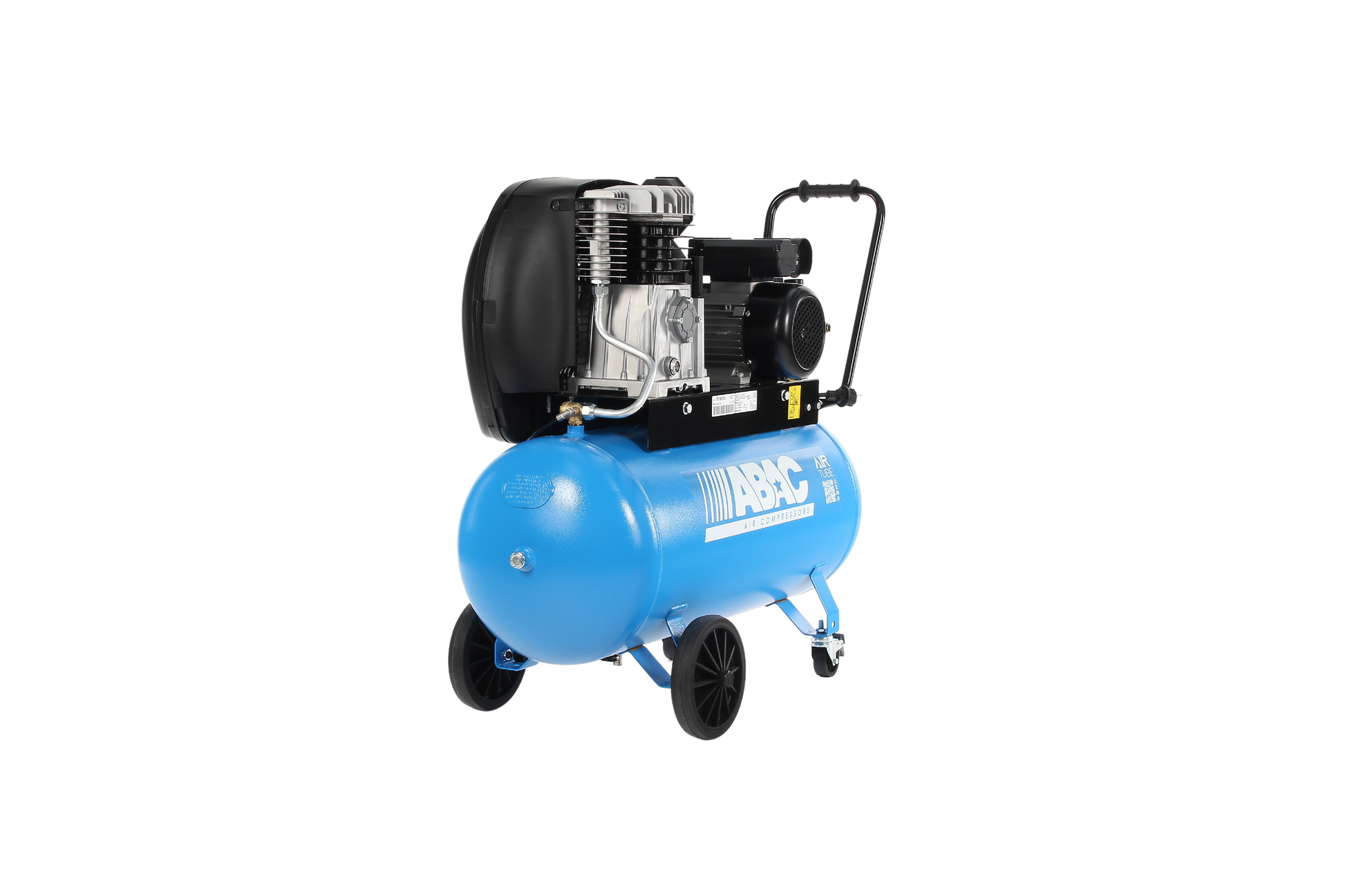

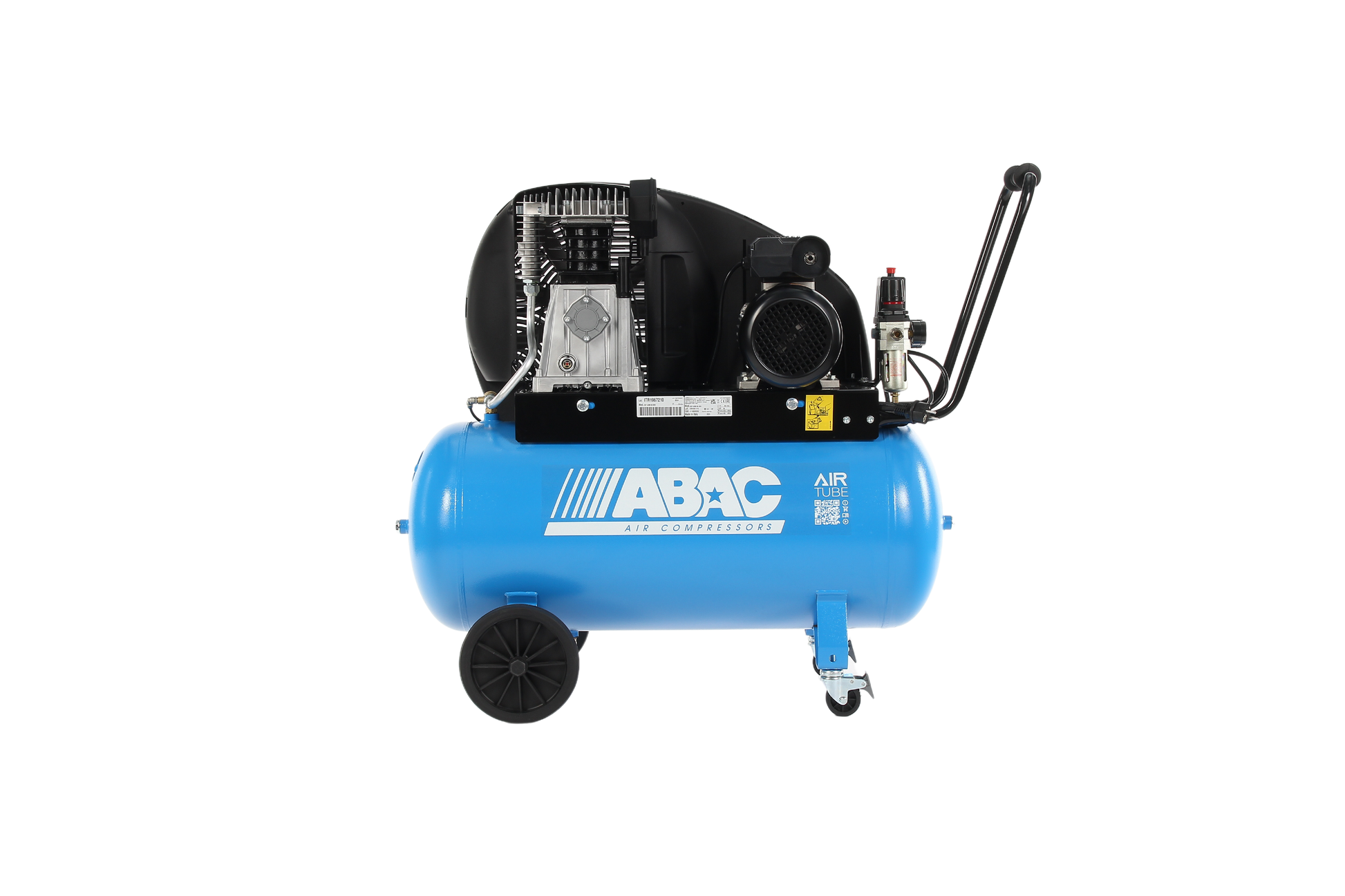

Introducing the ABAC Expert EXP A39B 90 CT3 UK Belt Drive Compressor - 4116028202. Designed with precision and durability, this compressor boasts impressive power and efficiency for all your pneumatic needs.
With a belt drive system, it offers quiet operation and extended lifespan. Invest in the best for maximum performance.
Options to be used as a stationary or portable compressor. Supplied with plug attached and filter/regulator with Euro Coupling Push-Fit connection.
| Specification | Value |
|---|---|
| Max Pressure (bar) | 10 Bar |
| Vessel size (lt) | 90 Liter |
| Vessel Size (gal) | 19.8 Gal |
| Configuration | Tank Mounted |
| Air Displacement (l/min) | 393 l/min |
| Air Displacement (cfm) | 13.3227 Cfm |
| Lubrication | Oil Lubricated |
| Motor (hp) | 3 Hp |
| Motor (kw) | 2.2 kW |
| Supply voltage | 400 V |
| Frequency | 50 Hz |
| Number of phases | 3 |
