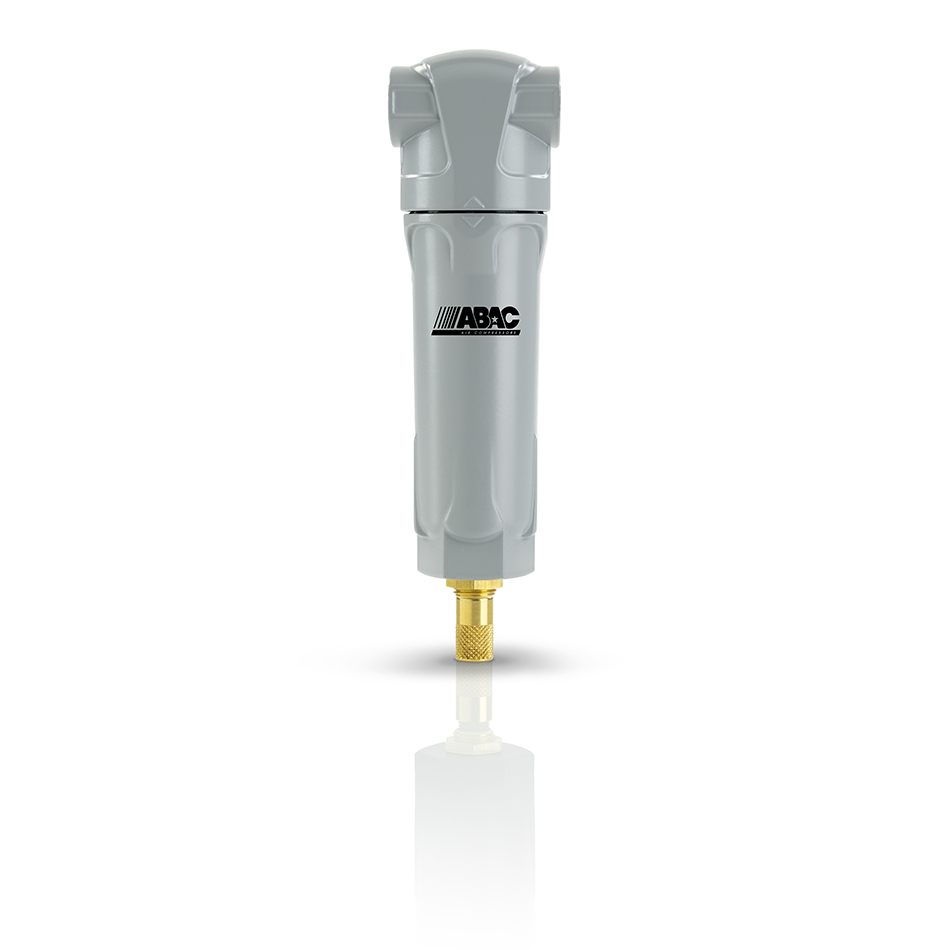

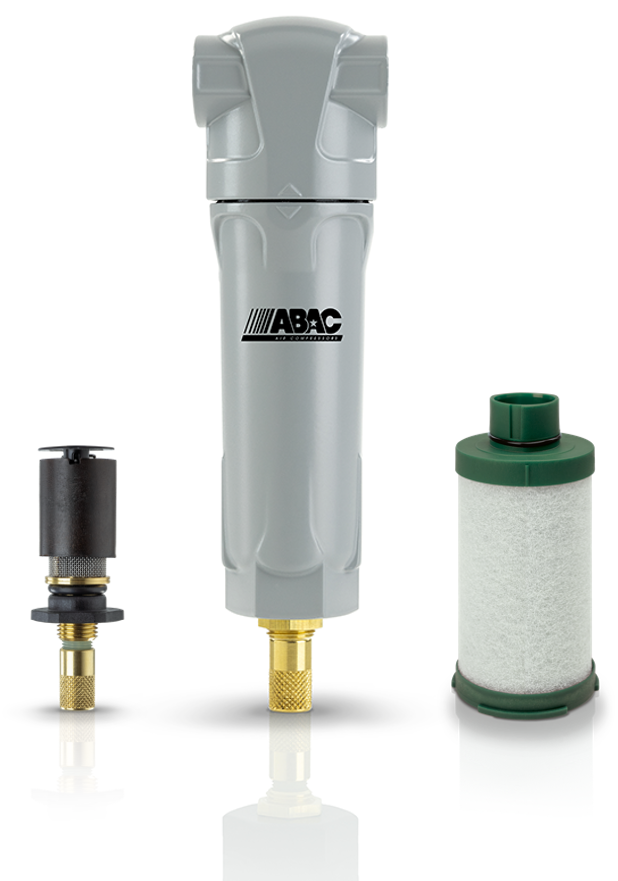

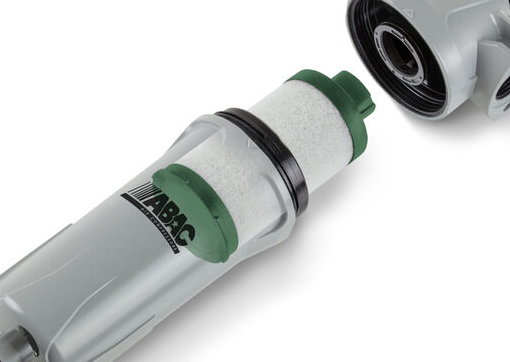

The ABAC Compressed Air Pre Filter 476 is a high-quality filter designed for industrial use. Its 1 1/4" BSP connection and 280 CFM flow rate make it ideal for heavy-duty air compressors.
With this filter, you can ensure clean and efficient air flow, reducing maintenance costs and improving overall productivity.
Technical Details
| Specification | Value |
|---|---|
| Precede with | n.a. |
| Total mass efficiency | n.a. |

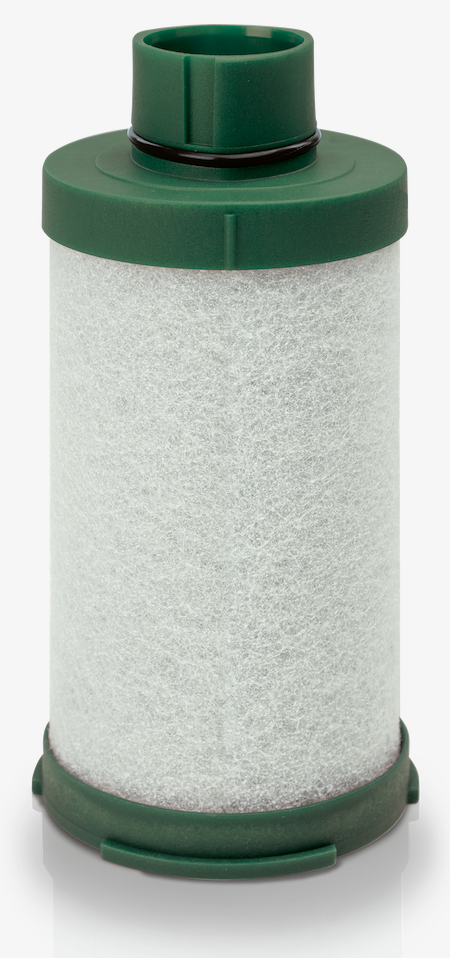

| Lifetime information | Element Change Recommendation: After 8,000 hours or 1 year |
| Max pressure | 232 PSI |
| Nominal capacity | 2940 lmin |
| Size port | 1 1/4” In |
| Lifetime disclaimer | n.a. |
| Filter grade | FP |
| Nominal capacity | 280 Cfm |
| Model Type | FP 178 |
| Model size | Size 8 |
| Max pressure (Bar) | 16 Pressure |
| Particle removal (Micron) | 5 micron Particles |
| Outlet oil aerosol concentration | -1mg/m³ Oil Outlet |
| Nominal capacity | 178 M3h |
