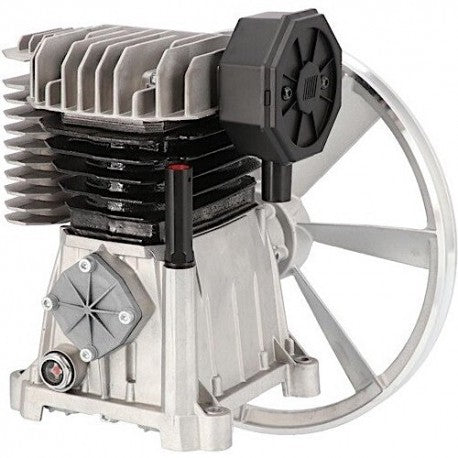

ABAC A29B PAT24 Gray Air Compressor Replacement Pump - 4116090646

The ABAC A29B PAT24 Gray Air Compressor Replacement Pump (Part No. 4116090646) is a genuine OEM component designed for ABAC belt-driven piston compressors. This single-stage, two-cylinder pump is engineered for durability and efficient performance, making it an ideal replacement for maintaining your compressor’s optimal functionality.

• Model: A29B PAT24

• Part Number: 4116090646

• Type: Single-stage, belt-driven

• Cylinders: 2

• Maximum Pressure: 11 bar

• Recommended Motor Power: 2–3 HP (1.5–2.2 kW)

• Rotation Speed: 1075–1300 RPM

• Air Intake Capacity: 255–320 l/min

• Features:

  • Die-cast aluminum heads with large cooling fins for enhanced heat dissipation

  • Oversized oil sump for improved lubrication

  • High-resistance valve plates for extended durability

  • Includes air filter and flywheel

Note: The pump is supplied without oil; ensure to fill it with the appropriate compressor oil before operation.
